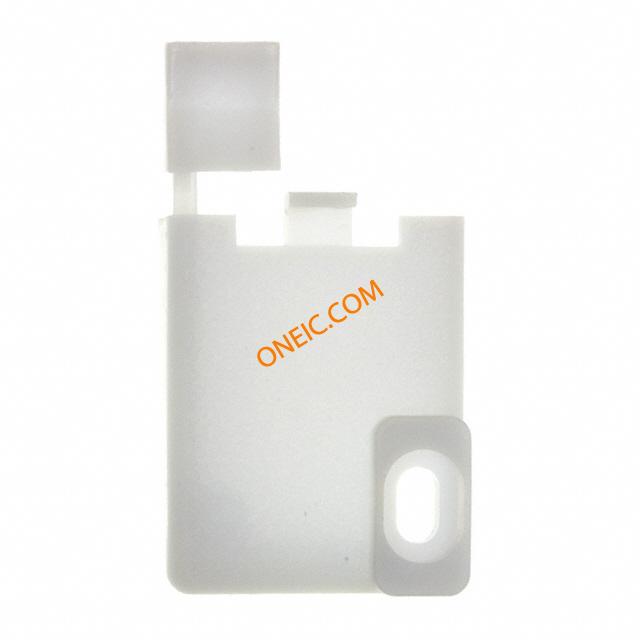

1-640722-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 9 POS Strain Relief Nylon Natural Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 9POS Strain relief,plug or cap,matrix,9W,Nat Power to the Board 9PIN STRAIN RELIEF Connector Accessories 9 POS Strain Relief Nylon Natural Product Highlights:Strain ReliefUniversal MATE-N-LOKNylon Housing MaterialColor = NaturalNumber of Circuits = 9Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, MATE-N-LOK, 9WAY U-M-N-LACCESSORIES,09PUMNLSTR/REL&INSRTNATL TE Connectivity 1-640722 9路 应力释放支架, 使用于 6 和 8 电路直插式适合插头外壳 09P UMNL STR/REL & INSRT NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 连接器类型 - 电压输入 | Universal MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 重量 | 0.004 |
| 线径 | 3.05 â 16.51 [0.120 â 0.650] | 安装样式 | Snap In |
| 供货尺寸 | Yes | 壳体材料 | Nylon |
| 总长度 | 26.16 mm | 主要材料 | Interconnect |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 9 | 位数 | 9 |
| 绝缘材料 - 材质 | :Nylon (Polyamide) | 典型触点布局 | Matrix |
产品信息
| 备注 | Strain relief part number represents one half of a strain relief. Two of a part | 类型 | Strain Relief |
| 系列 | Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Strain Relief |
| 附件类型 | Strain Relief | 电路数 | 9 |
| 射频系列/标准 | 640722 | 适用产品/相关产品 | Universal MATE-N-LOK Series |
