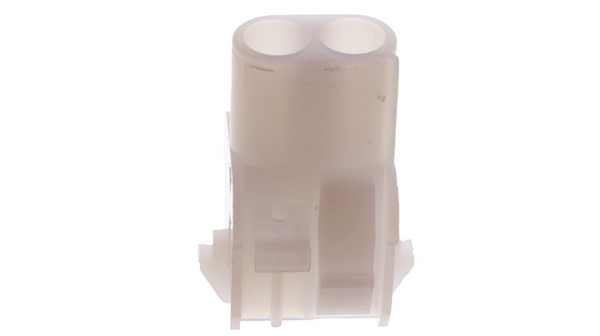

1-480699-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 2POS 94V-2 UNI-MATE Pin & Socket Connectors CAP HOUSE 2 POS Conn Housing RCP 2 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, SINGLE ROW, 2 WAY Connector,SoftShell;UniversalMATE-N-LOK;2;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:2; 600V Receptacle housing Pitch6.35 mm Poles 2 Single row / for panel mount MATE-N-LOK Universal, 1-480699-0, TE Connectivity 02P UMNL CAP HSG NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 认证机构 | :CSA, UL, VDE |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | 600 V | 工作电压 | :600V |
| 接触电阻 | :3.5mohm | 介电强度 | :5000V |
| 最大额定电流 | 19 A | 绝缘电阻 | :1000Mohm |
| 最小输入电压 | 600VAC | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Natural | 深度 | 27.43 mm |
| 间距 | 6.35 mm | 重量 | 0.002 |
| 材料（通用） | :Nylon | 包装方式 | Loose Piece |
| 导线线规 | 10-30 AWG | 触头类型 | Male or Female |
| 柱间距 | 6.35mm | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging, Panel |
| 排数 | 1 | 面板厚度 | :2.29mm |
| 壳体材料 | Nylon | 包装数量 | 1 |
| 连接器 - 电缆 | socket | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Clear |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 第一连接器安装特征 | 1x2 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Universal Mate-N-Lok | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 1 |
| 适用产品/相关产品 | :Universal MATE-N-LOK Connectors | ||
环境参数
| 插拔次数 | :50 | 工作温度 | -55C to 125C |
