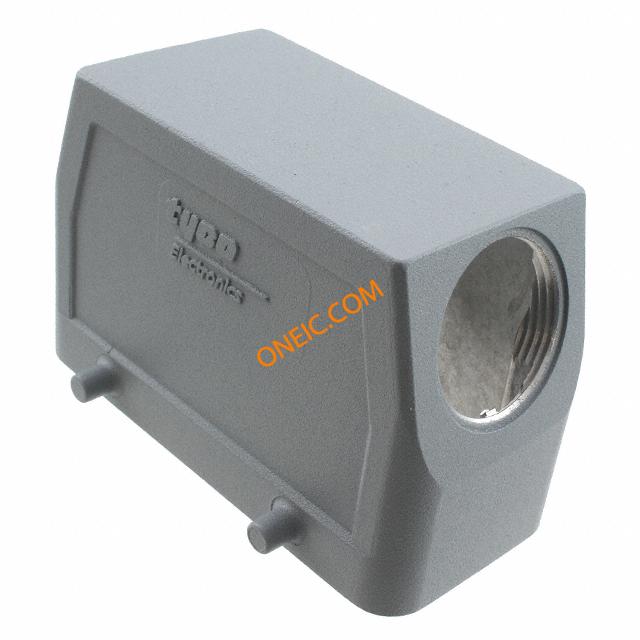

1-1102292-6

点击放大查看

1-1102292-6

制造商
TE Connectivity Ltd.
描述Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece HTS Connectors and Accessories HB.16.STS.1.21.G Heavy Duty Power Connectors HOUSING SZ 6 PG21 HB.16.STS.1.21.G Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Product Highlights:HB SeriesHoodProduct Size = 6Dimensions (L x H x W) = 93.5 x 60.0 x 43.0 mmLocking Device Type = Locking Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 Enclosure: for HTS connectors; HTS; size 6; PG21; for cable
分类
连接器解决方案重载连接器重载连接器（扩展）

商业参数

产品类别Heavy Duty Power Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

频率Locking Clip on Base Bottom

机械参数

尺寸6颜色灰色
宽度43 mm [ 1.69 in ]表面处理Silver Gray
高度60 mm [ 2.36 in ]长度93.5 mm [ 3.68 in ]
重量0.17 kg材料（通用）Die Cast Aluminum
锁定类型壳体底部包装方式Bulk
方向angled螺纹尺寸PG21
外壳表面处理Powder Coated外壳颜色Gray
衬套螺纹PG21连接器类型Hood
外壳涂层Powder Coated安装样式for cable
封装形式size 6连接器样式Side
锁定特性Locking Clip at Housing Bottom壳体材料Aluminum Alloy, Die Cast
包装数量Loose Piece尺寸/外形3.680" L x 1.693" W x 2.360" H (93.50mm x 43.00mm x 60.00mm)
外壳尺寸-插件是总体尺寸93.5 x 60.0 x 43.0 [3.68 x 2.36 x 1.69]
AC输出连接器侧外部壳体颜色Gray
供应商器件封装for HTS connectors外壳与棱镜材料aluminium alloy

产品信息

SPG5类型Hood
样式Side Entry系列HB
产品子类型Hood锁定位置Locking Clip on Base Bottom
附件类型护罩适配器系列HTS
单元数量1射频系列/标准1102292

环境参数

液体防护No防护等级IP65 - Dust Tight, Water Resistant
耐磨防护否
