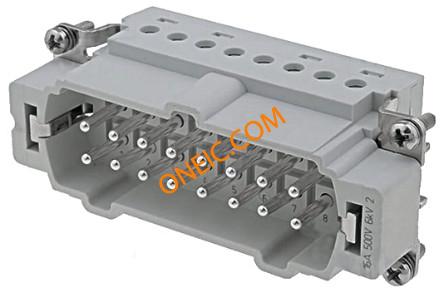

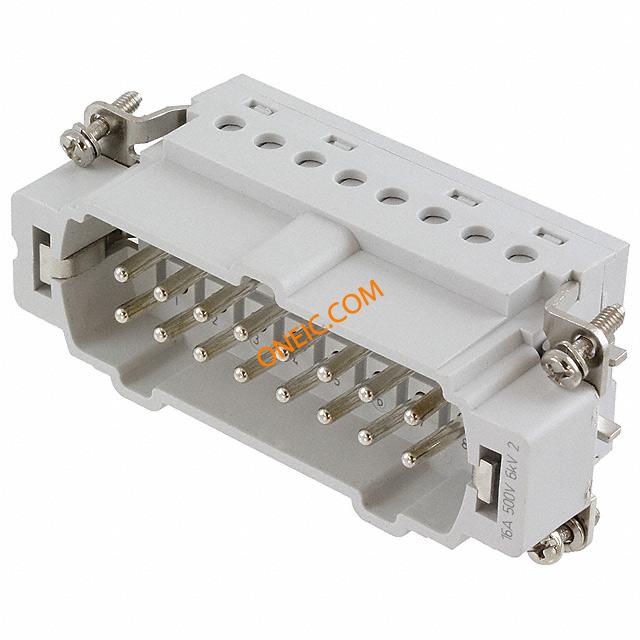

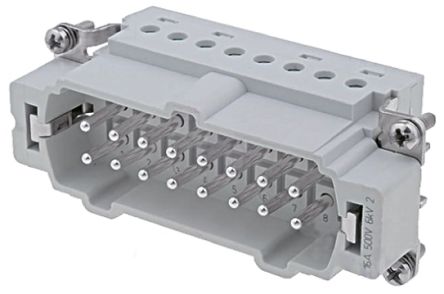

7-1103638-1

点击放大查看

7-1103638-1

制造商
TE Connectivity Ltd.
描述Conn Heavy-Duty Rectangular PIN 16Signal/1Ground POS Screw ST Panel Mount Carton CONN INSERT PIN SZ6 16POS CLAMP HD Connector Insert HE16 male clamp Heavy Duty Power Connectors HE.16.STI.SC.B1-16 Conn Heavy-Duty Rectangular PIN 16Signal/1Ground POS Screw ST Panel Mount Carton Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 Connector: HTS; male; HTS HE; PIN:16; 16+PE; size 6; 16A; 400V sale Connector: HTS; male; HTS HE; PIN:16; 16+PE; size 6; 16A; 400V TE Connectivity HE 系列 16针 16P+E极 插头 电源连接器 HE.16.STI.SC.B1-16
分类
连接器解决方案重载连接器重载连接器

商业参数

交货时间73 Days子类别Connector Rectangular
产品类别Heavy Duty Power Connectors标准包装数量Bulk
工厂包装数量5

合规参数

RoHSLead free / RoHS Compliant标准CSA, DIN VDE 0110, DIN VDE 0627, SEV, UL
材料阻燃等级UL94 V-0

电气参数

额定电压400V极数16+PE
供电电压400最大额定电流16A
最小供电电压400V

机械参数

尺寸6颜色Gray
深度34 mm高度33 mm
重量0.11 kg材料（通用）thermoplastic
钻孔直径77.5mm包装方式Carton
端接方式Screw安装类型Panel Mount
连接器类型Insert接触镀层Silver
安装样式Panel封装形式size 6
插入件材料插针触头材料Iron/Copper Nickel
壳体材料Polycarbonate (PC), Glass Filled总长度83.5 mm
包装数量5尺寸/外形see
端接样式Tension Clamp外径84.5mm
触点数16Signal/1Ground横截面形状0.5...2.5mm2
位数16+Ground外壳尺寸-插件否
衬套/护套类型不带小外径27mm
触点材料 - 镀层silver plated第一连接器安装特征16+PE

产品信息

SPG5类型Heavy-Duty Rectangular
连接器性别PL系列Han E
极性16P+E极数格式16P+E
产品子类型插入件附件类型Contact
适配器系列HTS HE单元数量1
其他规格33mm适用产品/相关产品Machined Crimp Contact

环境参数

工作温度-40°C ~ 125°C
