点击放大查看

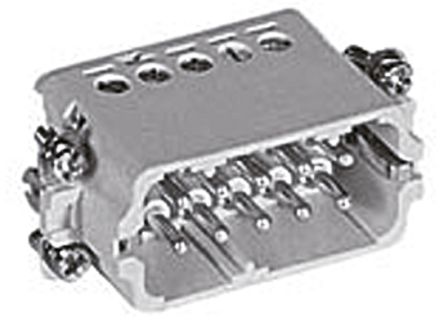

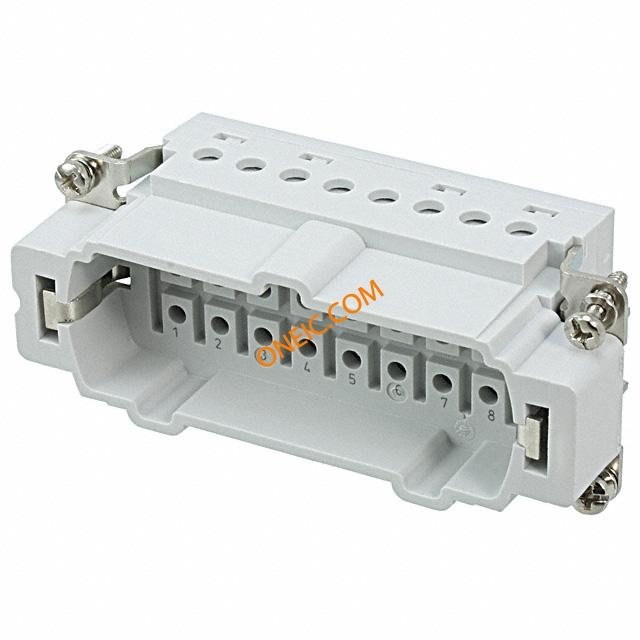

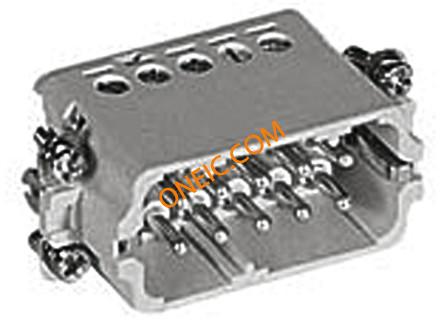

2-1103638-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Rectangular M 16Signal/1Ground POS Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories HE.16.STI.C.B 1-16 HD Connector, Insert HE16 male Heavy Duty Power Connectors PIN INSERT 16+PE HE.16 SIZE 6 Conn Rectangular M 16Signal/1Ground POS Crimp ST Cable Mount Loose Piece Product Highlights:HE.16 SeriesInsertProduct Size = 6Contact Type = Crimp TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, HE.16, CRIMP, PIN HDConnector,InsertHE16male TE Connectivity HE 系列 16针 16P+E极 插头 电源连接器外壳 |
| 分类 |
商业参数
| 交货时间 | 59 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 400V | 最大额定电流 | 16A |
| 最小供电电压 | 400V | ||
机械参数
| 尺寸 | 6 | 颜色 | Gray |
| 深度 | 34 mm | 高度 | 33 mm |
| 重量 | 0.05 | 包装方式 | Loose Piece |
| 端接方式 | Crimp | 触头类型 | HE/HA |
| 安装类型 | Cable Mount | 连接器类型 | Insert without Contacts |
| 安装样式 | Cable | 排数 | :2 |
| 插入件材料 | :Power | 插入力 | Male |
| 壳体材料 | Polycarbonate (PC), Glass Filled | 总长度 | 83.5 mm |
| 主要材料 | Contact | 端接样式 | Crimp |
| 触点数 | 16Signal/1Ground | 位数 | 16+Ground |
| 外壳尺寸-插件 | :6 | ||
产品信息
| 类型 | Rectangular | 连接器性别 | PL |
| 系列 | Han E | 极数格式 | 16P+E |
| 制造商全称 | HanESeries | 产品子类型 | Inserts |
| 附件类型 | Contact | 适用产品/相关产品 | Stamped Crimp Contact |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
