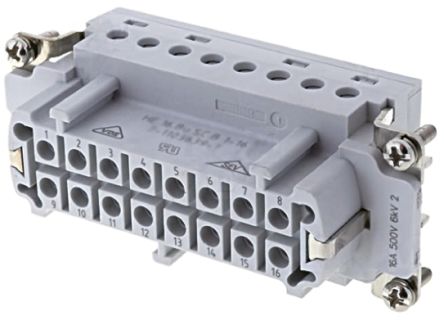

2-1103639-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Heavy-Duty Rectangular F 16Signal/1Ground POS Crimp ST Panel Mount Loose Piece HTS Connectors and Accessories CONN INSERT FEMALE HE.16 SERIES HTS 17 2 Male Straight Heavy Duty Power Connector, Panel Mount 16A,400V Heavy Duty Power Connectors INSERT RECPT SIZE 6 HE.6 Conn Heavy-Duty Rectangular F 16Signal/1Ground POS Crimp ST Panel Mount Loose Piece Product Highlights:HE.16 SeriesInsertProduct Size = 6Contact Type = Crimp TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 TE Connectivity HD 系列 2行 17针 16P+E极 插头 电源连接器 , 面板安装 HE.16.BU.C.B 1-16 |
| 分类 |
商业参数
| 交货时间 | 59 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 400V | 极数 | 16+PE |
| 供电电压 | 400 | 最大额定电流 | 16A |
| 最小供电电压 | 400V | ||
机械参数
| 尺寸 | 6 | 颜色 | Gray |
| 深度 | 33 mm | 高度 | 34 mm |
| 包装方式 | Loose Piece | 方向 | 直 |
| 端接方式 | Crimp | 触头类型 | HE/HA |
| 安装类型 | Panel Mount | 连接器类型 | Insert without Contacts |
| 接触镀层 | Gold, Silver | 安装样式 | Panel |
| 排数 | 2 | 插入件材料 | 插座 |
| 触头材料 | Copper Nickel Alloy, Iron | 壳体材料 | Polycarbonate (PC), Glass Filled |
| 总长度 | 83.5 mm | 包装数量 | 5 |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 触点数 | 16Signal/1Ground | 位数 | 16+Ground |
| 外壳尺寸-插件 | 否 | 衬套/护套类型 | 不带 |
产品信息
| 备注 | 与 HTS 系列 HE/HA 接触件搭配使用 | 类型 | Heavy-Duty Rectangular |
| 连接器性别 | PL | 系列 | HTS |
| 极性 | 16P+E | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
1-1102649-5
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Heavy Duty Connectors CONN HOOD SIDE SZ6 PG21 HIP.16 Heavy Duty Power Connectors HIP.16/40.STS.1.21.
1-1102292-6
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece HTS Connectors and Accessories HB.16.STS.1.21.G Heavy Duty Power Connectors HOUSING SZ 6 PG21 HB.16.STS.1.21.G Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Product Highlights:HB SeriesHoodProduct Size = 6Dimensions (L x H x W) = 93.5 x 60.0 x 43.0 mmLocking Device Type = Locking Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 Enclosure: for HTS connectors; HTS; size 6; PG21; for cable
1-1102292-7
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece HTS Connectors and Accessories CONN HOOD SIDE HB SERIES SZ 6 Heavy Duty Power Connectors HOUSING SZ 6 PG21 HB.16.STS-GR.1.21.G Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HB.16.STS-GR.1.21.G
1-1102305-2
te connectivity / amp

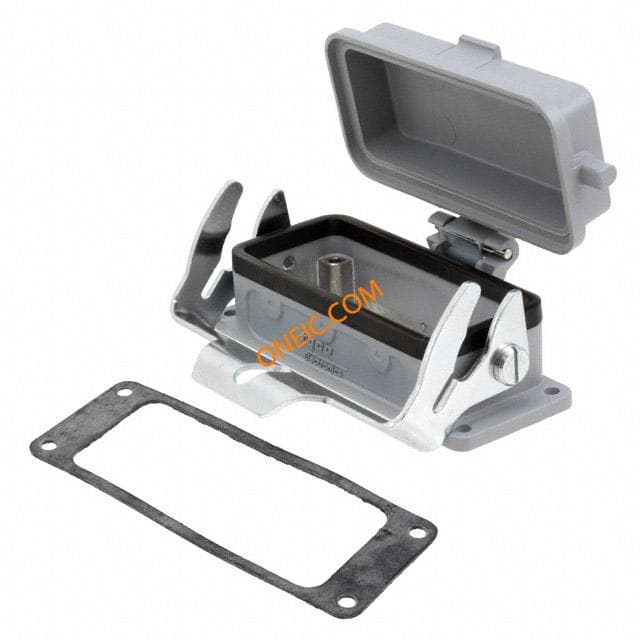

Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece HTS Connectors and Accessories CONN HOUSING W/CVR SZ6 HB Heavy Duty Power Connectors HB.16 HOUSING SIZE 6 Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece Product Highlights:HB SeriesHousingProduct Size = 6Dimensions (L x H x W) = 113.00 x 28.50 x 43.50 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HB.16.AGD-LB
