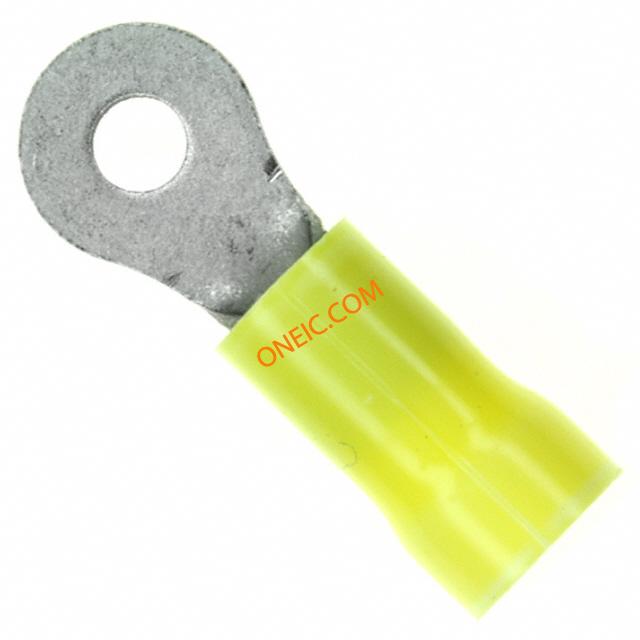

34168
| 制造商 | |
| 描述 | Ring Tongue Terminal 10-12AWG 27.89mm 9.52mm Tin Loose Piece Terminals RING TONGUE 12-10 SZ 6 Ring and Spade Tongue Terminals CONN RING 10-12 AWG #6 PL-GRIP Ring Tongue Terminal 10-12AWG 27.89mm 9.52mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #6, CRIMP, YELLOW TE Connectivity 系列, 黄色 绝缘 镀锡触芯 环形压接端子 , M3.5 (#6) 螺栓, 3.68mm内环直径, 27.89mm总长 TERMINAL,PG R 12-10 6 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | A28194 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 额定电压 | 600 VAC | 供电电压 | 600 |
机械参数
| 颜色 | Yellow | 深度 | 9.52 |
| 形状 | RING-043 | 表面处理 | Tin |
| 重量 | 0.00181 | 镀层 | Tin |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.040" (1.02mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 3.5 mm |
| 端子类型 | Circular | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Copper | 绝缘颜色 | :Yellow |
| 总长度 | 1.098" (27.89mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Insulation Support | 绝缘直径 | 3.81-5.84 [.150-.230] |
| 绝缘材料 - 类型 | Vinyl | 外缘宽度 | 0.375" (9.53mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 舌片内部开口 | 1.02 [0.040] |
| 供应商器件封装 | PLASTI-GRIP | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 类型 | Ring Tongue Terminal | 系列 | :Plasti-Grip |
| 产品特性 | Serrated Termination | 制造商全称 | AMP |
