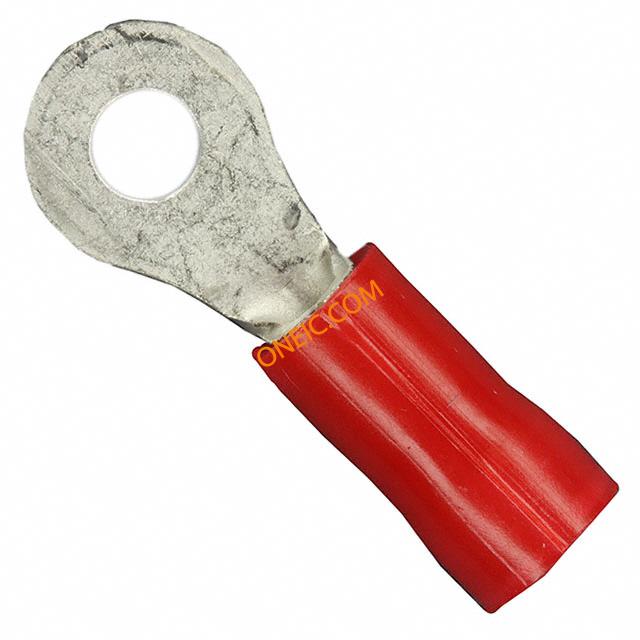

34143
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 16-22AWG 20.55mm 7.14mm Tin Loose Piece Terminals RING TONGUE 22-16 MIL 4 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #4 PL-GRIP Ring terminal, PLASTI-GRIP, red, M2.5 Ring Tongue Terminal 16-22AWG 20.55mm 7.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B Ringterminal,PLASTI-GRIP,red,M2.5 TE Connectivity PLASTI-GRIP 系列, 红色 绝缘 镀锡触芯 环形压接端子 , 2.84mm 螺栓, 3.02mm内环直径, 20.55mm总长 PG R 22-16 COMM 22-18 MIL 4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 最大电压 | 600 | 额定电压 | 600 VAC |
| 供电电压 | 600 | ||
机械参数
| 颜色 | Red | 深度 | 7.14 mm |
| 形状 | RING-043 | 表面处理 | Tin |
| 长度 | 20.55 mm | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 2.84mm |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 2.84 mm |
| 端子类型 | Circular | 电缆直径 | 1.65mm² |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Copper | 绝缘颜色 | 红色 |
| 总长度 | 0.809" (20.55mm) | 包装数量 | Loose Piece |
| 主要材料 | Ring | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 连接器颜色 | Red |
| 接触件尾部长度 | 0.84 [0.033] | 绝缘直径 | 3.56 [.140] Max. |
| 绝缘材料 - 类型 | Vinyl | 位数 | 1 |
| 外缘宽度 | 0.281" (7.14mm) | 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) |
| 舌片内部开口 | .84 mm [ .033 in ] | 螺纹/螺钉/孔尺寸 | 2.84mm |
| 供应商器件封装 | PLASTI-GRIP | 支撑面板厚度 | Insulation Support |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
| 外管直径（最大） | 7.14mm | 外径-未扩张 | 3.56 mm [ .14 in ] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | PLASTI-GRIP | 产品特性 | Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | 其他规格 | 3.02mm |
环境参数
| 温度范围 | 90 | 工作温度 | + 90 C |
