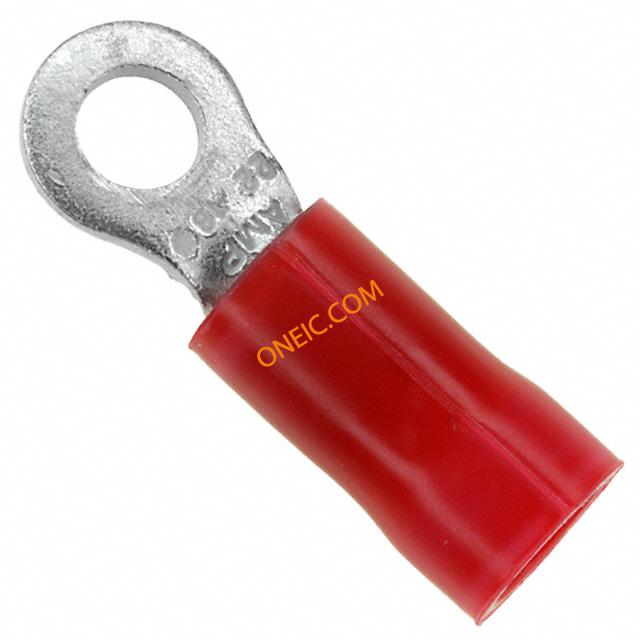

34141
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 16-22AWG 17.37mm 5.54mm Tin Loose Piece Terminals RING 22-16AWG STUD 4 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #4 PL-GRIP Ring terminal, PLASTI-GRIP, red, M2.5 Ring Tongue Terminal 16-22AWG 17.37mm 5.54mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING, 22-16AWG PGR22-16COMM22-18MIL4 TE Connectivity PLASTI-GRIP 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M2.5 螺栓, 3.02mm内环直径, 17.37mm总长 PG R 22-16 COMM 22-18 MIL 4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | A0955 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 600 VAC | 供电电压 | 600 |
机械参数
| 颜色 | Red | 形状 | RING-043 |
| 表面处理 | Tin | 重量 | 0.001 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.031" (0.79mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 4 | 导线线规 | 16-22 AWG |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 2.84 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.218" |
| 触头材料 | Copper | 绝缘颜色 | :Red |
| 总长度 | 0.684" (17.37mm) | 包装数量 | Loose Piece |
| 主要材料 | Ring | 绝缘高度 | Insulation Support |
| 连接器颜色 | Red | 接触件尾部长度 | 0.84 [0.033] |
| 绝缘直径 | 3.56 [.140] Max. | 绝缘材料 - 类型 | Vinyl |
| 外缘宽度 | 0.218" (5.54mm) | 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) |
| 供应商器件封装 | PLASTI-GRIP | 线规或范围 - AWG | 509 â 3,260 |
| 线规或范围 - mm² | 0.30-1.40² [22-16] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 141 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
