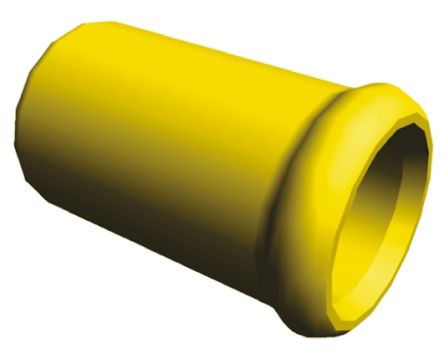

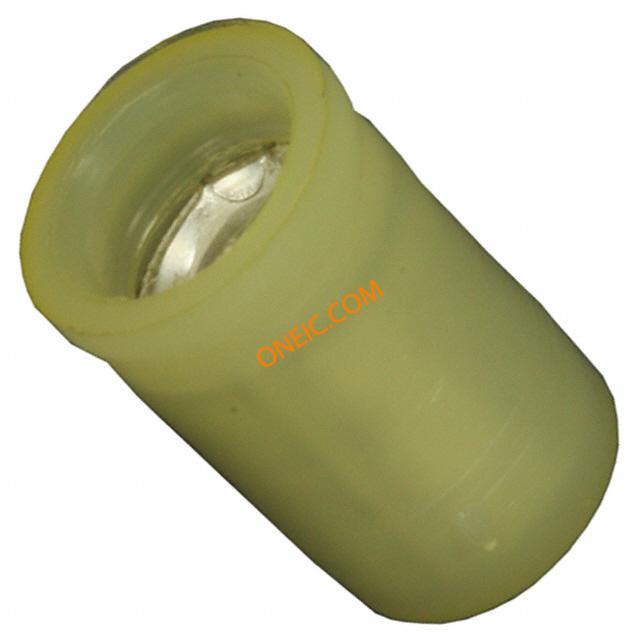

点击放大查看
328309
| 制造商 | TE Connectivity Ltd. |
| 描述 | Splice Terminal 10-12AWG 12.14mm 7.95mm Tin Loose Piece Terminals STRIPPED WIRE CAP yellow Splices - Closed Barrel CONN SPLICE WIRE CAP 10-12 AWG Wire cap, PIDG, yellow, 12-10 AWG Splice Terminal 10-12AWG 12.14mm 7.95mm Tin Loose Piece Product Highlights:Wire Caps for Stripped WireNot Sealed1 & 2 ClassBody Style = PIDGInsulatedSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, TERMINAL, CLOSED END SPLICE CRIMP YELLOW Conn;WireCap;ClosedEnd;12-10AWG;Nylon;Yellow;Crimp;AMP PIDG 12-10 AWG Unsealed Insulated Wire Cap for Stripped Wire TE Connectivity 黄色 绝缘 备用电线盖 绝缘压接接线端子, 镀锡触点, 12 → 10 AWG WIRE CAP,YEL 12-10 |
| 分类 |
商业参数
| 产品 | Accessories | 零件号别名 | MS25274-4 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85444920 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 额定电压 | 300 VAC | ||
机械参数
| 颜色 | Yellow | 深度 | 7.95 mm |
| 表面处理 | Tin | 长度 | 12.14 mm |
| 密封型 | No | 重量 | 0.002 |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 绝缘类型 | Insulated | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Wire | 螺柱/焊片尺寸 | :- |
| 端子类型 | Butt Splice, Closed End, Single Opening | 行程角度 | Straight |
| 连接器类型 | :Closed End Splice | 接触镀层 | Tin |
| 壳体镀层 | Tin | 线束直径 | 6 mm |
| 触头材料 | Copper | 绝缘颜色 | :Yellow |
| 总长度 | 12.14mm | 包装数量 | Loose Piece |
| 主要材料 | WireCap | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 连接器颜色 | Yellow |
| 绝缘直径 | 5.33 [.210] Max. | 绝缘材料 - 类型 | Nylon |
| 进线口数 | 1 | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 类型 | Splice Terminal | 类别 | 1 & 2 |
| 连接器性别 | Female | 系列 | 328 |
| 产品特性 | Serrated Mating Area | 制造商全称 | AMP |
| 产品子类型 | Wire Caps for Stripped Wire | 设备部件号 | MS25274-4 |
