326861
| 制造商 | |
| 描述 | Spade Tongue Terminal 16-22AWG 19.13mm 7.54mm Tin Loose Piece Terminals PIDG SPADE 22-16 6 BULK Ring and Spade Tongue Terminals CONN SPADE 16-22 AWG #6 RED PIDG Spade terminal, PIDG,red,AWG 22-16, M3.5 Spade Tongue Terminal 16-22AWG 19.13mm 7.54mm Tin Loose Piece Product Highlights:Terminal Shape = Spade TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B PIDGSPD22-16COMM22-18MIL6 TE Connectivity PIDG 系列 红色 绝缘 压接铲形连接器 , M3.5 螺栓 PIDG SPD 22-16 COMM 22-18MIL 6 |
| 分类 |
商业参数
| 产品 | Fork Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Red | 形状 | SPADE-020 |
| 宽度 | 7.54mm | 表面处理 | Tin |
| 重量 | .703 | 材料（通用） | Copper |
| 包装方式 | Bulk | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 6 | 导线线规 | 16-22 AWG |
| 端接方式 | Crimp | 触点形状 | Spade Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 3.5 mm |
| 端子类型 | Standard | 行程角度 | Straight |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 端子样式 | Straight | 连接器样式 | Straight |
| 总宽度 | 0.297" | 触头材料 | Copper |
| 总长度 | 0.753" (19.13mm) | 包装数量 | Loose Piece |
| 主要材料 | Fork | 绝缘高度 | Insulation Support |
| 端接样式 | 叉形舌片 | 连接器颜色 | Red |
| 绝缘直径 | 3.56 [.140] Max. | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.297" (7.54mm) | 端接长度 | 0.550" (13.97mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 舌片内部开口 | 0.84 [0.033] |
| 螺纹/螺钉/孔尺寸 | M3.5 | 供应商器件封装 | PIDG |
| 支撑面板厚度 | Insulation Support | 线规或范围 - AWG | 509 â 3,260 |
| 线规或范围 - mm² | 0.30-1.40² [22-16] | 外径-未扩张 | 3.56 mm [ .14 in ] |
| 环中心到端接长度 | 0.203" (5.16mm) | ||
产品信息
| 类型 | Spade Tongue Terminal | 连接器性别 | Female |
| 系列 | 326 | 产品特性 | Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | 105 | ||
文档与媒体
相关型号
326861
TE Connectivity AMP Connectors
Spade Tongue Terminal 16-22AWG 19.13mm 7.54mm Tin Loose Piece Terminals PIDG SPADE 22-16 6 BULK Ring and Spade Tongue Terminals CONN SPADE 16-22 AWG #6 RED PIDG Spade terminal, PIDG,red,AWG 22-16, M3.5 Spade Tongue Terminal 16-22AWG 19.13mm 7.54mm Tin Loose Piece Product Highlights:Terminal Shape = Spade TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B PIDGSPD22-16COMM22-18MIL6 TE Connectivity PIDG 系列 红色 绝缘 压接铲形连接器 , M3.5 螺栓 PIDG SPD 22-16 COMM 22-18MIL 6
217202-1
te connectivity / amp
Terminals Tool Die Set Pneumatic Crimping Head Crimpers 626 T HD CRIMPER Hand Tools 626 T HD CRIMPER T-HEAD CRIMPER NORM CLOSED 626 T HD CRIMPER,NORM CLOSED

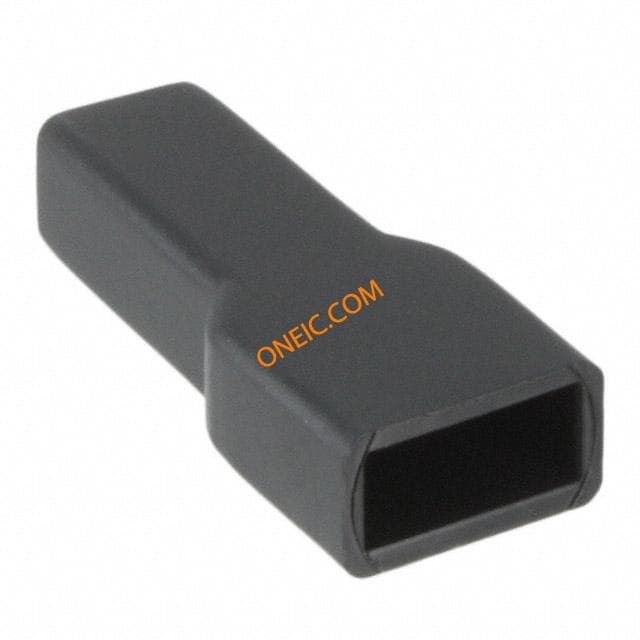

2-180930-5
