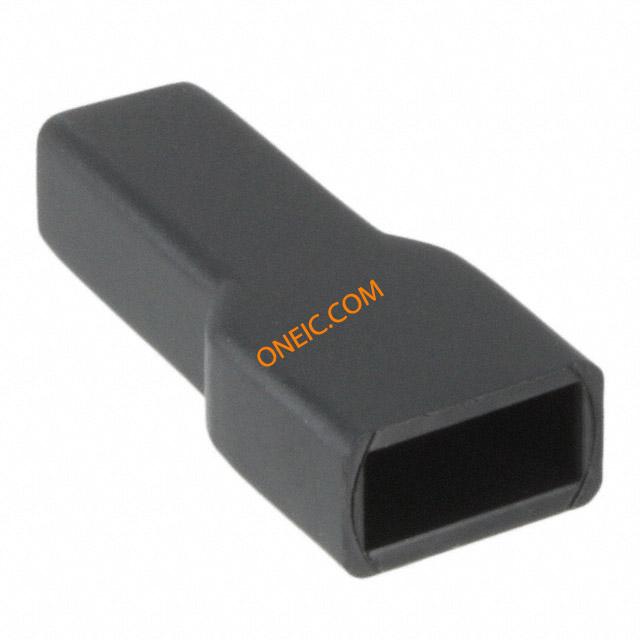

2-180930-5
| 制造商 | |
| 描述 | Connector Accessories Insulating Sleeve Polyethylene Black Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE BLACK Black insul boot for 6.3mm receptacle Headers & Wire Housings INS.SLEEVE BLACK Connector Accessories Insulating Sleeve Polyethylene Black Loose Piece Product Highlights:Insulation SleeveInsulation Diameter = 2.50 [.098] Max. mm [in]Polyethylene MaterialHousing Color = BlackLine = FASTON .250Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING COVER, FASTON, BLACK, PK100 Blackinsulbootfor6.3mmreceptacle TE Connectivity 套管 INSUL BOOT PE BLK |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94 V-2 | ||
机械参数
| 颜色 | Black | 重量 | 0.036 |
| 材料（通用） | Polyethylene | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | :Dust Cap & Cover | 本体材料 | :PE (Polyethylene) |
| 壳体材料 | Polyethylene (PE) | 总长度 | FASTON .250 |
| 包装数量 | Loose Piece | 主要材料 | AutomotiveConnectorAccessory |
| 连接器颜色 | :Black | 触点数 | 1 |
| 绝缘直径 | 2.50 [.098] Max. | 位数 | 1 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Sleeve |
| 样式 | Sleeve | 连接器性别 | Female, Receptacle |
| 系列 | :FastOn | 产品子类型 | Insulation Sleeve |
| 附件类型 | Sleeve | 射频系列/标准 | 180930 |
| 适用产品/相关产品 | :FastOn Receptacles | ||
环境参数
| 工作温度 | :75°C | ||
文档与媒体
PDF 文档
