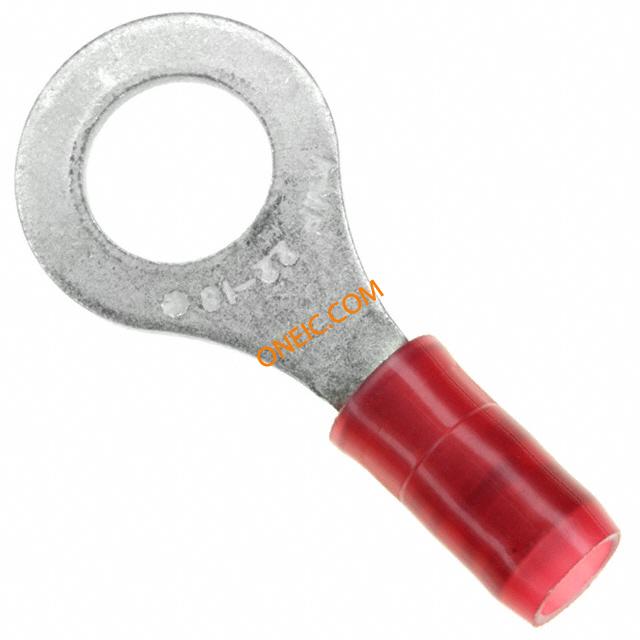

点击放大查看
320571
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 16-22AWG 27.38mm 11.91mm Tin Loose Piece Terminals PIDG R 22-16 COMM 22-18MIL 1/4 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #1/4 PIDG Ring terminal, PIDG, red, AWG 22-16, M6 Ring Tongue Terminal 16-22AWG 27.38mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, 6MM, RED Terminal,RingTongue;RING-041;Copper;22-16AWG;300VAC;1/4(M6);PIDG Ring terminal; M6; Ø:6.35mm; 0.3÷1.42mm2; crimped; for cable; red PIDG Series 22 - 16 AWG Red Straight Closed Barrel Ring Tongue Terminal Ring terminal, 0.3...1.5 mm², 22...16 AWG, PIDG, 320571, TE Connectivity TE Connectivity PIDG 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M6 螺栓, 6.73mm内环直径, 27.38mm总长 PIDG R 22-16 COMM 22-18MIL 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 零件号别名 | MS25036-150 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 驱动类型 | ring terminal | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Red | 深度 | 11.91 mm |
| 形状 | RING-041 | 表面处理 | Tin |
| 重量 | 0.002 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 导线线规 | 16-22 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6.35 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Copper |
| 套圈材料 | insulated | 绝缘颜色 | :Red |
| 总长度 | 1.078" (27.38mm) | 包装数量 | Loose Piece |
| 内径（直径） | 6.35mm | 绝缘高度 | Insulation Support |
| 连接器颜色 | Red | 接触件尾部长度 | 0.84 [0.033] |
| 绝缘直径 | 3.18 [.125] Max. | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.469" (11.91mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 安装孔直径 | M6 | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :3.18mm |
产品信息
| SPG | 1 | 类型 | Ring Tongue Terminal |
| 类别 | 1 & 2 | 连接器性别 | Female |
| 系列 | 320 | 已删除 | Compliant |
| 产品特性 | Serrated Termination | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 单元数量 | 1 |
| 设备部件号 | MS25036-150 | ||
