320554
| 制造商 | TE Connectivity Ltd. |
| 描述 | PIDG Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Terminals PIDG RING 22-16 8 BULK Ring and Spade Tongue Terminals CONN RING 16-22 AWG #8 RED PIDG Ring terminal, PIDG, red, AWG 22-16, M4 PIDG Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #8, CRIMP, RED TERMINAL,RINGTONGUE,PIDG,22-16AWG(MIL8),STRAIGHT,CLOSEDBARREL PIDG 22-16 AWG Straight Closed Barrel Ring Tongue Terminal TE Connectivity PIDG 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M4 螺栓, 4.34mm内环直径, 20.24mm总长 PIDG R 22-16 COMM 22-18 MIL 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85444920 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Red | 深度 | 7.14 mm |
| 形状 | RING-041 | 表面处理 | Tin |
| 重量 | 0.002 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 8 |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.281" | 触头材料 | Copper |
| 绝缘颜色 | :Red | 总长度 | 0.797" (20.24mm) |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 连接器颜色 | Red | 接触件尾部长度 | 0.79 [0.031] |
| 绝缘直径 | 3.18 [.125] Max. | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.281" (7.14mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 供应商器件封装 | PIDG | 线规或范围 - AWG | 509 â 3,260 |
| 线规或范围 - mm² | 0.30-1.40² [22-16] | ||
产品信息
| 类型 | PIDG Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 320 | 产品特性 | Serrated Termination |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
相关型号
217202-1
te connectivity / amp
Terminals Tool Die Set Pneumatic Crimping Head Crimpers 626 T HD CRIMPER Hand Tools 626 T HD CRIMPER T-HEAD CRIMPER NORM CLOSED 626 T HD CRIMPER,NORM CLOSED
47386
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers DAHT PIDG CRIMPER 22-16 AWG Hand Tools DAHT PIDG CRIMPER 22-16 AWG HAND TOOL PIDG 16-26AWG Connector Accessories PIDG Terminal and Splice Hand Tool (16-22)AWG CRIMP TOOL CERTI-CRIMP PIDG 22-16 DAHT
59826-1
te connectivity / amp
TETRA-CRIMP DIE 22-18 Crimpers TETRA-CRIMP DIE 22-1 TOOL TETRA-CRIMP DIE 22-18AWG Application Tooling Lead Free Solder Processes

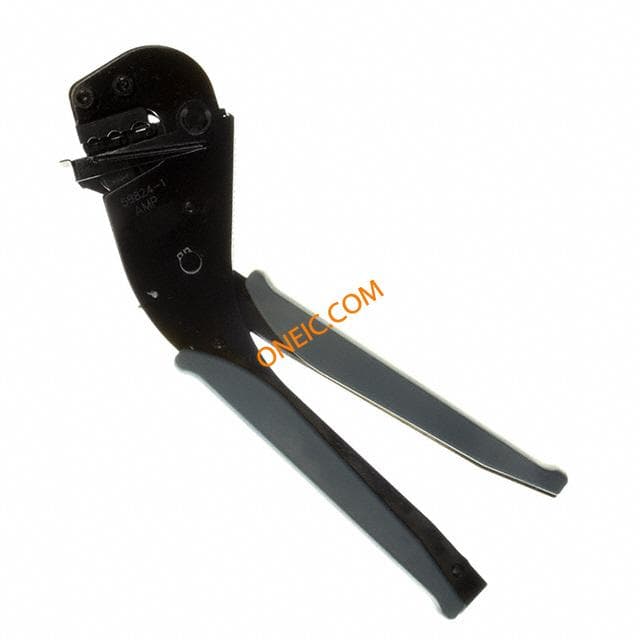

59824-1
te connectivity / amp
Die Set For Connector/Terminal Tool Crimpers TETRA CRIMP TOOL TETRA-CRIMP HT ASSY TETRA-CRIMP crimp tool, PIDG, 22-10 AWG CRIMP TOOL, PIDG FASTON RECEPTACLES Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIPSplice/Terminal;904139-1,662903-2Die TE Connectivity Tetra-Crimp 系列 手工压接工具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals
58423-1
te connectivity / amp
DIE, RBY IS9252 Punches & Dies DIE SET INSUL. 22-10 DIESET SPLICE TERMINALS PRO-CRIMPER III PIDG PLASTI-GRIP die set Pro-Crimper Iii Hand Tool DIE, PIDG/PLASTIGRIP AMP;DIESETONLY;INSULATEDTERMINALS;22-10AWG Crimping dies, 58423-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 10 AWG 线规格
8-320554-1
te connectivity / amp
Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Terminals PIDG R 22-16 COMM 22-18 MIL 8 Ring and Spade Tongue Terminals CONN RING 16-22AWG #8 RED PIDG Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #8, CRIMP, RED PIDG R 22-16 COMM 22-18 MIL 8

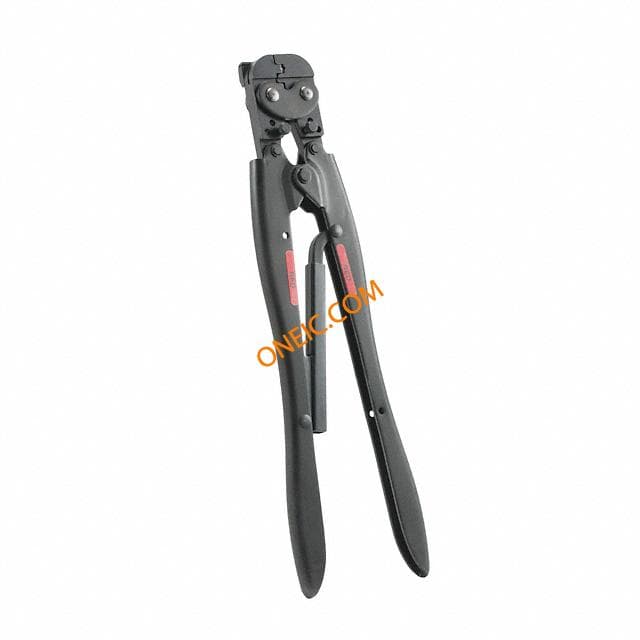

69151-1
te connectivity / amp
DAHT PIDG S EXP 22-16 Crimpers DAHT PIDG S EXP 22-16 TOOL HAND PIDG S EXP 16-22AWG DAHT Pidg S Exp 22-16 TE Connectivity CERTI-CRIMP 系列 PIDG Butt Splices 压接工具 , 适用于22 → 16 AWG 线规格
59250
te connectivity / amp
Connector Removal Tool Crimpers T-HD HT PIDG 22-14 AWG CRIMP TOOL, PIDG, STRATO-THERM, PLASTI-GRIP TERMINALS T-HD HT, PIDG 22-14
47386-5
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HAND TOOL PIDG 22-16 HAND TOOL PIDG 16-26AWG
58433-3
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers TOOL W/DIE INS TERM TOOL CRIMP INSUL TERM W/DIE SET PRO-CRIMPER III hand crimping tool Connector Accessories Terminal Crimp Hand Tool CRIMP TOOL, PIDG AND PLASTI-GRIP TERMINALS Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIP,PIDGFASTONTerminals;58423-1Die TE Connectivity Pro-Crimper III 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 PRO CR ASSY, RBY IS9252
314270-3
te connectivity / amp
Penumatic Crimoing Head Red Hand Tools 22-16 PIDG IS9586 PNEU HD PNEU HEAD 22-16AWG PIDG IS9586 Pneumatic crimping head, PIDG, 22-16 AWG Connector Accessories Terminal Head Red PNEUHD22-16PIDGIS9586
91964-2
te connectivity / amp
S.D.E.PREM.DIE ASSY 22-16 PIDG Punches & Dies S.D.E.PREM.DIE ASSY 22-16 PIDG
46282
TE Connectivity / AMP
Crimpers PNEU HD PIDG 69010 22-16 Hand Tools PNEU HD PIDG 69010 22-16 PNEU HEAD PIDG 69010 22-16AWG

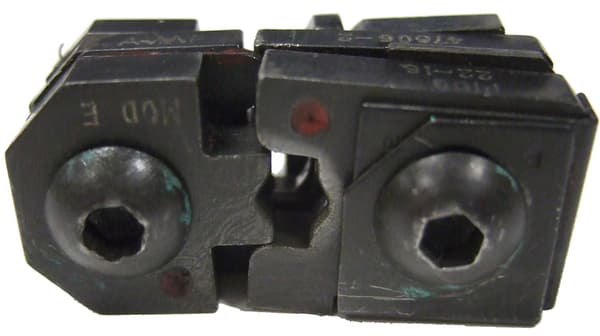

47806-2
