点击放大查看

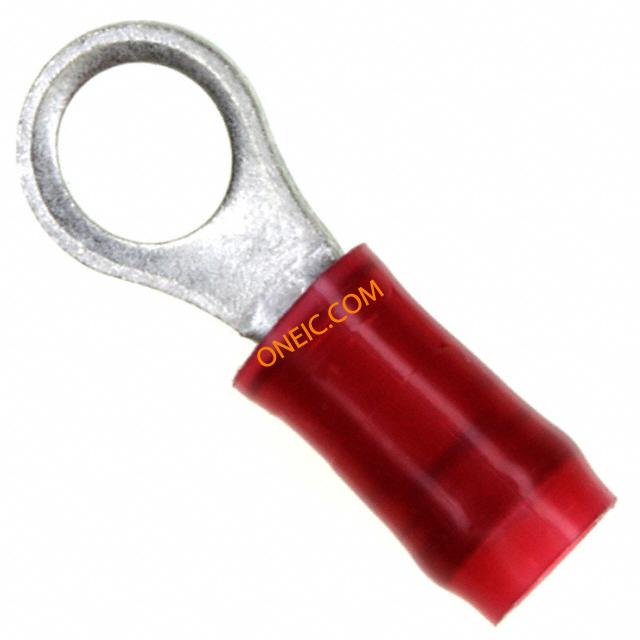

31887
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Terminals PIDG RING 22-16 10 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #10 PIDG Ring terminal, PIDG, red, AWG 22-16, M5 Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,RINGTONGUE,PIDG,22-16AWG(MIL10),STRAIGHT,CLOSEDBARREL TE Connectivity PIDG 系列, 红色 镀锡触芯 环形压接端子 , M5 螺栓, 20.24mm总长 PIDG R 22-16 COMM 22-18 MIL 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Red | 深度 | 7.14 mm |
| 形状 | RING-041 | 表面处理 | Tin |
| 重量 | .658 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 10 |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.82 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 电缆直径 | 1.65mm² | 电缆材料 | Solid or Stranded |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.281" |
| 触头材料 | Copper | 总长度 | 0.797" (20.24mm) |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 端接样式 | 环形端子 |
| 连接器颜色 | Red | 材料厚度 | .79 mm [ .031 in ] |
| 接触件尾部长度 | 0.84 [0.033] | 绝缘直径 | 3.56 [.140] Max. |
| 绝缘材料 - 类型 | Nylon | 位数 | 1 |
| 外缘宽度 | 0.281" (7.14mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 舌片内部开口 | .84 mm [ .033 in ] | 螺纹/螺钉/孔尺寸 | M5 |
| 供应商器件封装 | PIDG | 支撑面板厚度 | Insulation Support |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
| 外径-未扩张 | 3.56 mm [ .14 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 318 | 产品特性 | Serrated Termination |
| 检查插槽 | 否 | 制造商全称 | AMP |
环境参数
| 工作温度 | 105 | ||
