S765
| 制造商 | Switchcraft, Inc. |
| 描述 | Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port CONN PLUG MINI PWR 2COND WHT/RED 2mm Straight DC Power Plug Rated At 5A, Cable Mount, Length 36.1mm, Tin Plate DC Power Connectors DC PWR PLG 0.080 1.42L, RED HANDLE POWERPLUG Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯 |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 44 Days |
| 子类别 | Connector Power | 产品类别 | DC Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 颜色 | Red | 长度 | 36.1mm |
| 直径 | 9.5 | 屏蔽 | Unshielded |
| 方向 | 直 | 端接方式 | Solder Eyelet(s) |
| 引脚直径 | 2mm | 外壳颜色 | Red |
| 安装类型 | Cable Mount | 连接器类型 | Plug |
| 接触镀层 | Tin | 安装样式 | Wire |
| 触头材料 | Copper Alloy | 壳体材料 | Plastic |
| 总长度 | 36.06 | 触点数 | 2 |
| 插头/配合插头直径（类型） | 2.1mm ID, 5.5mm OD | 触点材料 - 镀层 | Nickel |
| 恢复后内径 | 2.1 | ||
产品信息
| 类型 | Power | 连接器性别 | F |
| 系列 | Standard DC Power Plugs | 端口数 | 1 |
| 内部开关 | Does Not Contain Switch | 位置/触点数量 | 2 Conductors, 2 Contacts |
文档与媒体
相关型号
PC722A
Switchcraft
Conn Power F 2 POS Solder ST Thru-Hole 3 Terminal 1 Port CONN POWERJACK MINI W/HDWR Connector; Miniature Power Jack; 0.475 in.; 0.08; PC DC Power Connectors 2.1MM POWER JACK JACK SOCKET, DC Conn;AV;Power;Jack;Mini;2.0mmPinDia;Straight;PCTerm;forS760,S760K,S761K
RAPC722X
Switchcraft
Conn Power PL 2 POS Solder RA Thru-Hole 3 Terminal 1 Port Bulk CONN POWERJACK MINI R/A T/H DC Power Connectors RT ANGL PWK JK PIN D JACK, SOCKET, DC, 250V, 5A Conn;AV;Power;Jack;Mini;2.0mmPinDia;RtAngle;Thru-hole;forS760,S765Plug Applied-voltage source socket 2.1 mm 6.3 mm, RAPC722X, Switchcraft

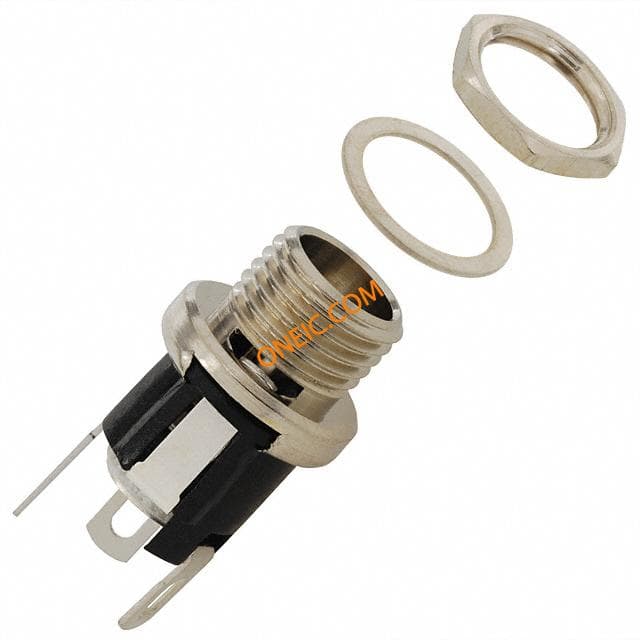

722A
Switchcraft
Conn Power F 2 POS Solder Lug ST Panel Mount 3 Terminal 1 Port CONN POWERJACK SOLDR W/HDWR DC Power Connectors 2.0MM round w/ nut JACK SOCKET, DC POWERJAX Applied-voltage source socket, straight 2.1 mm 5.5 mm, 722A, Switchcraft Switchcraft 直向 面板安装 直流电源插座, 5A, 12 V 直流, 镀银触点

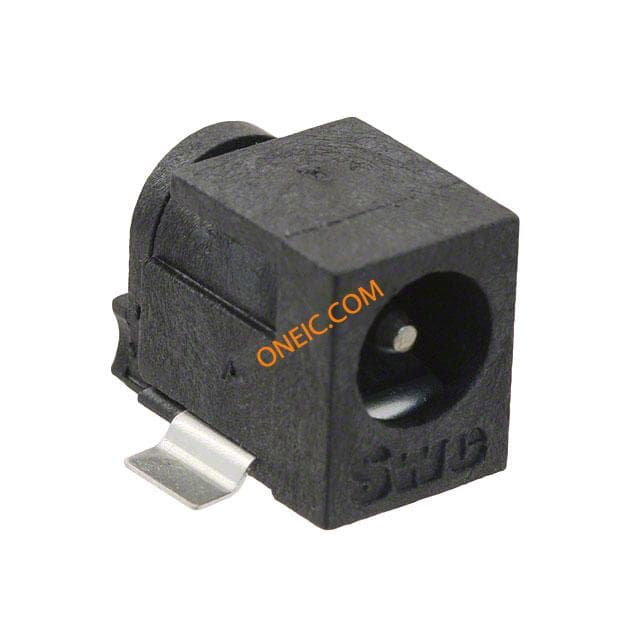

RASH722X
Switchcraft
Conn Power PL 2 POS Solder RA Thru-Hole/SMD 3 Terminal 1 Port Bulk CONN POWERJCK MINI RA HYBRID DC Power Connectors HYBRID RA PWR JACK HYBRIDRAPOWERJACK

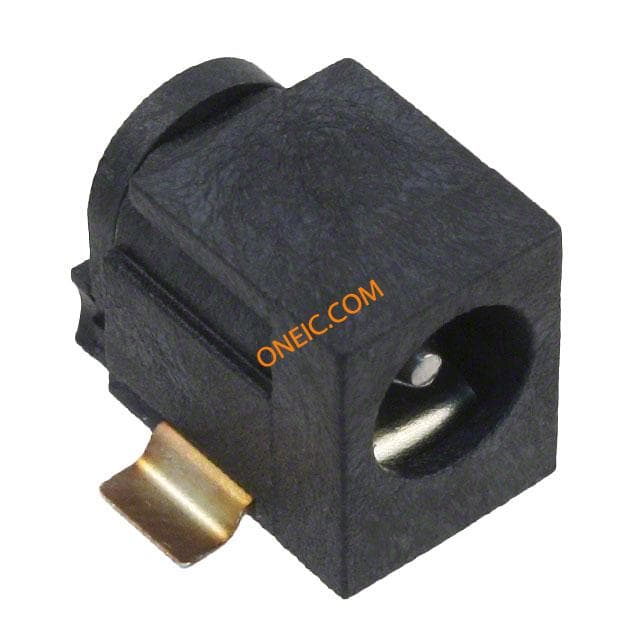

RASM722X
