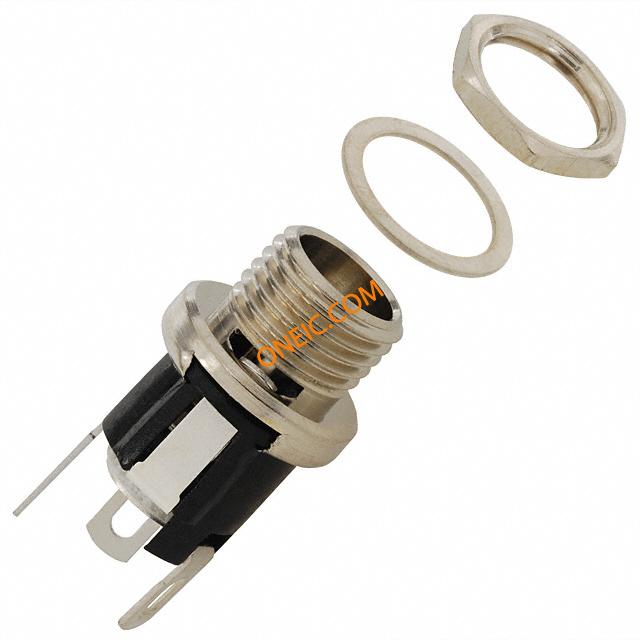

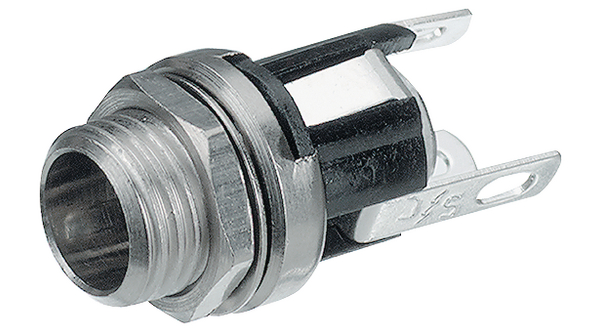

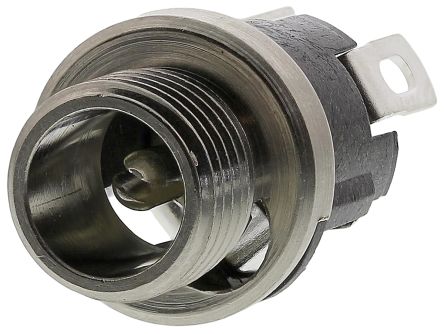

722A
| 制造商 | Switchcraft, Inc. |
| 描述 | Conn Power F 2 POS Solder Lug ST Panel Mount 3 Terminal 1 Port CONN POWERJACK SOLDR W/HDWR DC Power Connectors 2.0MM round w/ nut JACK SOCKET, DC POWERJAX Applied-voltage source socket, straight 2.1 mm 5.5 mm, 722A, Switchcraft Switchcraft 直向 面板安装 直流电源插座, 5A, 12 V 直流, 镀银触点 |
| 分类 |
商业参数
| 产品 | Jacks | 交货时间 | 30 Days |
| 其他名称 | SC1049 | 子类别 | Connector Power |
| 产品类别 | DC Power Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366990 |
电气参数
| 额定电压 | 12VDC | 最大额定电流 | 5A |
| 绝缘电阻 | 10000 MOhms | 最小输入电压 | 12VDC |
机械参数
| 颜色 | Silver | 重量 | 0.001 |
| 直径 | 11.1 | 屏蔽 | Unshielded |
| 端接方式 | Solder Lug | 重量（g） | 2.00000 |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 连接器类型 | Jack | 安装样式 | Panel |
| 触头材料 | Copper Alloy | 壳体材料 | Plastic |
| 总长度 | 23.3 | 触点数 | 2 |
| 接触件端接 | :Solder | 接触镀层厚度 | 2 mm |
| 插头/配合插头直径（类型） | 2.1mm ID, 5.5mm OD | 触点材料 - 镀层 | Silver |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Power | 连接器性别 | F |
| 系列 | Straight DC Power Jacks | 产品特性 | Mounting Hardware, Thread Lock |
| 端口数 | 1 | 内部开关 | Single Switch, Normally Closed |
| 位置/触点数量 | 2 Conductors, 3 Contacts | ||
文档与媒体
相关型号
S765K
Switchcraft
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port CONN PLUG MINI PWR 2COND LOCKING DC Power Connectors DC PWR PLG 0.080 1.7L, RED HAND. LCK LOCKINGPOWERPLUG

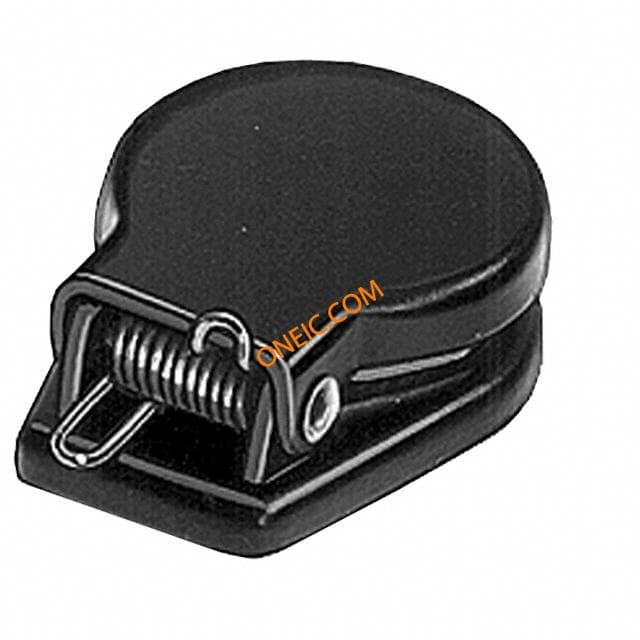

2C1072
Switchcraft
Connector Accessories Jack Cover JACK COVER FOR 2COND PLUGS JACK COVER ASSY - PO DC Power Connectors JACK COVER DUST CAP, PLASTIC JACKCOVERASSY-PO

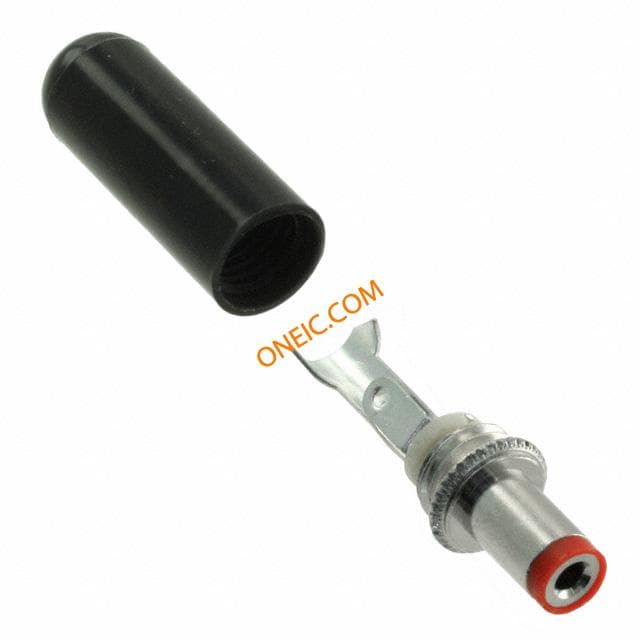

762
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN POWER PLUG MINI BLACK DC Power Connectors 2.1mm Pwr Plug Red Tip Blk Handle 2.1MMCTRPINPOWER
S760
Switchcraft
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port CONN POWERPLUG MINI BLACK 2mm Straight DC Power Plug Rated At 5A, Cable Mount, Length 36.1mm, Tin Plate DC Power Connectors DC PWR PLG 0.080 1.42L, BLK HANDLE Conn;AV;Power;Plug;Mini;2.03mm,IDPinSize;Straight;Insulated;Black Power plug without locking 2.1/5.5mm 2.1 mm, S760, Switchcraft Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯
S765
Switchcraft
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port CONN PLUG MINI PWR 2COND WHT/RED 2mm Straight DC Power Plug Rated At 5A, Cable Mount, Length 36.1mm, Tin Plate DC Power Connectors DC PWR PLG 0.080 1.42L, RED HANDLE POWERPLUG Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯
S760K
Switchcraft
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port CONN POWERPLUG MINI .08" BLACK DC Power Connectors DC PWR PLG 0.080 1.7L, BLK HAND. LCK JACK PLUG, 5A DC Conn;AV;Power;Plug;Mini;2.03mm,IDPinSize;Straight;Insulated;Locking;Black Plug; DC mains; female; 5.5mm; 2.1mm; for cable; soldering Power plug with locking 2.1/5.5mm 2.1 mm, S760K, Switchcraft Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯

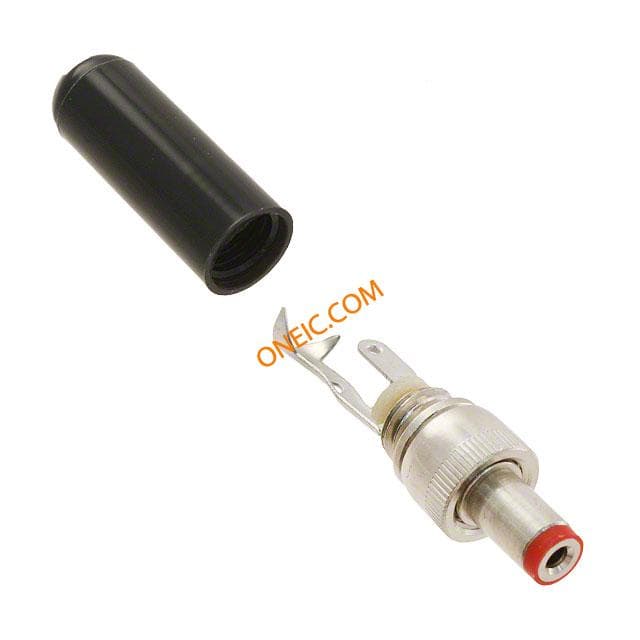

762K
Switchcraft Inc.
CONN POWER PLUG LOCKING BLACK DC Power Connectors 2.1mm Locking Plug Red Tip Blk Handle 2.1MMCTRPINLCKPW

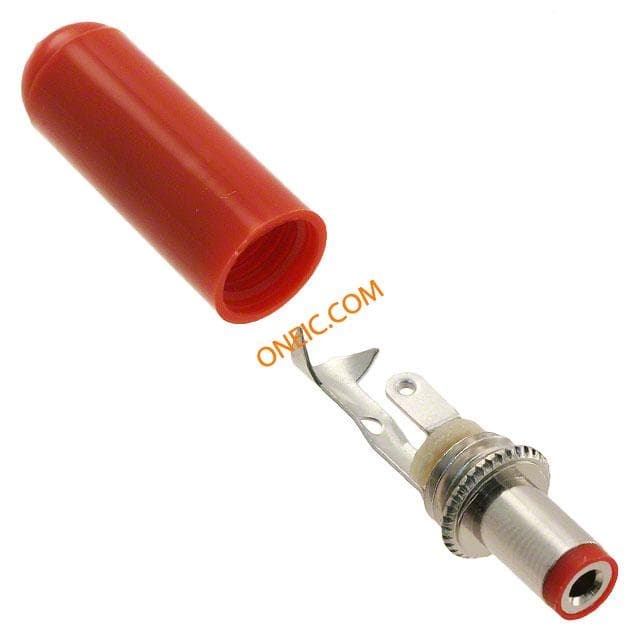

763
Switchcraft Inc.
CONN POWER PLUG MINI RED DC Power Connectors 2.1mm Pwr Plug Red Tip Red Handle 2.1MMCTRPINPOWER

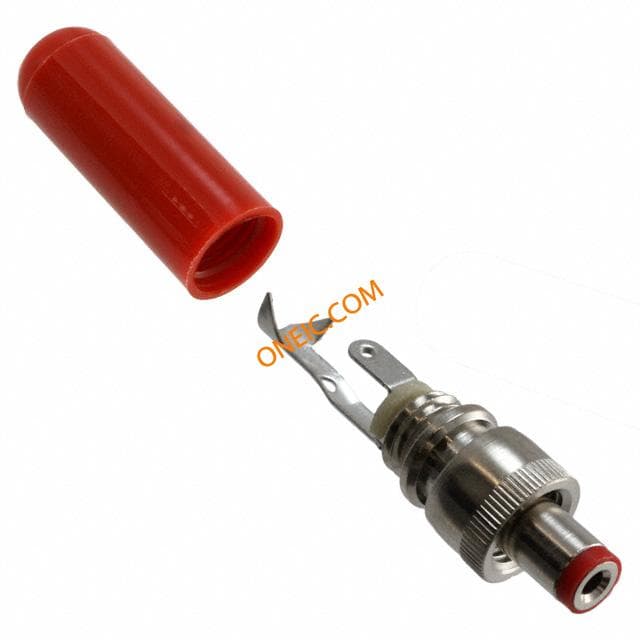

763K
