点击放大查看

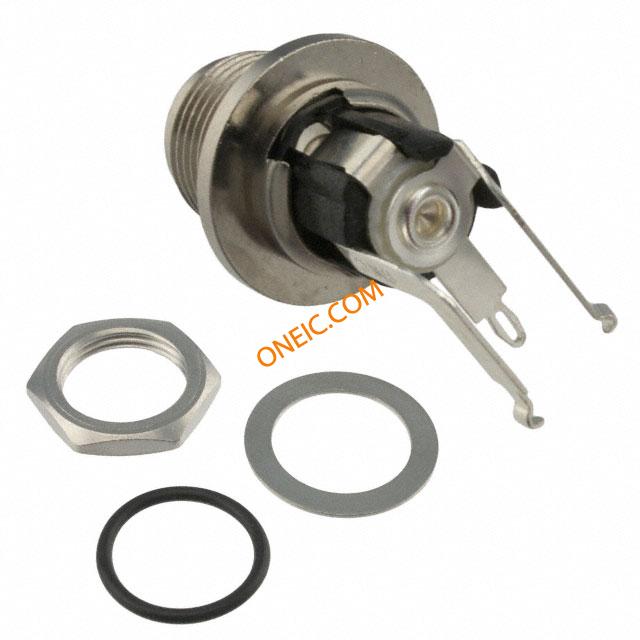

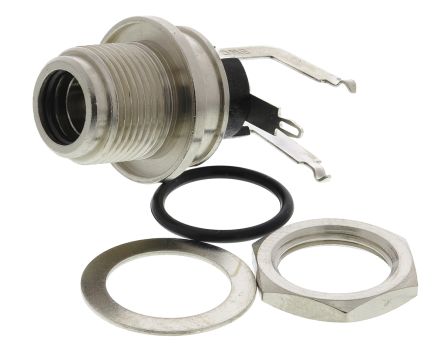

L712RAS
| 制造商 | Switchcraft, Inc. |
| 描述 | Conn Power F 3 POS Solder RA Thru-Hole 3 Terminal 1 Port CONN PWR JACK R/A 2.5MM SEALED DC Power Connectors Pwr Jack Sealed IP68 2.5mm R/A PC Mt lckg POWER JACK, 2.5MM, IP68, R/A PCB SealedPowerJack,centerpin0.10,RightAnglePC,IP68/NEMA250 Switchcraft 直角 面板安装 直流电源插座, 5A, 30 V 直流, 镀银触点, IP68 |
| 分类 |
商业参数
| 产品 | Jacks | 其他名称 | SC1394 |
| 产品类别 | DC Power Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366990 |
电气参数
| 额定电压 | 12VDC | 最大额定电流 | 5A |
机械参数
| 颜色 | Silver | 重量 | 0.001 |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Jack |
| 安装样式 | Through Hole | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 端接样式 | Solder |
| 触点数 | 3 | 接触件端接 | :Through Hole Right Angle |
| 接触镀层厚度 | 2.5 mm | 插头/配合插头直径（类型） | 2.5mm ID, 5.5mm OD |
| 触点材料 - 镀层 | Nickel | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | F |
| 系列 | Sealed Power Jacks | 产品特性 | IP68, Mounting Hardware, Thread Lock |
| 端口数 | 1 | 内部开关 | Single Switch, Normally Closed |
| 位置/触点数量 | 2 Conductors, 3 Contacts | ||
环境参数
| NEMA 机架尺寸 | :IP68 | ||
