点击放大查看

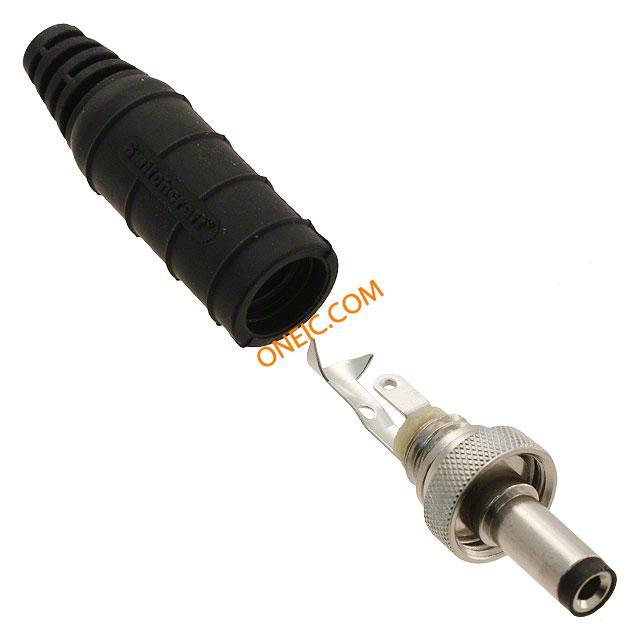

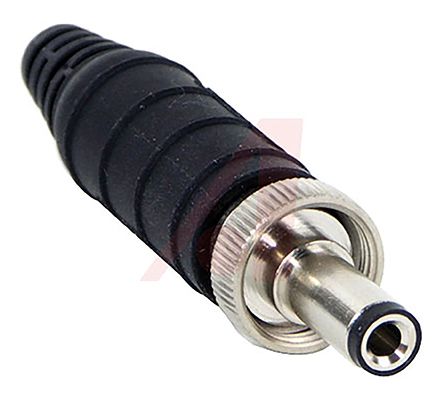

761KS12
| 制造商 | Switchcraft, Inc. |
| 描述 | Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.5MM DC Power Connectors Pwr Plug Sealed IP68 2.5mm lckg Black Tip POWER PLUG, 2.5MM PIN, 5.5MM O.D SealedPowerPlug,centerpin0.10,BlackTip,0.125-0.150CableODRange,IP68/ Switchcraft 761KS 系列 直向 直流电源插头 , 5A, 电缆安装, 镀锡触芯, IP68 |
| 分类 |
商业参数
| 产品 | Plugs | 其他名称 | SC1381 |
| 产品类别 | DC Power Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366990 |
电气参数
| 额定电压 | 30 V | 最大额定电流 | 5A |
机械参数
| 颜色 | Black | 重量 | 0.001 |
| 直径 | 12.7 | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 端接方式 | Solder Eyelet(s) |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Nickel |
| 安装样式 | Through Hole | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 57.1 |
| 端接样式 | Solder | 触点数 | 2 |
| 接触件端接 | :Solder | 接触镀层厚度 | 2.5 mm |
| 插头/配合插头直径（类型） | 2.5mm ID, 5.5mm OD | 触点材料 - 镀层 | Nickel |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Power | 连接器性别 | PL |
| 系列 | Sealed Power Plugs | 产品特性 | IP68, Cable Clamp, Thread Lock |
| 端口数 | 1 | 内部开关 | Does Not Contain Switch |
| 位置/触点数量 | 2 Conductors, 2 Contacts | ||
文档与媒体
相关型号

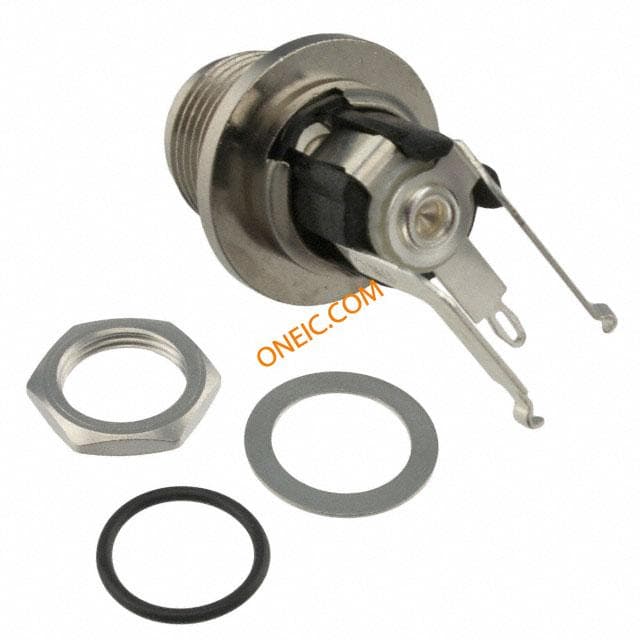

L712RAS
Switchcraft
Conn Power F 3 POS Solder RA Thru-Hole 3 Terminal 1 Port CONN PWR JACK R/A 2.5MM SEALED DC Power Connectors Pwr Jack Sealed IP68 2.5mm R/A PC Mt lckg POWER JACK, 2.5MM, IP68, R/A PCB SealedPowerJack,centerpin0.10,RightAnglePC,IP68/NEMA250 Switchcraft 直角 面板安装 直流电源插座, 5A, 30 V 直流, 镀银触点, IP68
761KS12
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.5MM DC Power Connectors Pwr Plug Sealed IP68 2.5mm lckg Black Tip POWER PLUG, 2.5MM PIN, 5.5MM O.D SealedPowerPlug,centerpin0.10,BlackTip,0.125-0.150CableODRange,IP68/ Switchcraft 761KS 系列 直向 直流电源插头 , 5A, 电缆安装, 镀锡触芯, IP68
PCL712AS
Switchcraft
Conn Power F 3 POS Solder ST Thru-Hole 3 Terminal 1 Port CONN PWR JACK PC 2.5MM SEALED DC Power Connectors Pwr Jack Sealed IP68 2.5mm lckg PC Mt POWER JACK, 2.5MM, IP68, PCB SealedPowerJack,centerpin0.10,StraightPC,IP68/NEMA250 Switchcraft L Version 系列 直向 PCB安装 直流电源插座, 5A, 12 V 直流, 镀银触点, IP68

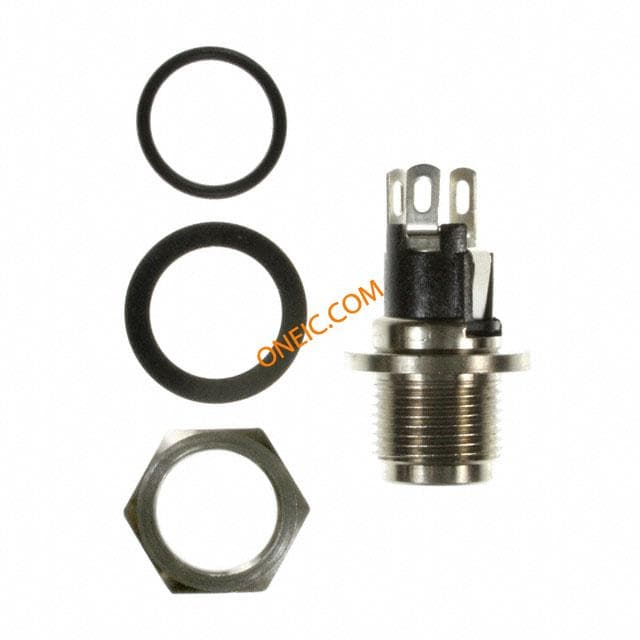

L712AS
