L712AS
| 制造商 | Switchcraft, Inc. |
| 描述 | Conn Power F 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port CONN PWR JACK 2.5MM SEALED 2.5mm Straight Panel Mount DC Power Socket 5A, 30V dc, Silver Plate, IP68 DC Power Connectors Pwr Jack Sealed IP68 2.5mm lckg Solder POWER JACK, 2.5MM, IP68, SOLDER LUG SealedPowerJack,centerpin0.10,Solderlugs,IP68/NEMA250 Switchcraft 直向 面板安装 直流电源插座, 5A, 30 V 直流, 镀银触点, IP68 |
| 分类 |
商业参数
| 产品 | Jacks | 其他名称 | SC1390 |
| 产品类别 | DC Power Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366990 |
电气参数
| 额定电压 | 12VDC | 最大额定电流 | 5A |
机械参数
| 颜色 | Silver | 深度 | 16.5 |
| 长度 | 26.3mm | 重量 | 0.001 |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 端接方式 | Solder Lug | 引脚直径 | 2.5mm |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 连接器类型 | Jack | 接触镀层 | Silver |
| 安装样式 | Through Hole | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 26.3 |
| 端接样式 | Solder | 触点数 | 3 |
| 接触件端接 | :Solder | 接触镀层厚度 | 2.5 mm |
| 插头/配合插头直径（类型） | 2.5mm ID, 5.5mm OD | 触点材料 - 镀层 | Nickel |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Power | 连接器性别 | F |
| 系列 | Sealed Power Jacks | 产品特性 | IP68, Mounting Hardware, Thread Lock |
| 端口数 | 1 | 内部开关 | Single Switch, Normally Closed |
| 位置/触点数量 | 2 Conductors, 3 Contacts | ||
环境参数
| 密封等级 | IP68 | NEMA 机架尺寸 | :IP68 |
文档与媒体
相关型号

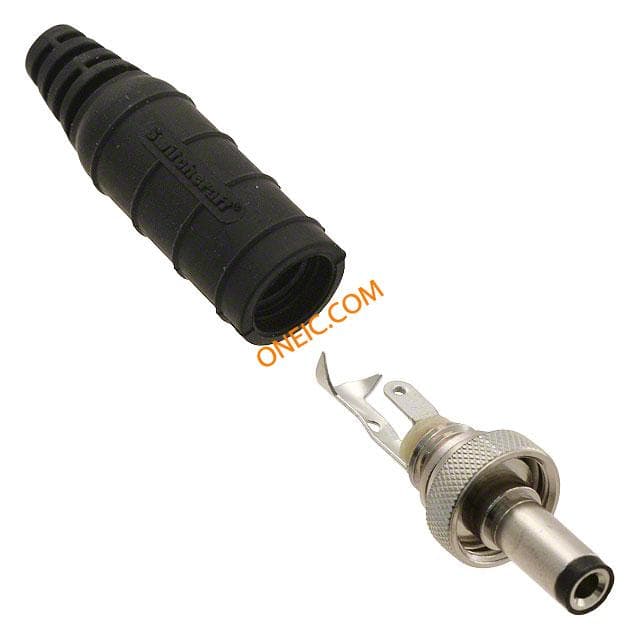

761KS15
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.5MM Straight DC Power Plug, Cable Mount, Length 57.1mm, Nickel Plate DC Power Connectors Pwr Plug Sealed IP68 2.5mm lckg Black Tip POWER PLUG, 2.5MM PIN, 3.8-4.4MM O.D SealedPowerPlug,centerpin0.10,BlackTip,0.150-0.175CableODRange,IP68/ Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀镍触芯, IP68

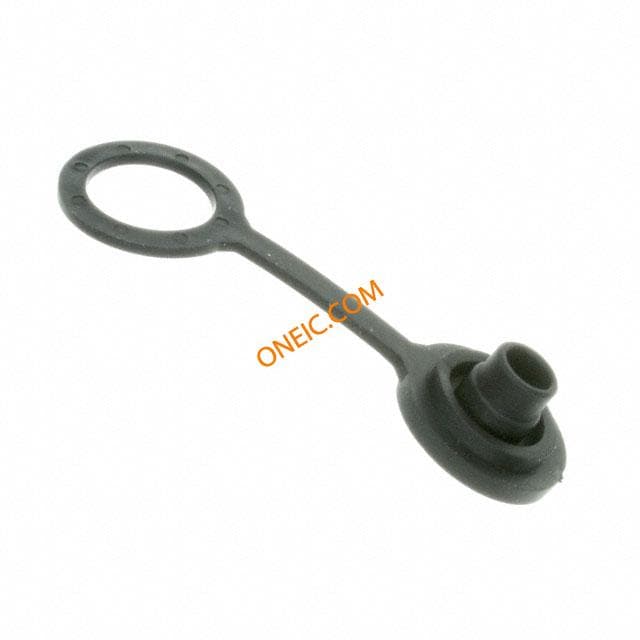

JCAP
Switchcraft
Connector Accessories Power Jack Sealed Cap Thermoplastic Elastomer Black POWER JACK SEAL CAP Switchcraft JCAP Series Jack Cover For Use With Power Connector JCAP DC Power Connectors Power Jack Seal Cap DUST CAP, FOR POWER JACK PowerJackSealCap Switchcraft 系列, 型 插孔盖, 使用于电源连接器
761KS12
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.5MM DC Power Connectors Pwr Plug Sealed IP68 2.5mm lckg Black Tip POWER PLUG, 2.5MM PIN, 5.5MM O.D SealedPowerPlug,centerpin0.10,BlackTip,0.125-0.150CableODRange,IP68/ Switchcraft 761KS 系列 直向 直流电源插头 , 5A, 电缆安装, 镀锡触芯, IP68

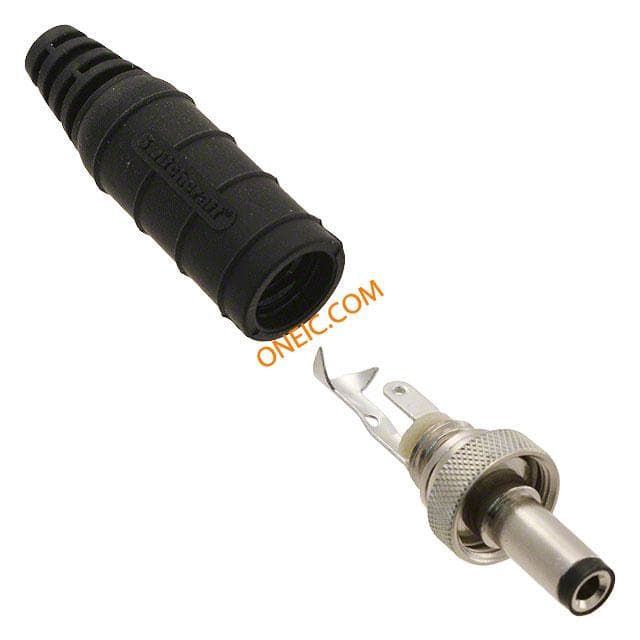

761KS17
