点击放大查看

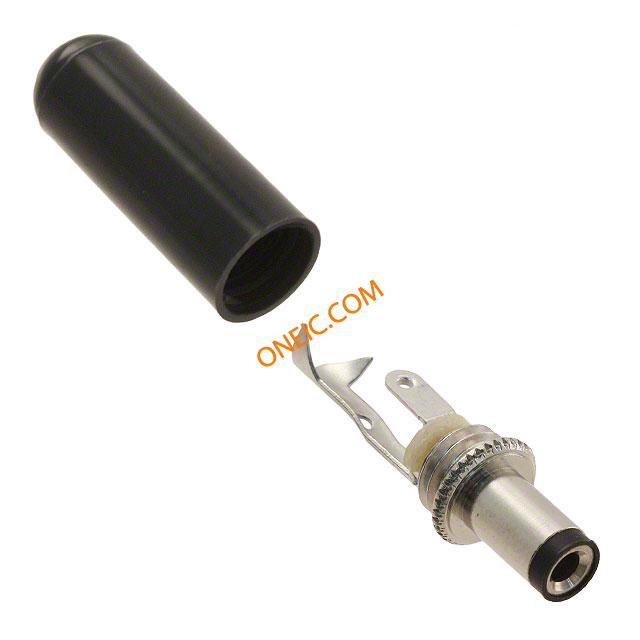

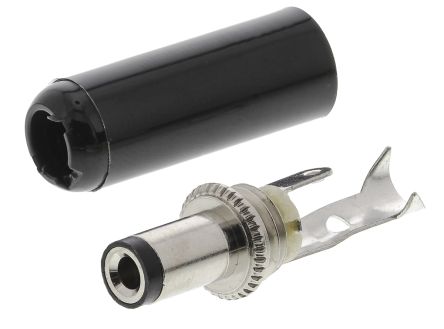

760
| 制造商 | Switchcraft, Inc. |
| 描述 | CONN PLUG MINI POWER 2COND BLACK 2.5mm Straight DC Power Plug Rated At 5A, Cable Mount, Length 36.1mm, Tin Plate DC Power Connectors DC PWR PLG 0.100 1.42L, BLK HANDLE Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port JACK PLUG, DC Conn;AV;Power;Plug;Mini;2.5mm,IDPinSize;Straight;Insulated;Black Power plug without locking 2.5/5.5mm 2.5 mm, 760, Switchcraft Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯 |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 53 Days |
| 其他名称 | SC1051 | 子类别 | Connector Power |
| 产品类别 | DC Power Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 极数 | :2 | 最大额定电流 | 5A |
机械参数
| 尺寸 | Mini | 颜色 | Black |
| 长度 | 36.1mm | 重量 | 0.001 |
| 直径 | 9.5 mm | 屏蔽 | Unshielded |
| 绝缘类型 | Insulated | 端接方式 | Solder Eyelet(s) |
| 引脚直径 | 2.5mm | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Plug | 接触镀层 | Tin |
| 安装样式 | Wire | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 36.06 mm |
| 主要材料 | Power | 连接器颜色 | :Black |
| 触点数 | 2 POS | 接触件端接 | :Solder |
| 接触镀层厚度 | 2.5 mm | 插头/配合插头直径（类型） | 2.5mm ID, 5.5mm OD |
| 触点材料 - 镀层 | Nickel | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Power | 连接器性别 | Female |
| 系列 | Standard DC Power Plugs | 端口数 | 1 Port |
| 内部开关 | Does Not Contain Switch | 位置/触点数量 | 2 Conductors, 2 Contacts |
文档与媒体
相关型号

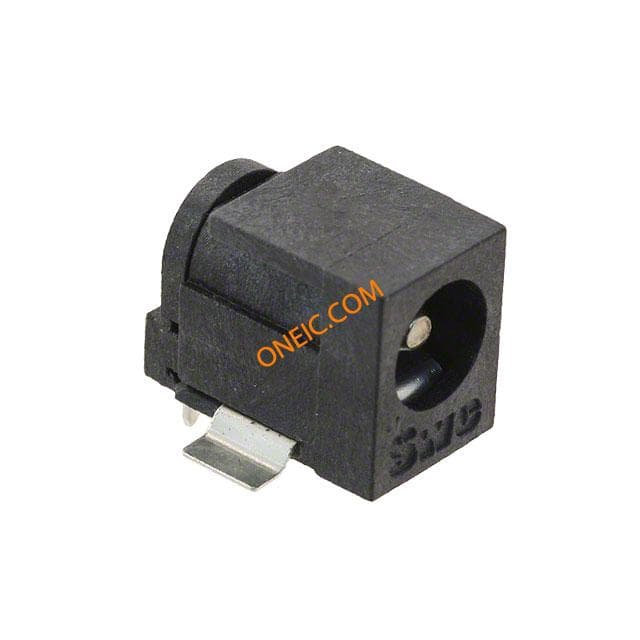

RASH712X
Switchcraft
Conn Power PL 2 POS Solder RA Thru-Hole/SMD 3 Terminal 1 Port Bulk CONN POWERJACK MINI RA HYBRID DC Power Connectors RA PWR JK HY.100 DIA RAPWRJKHY.100DIA

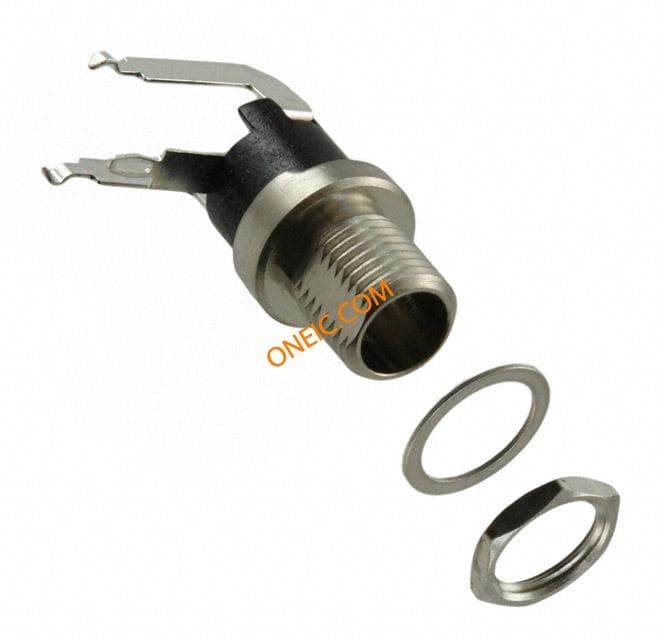

L712RA
Switchcraft
Conn Power PL 3 POS 3.3mm Solder RA Thru-Hole 3 Terminal 1 Port CONN JACK THREAD PWR RT ANG PC Jack; Power; Right Angle PC Mount; 0.100 in.; 0.319 in. (Bushing) DC Power Connectors 2.5MM LONG BUSHING CONNECTOR POWER Jack,Power;RightAnglePCMount;0.100in.;0.319in.(Bushing) Switchcraft RA 系列 直角 直流电源插头 , 5A, 12 V 直流, 通孔, 镀银触芯

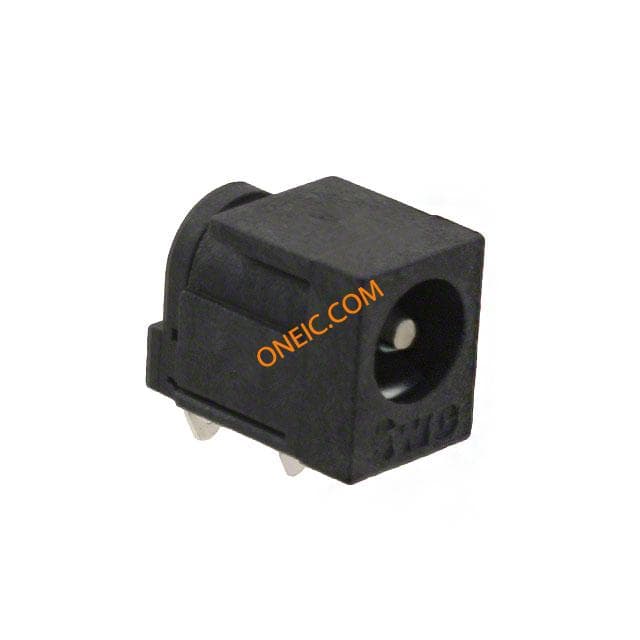

RAPC712X
Switchcraft
Conn Power PL 2 POS Solder RA Thru-Hole 3 Terminal 1 Port Bulk CONN POWERJACK MINI R/A PCMT DC Power Connectors R/A POWER JACK JACK, SOCKET, DC, 250V, 5A Conn;AV;Power;Jack;Mini;2.5mmPinDia;RtAngle;Thru-hole;for760,765Plug Applied-voltage source socket 2.5 mm 6.3 mm, RAPC712X, Switchcraft
760K
Switchcraft
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port CONN POWERPLUG LOCKING BLACK DC Power Connectors DC PWR PLG 0.100 1.7L, BLK HAND. LCK JACK PLUG, 5A DC Conn;AV;Power;Plug;Mini;2.5mm,IDPinSize;Straight;Insulated;Locking;Black Power plug with locking 2.5/5.5mm 2.5 mm, 760K, Switchcraft Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯
712A
Switchcraft Inc.
CONN POWERJACK SOLDER W/HDWR 2.5mm Straight Panel Mount DC Power Socket 5A, 12V dc, Silver Plate DC Power Connectors 2.5MM ROUND W/NUT Conn Power F 3 POS Solder ST Thru-Hole 3 Terminal 1 Port JACK, SOCKET, DC, 12VDC, 5A Connector;MiniaturePowerJack;0.475in.;0.1;5/16-32NEF-2A;SolderLug Applied-voltage source socket, straight 2.5 mm 5.5 mm, 712A, Switchcraft Switchcraft 直向 面板安装 直流电源插座, 5A, 12 V 直流, 镀银触点
760
Switchcraft Inc.
CONN PLUG MINI POWER 2COND BLACK 2.5mm Straight DC Power Plug Rated At 5A, Cable Mount, Length 36.1mm, Tin Plate DC Power Connectors DC PWR PLG 0.100 1.42L, BLK HANDLE Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port JACK PLUG, DC Conn;AV;Power;Plug;Mini;2.5mm,IDPinSize;Straight;Insulated;Black Power plug without locking 2.5/5.5mm 2.5 mm, 760, Switchcraft Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯
SPC21361
Avnet, Inc.
CONNECTOR, DC POWER, PLUG
