点击放大查看

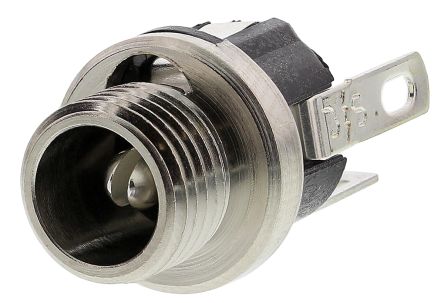

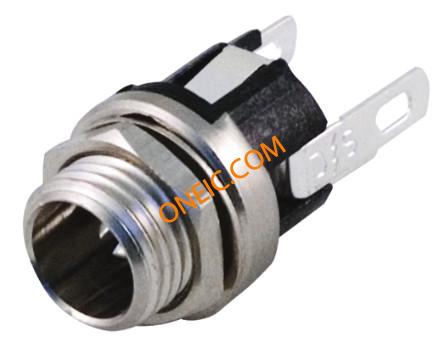

712A
| 制造商 | Switchcraft, Inc. |
| 描述 | CONN POWERJACK SOLDER W/HDWR 2.5mm Straight Panel Mount DC Power Socket 5A, 12V dc, Silver Plate DC Power Connectors 2.5MM ROUND W/NUT Conn Power F 3 POS Solder ST Thru-Hole 3 Terminal 1 Port JACK, SOCKET, DC, 12VDC, 5A Connector;MiniaturePowerJack;0.475in.;0.1;5/16-32NEF-2A;SolderLug Applied-voltage source socket, straight 2.5 mm 5.5 mm, 712A, Switchcraft Switchcraft 直向 面板安装 直流电源插座, 5A, 12 V 直流, 镀银触点 |
| 分类 |
商业参数
| 产品 | Jacks | 交货时间 | 20 Days |
| 其他名称 | SC1048 | 子类别 | Connector Power |
| 产品类别 | DC Power Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 12VDC | 极数 | :2 |
| 最大额定电流 | 5A | 绝缘电阻 | 1000 MOhms |
| 最小供电电压 | 12VDC | ||
机械参数
| 颜色 | Silver | 宽度 | 0.816in |
| 重量 | 0.001 | 直径 | 11 mm |
| 屏蔽 | Unshielded | 交流输出口 | :1 |
| 端接方式 | Solder Eyelet(s) | 重量（g） | 3.20000 |
| 引脚直径 | 2.5mm | 外壳颜色 | Black |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 导体类型 | MiniaturePowerJack |
| 连接器类型 | Jack | 接触镀层 | Silver |
| 安装样式 | Panel | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 23.3 mm |
| 触点数 | 3 POS | 面板开孔形状 | :5.8mm |
| 接触件端接 | :Solder | 接触镀层厚度 | 2.5 mm |
| 插头/配合插头直径（类型） | 2.5mm ID, 5.5mm OD | 触点材料 - 镀层 | Silver |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Power | 连接器性别 | Male |
| 系列 | Straight DC Power Jacks | 产品特性 | Mounting Hardware, Thread Lock |
| 端口数 | 1 Port | 内部开关 | Single Switch, Normally Closed |
| 位置/触点数量 | 2 Conductors, 3 Contacts | ||
文档与媒体
相关型号
2C1072
Switchcraft
Connector Accessories Jack Cover JACK COVER FOR 2COND PLUGS JACK COVER ASSY - PO DC Power Connectors JACK COVER DUST CAP, PLASTIC JACKCOVERASSY-PO
760K
Switchcraft
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port CONN POWERPLUG LOCKING BLACK DC Power Connectors DC PWR PLG 0.100 1.7L, BLK HAND. LCK JACK PLUG, 5A DC Conn;AV;Power;Plug;Mini;2.5mm,IDPinSize;Straight;Insulated;Locking;Black Power plug with locking 2.5/5.5mm 2.5 mm, 760K, Switchcraft Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯

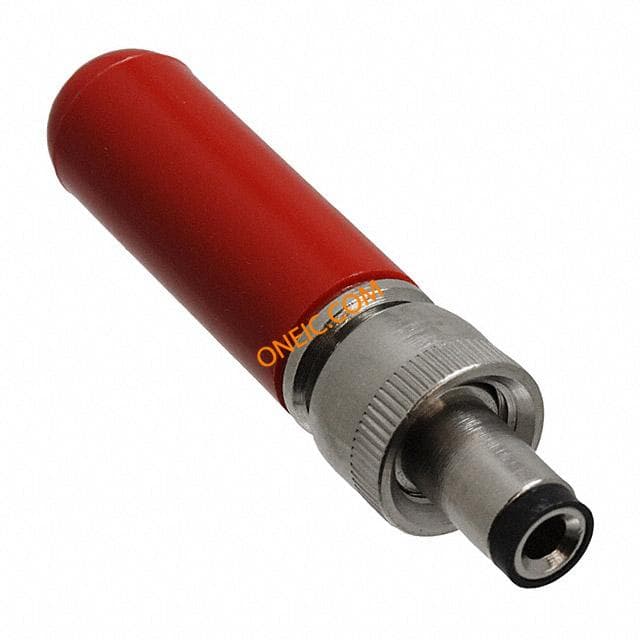

765K
