L6565DTR
| 制造商 | STMicroelectronics N.V. |
| 描述 | Current Mode PWM Controller 400mA 8-Pin SO N T/R SMPS SO-8 SMD IC CTCLR PWM SMPS CM UVLO 8SOIC Switching Controllers Current-Mode Pri Cnt |
| 分类 |
商业参数
| 最小起订量 | 2500 | 单位包装 | 2500 |
| 其他名称 | 497-4584-6 | 标准包装规格 | 2,500 |
| 产品类别 | Switching Controllers | 标准包装数量 | Tape & Reel, Cut Tape |
| 工厂包装数量 | 2500 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | ||
电气参数
| 下降时间 | 40 ns | 功率（瓦） | 650mW |
| 额定电压 | 10.3 | 上升时间（典型） | 40 ns |
| 输出电流 | 400(Max) mA | 供电电流 | 3.5 mA |
| 输出隔离 | Isolated | 供电电压 | 10.3 V to 18 V |
| 输出数量 | 1 | 输出电流1 | 0.7A |
| 开关频率 | 70 kHz | 同步整流 | No |
| 最小输入电压 | 18V | 最小供电电压 | 18 V |
| 输出数量与类型 | 1 | ||
机械参数
| 宽度 | 4(Max) | 包装方式 | Tape and Reel |
| 引脚样式 | Gull-wing | 触点形式 | No |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 封装形式 | 8SO N | 冷却的封装 | SO N |
| 总长度 | 5(Max) | 包装数量 | SO N |
| 位数 | 8 | 外壳尺寸-插件 | 1.65(Max) |
| 供应商器件封装 | 8-SO | ||
产品信息
| 类型 | SMPS | 拓扑 | Flyback |
| 匹配码 | L6565DTR | 控制方式 | Current Mode PWM Controller |
| 标准交期 | 15 weeks | 输出配置 | No |
| 印刷电路板数量 | 8 | ||
环境参数
| 工作温度 | -40 to 150 °C | 最高温度限值 | 150°C |
文档与媒体
相关型号
STEVAL-ISA015V2
stmicroelectronics
Evaluation Board For 3Phase Power Supply Evaluation Board With ESBT Power Management IC Development Tools BOARD & REF DESIGN BOARD EVAL 3PHASE W/ESBT 100W
STEVAL-ISA034V1
stmicroelectronics
Evaluation Board For 10 W 3Phase Auxiliary Power Supply Based On The L6565 And Stw3N150 Evaluation Board Power Management IC Development Tools 10W 3Phase Aux Pwr Supply BRD BOARD EVAL L6565/STW3N150
STEVAL-ISA016V1
STMicroelectronics
Power Management IC Development Tools QUASI-RESONANT Flyback Converter Power Supply For STB Based On L6565 Evaluation Board BOARD EVAL L6565 EU220V BASED
STEVAL-TSP001V1
stmicroelectronics
Power Over Ethernet Demonstration Board Based On The L6565 Power Management IC Development Tools PoE Eval Brd EvalBoard STHS4257A PoE Powere BOARD EVAL POE STHS4257A/L6565D
STEVAL-ISC001V1
stmicroelectronics
Evaluation Board For 30 W ACDC Adapter Based On The L6565 Power Management IC Development Tools 30W AC-DC Adapter Based on L6565 BOARD EVAL BASED ON L6565 Evaluation Board 30 W AC-DC Adapter Based on L6565
STEVAL-ISA019V2
stmicroelectronics
QuasiResonant Wide Range SMPS Demonstration Board Based On The L6565 For 3Phase Applications Power Management IC Development Tools BOARD & REF DESIGN BOARD EVAL SMPS L6565 3PHASE APP

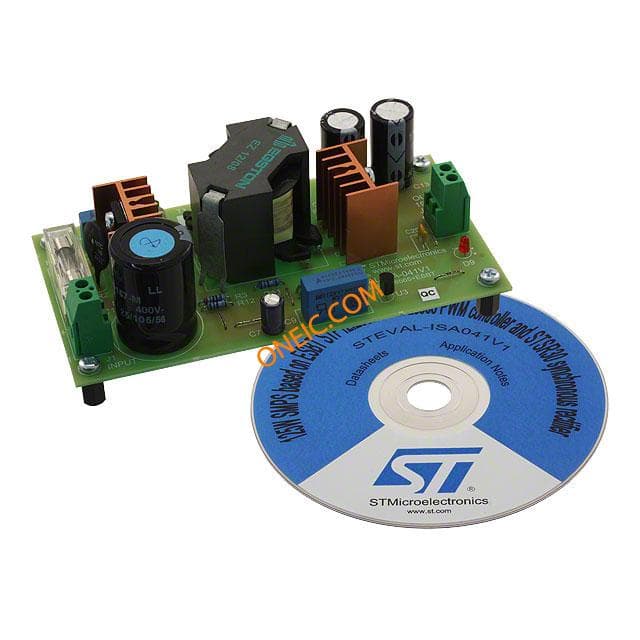

STEVAL-ISA041V1
stmicroelectronics
SMPS Based 125 W On The STP12Ie95F4 ESBT Switch With L6565 PWM Controller Power Management IC Development Tools 125W SMPS STP12IE95X L6565 PWM STSR30 REC BOARD EVAL STP12IE95F4
STEVAL-ISA030V1
stmicroelectronics
Evaluation Board For 6 W 3Phase SMPS For Metering Based On ESBT Power Management IC Development Tools 6W 3Phase SMPS for Metering BOARD 6W 3PH SMPS METERING ESBT Evaluation Board Based on ESBT?6 W 3-phase SMPS for Metering
STEVAL-ISA031V1
stmicroelectronics
Evaluation Board For 40 W Auxiliary 3Phase Power Supply Based On The L6565 And STW4N150 Power Management IC Development Tools 40W Auxiliary 3Phase Pwr Supply BOARD EVAL L6565/STW4N150 BASED
STEVAL-ISA057V1
stmicroelectronics
Demonstration Board Based On STC03DE220HV And L6565 PWM Controller Power Management IC Development Tools EVAL BOARD ISA057V1 BOARD DEMO STC03DE220HV/ L6565
STEVAL-ISA017V1
stmicroelectronics
Power Supply For Stb Based On L6565 Evaluation Board Power Management IC Development Tools BOARD & REF DESIGN POWER SUPPLY FOR STB US-110V
