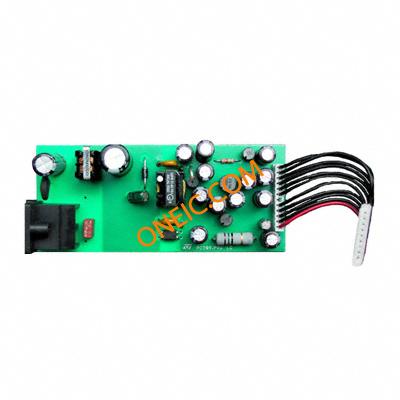

点击放大查看
STEVAL-ISA016V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Power Management IC Development Tools QUASI-RESONANT Flyback Converter Power Supply For STB Based On L6565 Evaluation Board BOARD EVAL L6565 EU220V BASED |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
电气参数
| 额定输出功率 | 17W | 额定电压 | 185 V to 265 V |
| 输出电流 | 1.7A, 1A, 700mA, 500mA, 450mA, 40mA | 稳压器拓扑 | Flyback |
| 最小输入电压 | 1.23V, 2.5V, 3.3V, 5V, 8V, 12V | ||
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | AC/DC Converters | 内容 | Board |
| 主要用途 | AC/DC, Primary Side | 输出及类型 | 6, Non-Isolated |
| 工具类型/特性 | L6565 | 使用的IC/零件 | L6565 |
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | ||
文档与媒体
相关型号
L6565DTR
stmicroelectronics
Current Mode PWM Controller 400mA 8-Pin SO N T/R SMPS SO-8 SMD IC CTCLR PWM SMPS CM UVLO 8SOIC Switching Controllers Current-Mode Pri Cnt
¥2.9050
详情
L6565N
stmicroelectronics
Current Mode PWM Controller 400mA 8-Pin Mini-PDIP SMPS PWM CONTRO IC CTCLR PWM SMPS CM UVLO 8DIP Switching Controllers Current-Mode Pri Cnt
¥2.2576
详情
L6565D
stmicroelectronics
Current Mode PWM Controller 400mA 8-Pin SO N Tube SMPS SO-8 SMD IC CTCLR PWM SMPS CM UVLO 8SOIC L6565D, PWM Current Mode Controller, 400mA Flyback, 8-Pin SOIC Switching Controllers Current-Mode Pri Cnt SMPS CONTROLLER, 6565, SOIC8 IC,L6565D PFC IC SO-8, L6565D, ST , PWM 电流模式控制器, 400 mA, 反激式, 8针 SOIC封装
¥2.2576
详情
