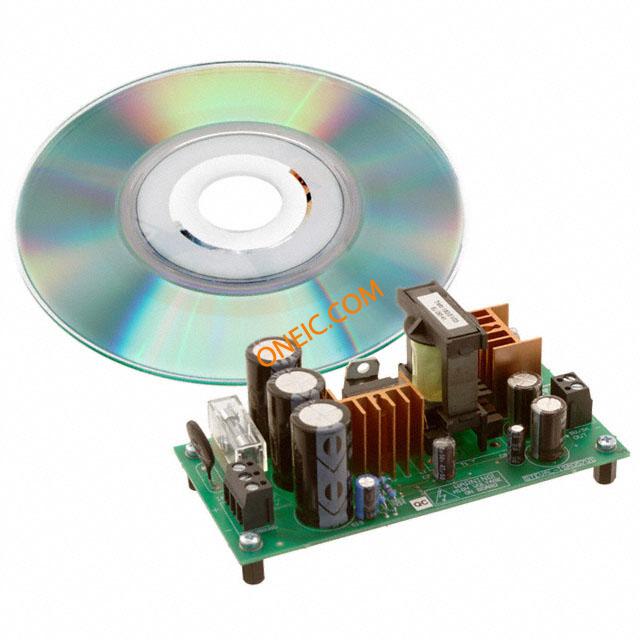

STEVAL-ISA057V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Demonstration Board Based On STC03DE220HV And L6565 PWM Controller Power Management IC Development Tools EVAL BOARD ISA057V1 BOARD DEMO STC03DE220HV/ L6565 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 125 V to 1250 V | 输出电流 | 3A |
| 稳压器拓扑 | Buck | 开关频率 | 30kHz |
| 最小输入电压 | 5V | ||
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 58 mm x 120 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Software |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | L6565 | 射频系列/标准 | STC03DE220HV |
| 使用的IC/零件 | L6565, STC03DE220HV | ||
相关型号
L6565DTR
stmicroelectronics
Current Mode PWM Controller 400mA 8-Pin SO N T/R SMPS SO-8 SMD IC CTCLR PWM SMPS CM UVLO 8SOIC Switching Controllers Current-Mode Pri Cnt
E-L6565D
stmicroelectronics
Current Mode PWM Controller 400mA 8-Pin SO N Current Mode PWM Controllers Current-Mode Pri Cnt IC CTRLR PWM SMPS CM UVLO 8SOIC
E-L6565N
stmicroelectronics
Current Mode PWM Controller 400mA 8-Pin Mini-PDIP Current Mode PWM Controllers Current-Mode Pri Cnt IC CTRLR PWM SMPS CM UVLO 8DIP Switching Controllers Current-Mode Pri Cnt
L6565N
stmicroelectronics
Current Mode PWM Controller 400mA 8-Pin Mini-PDIP SMPS PWM CONTRO IC CTCLR PWM SMPS CM UVLO 8DIP Switching Controllers Current-Mode Pri Cnt
L6565D
stmicroelectronics
Current Mode PWM Controller 400mA 8-Pin SO N Tube SMPS SO-8 SMD IC CTCLR PWM SMPS CM UVLO 8SOIC L6565D, PWM Current Mode Controller, 400mA Flyback, 8-Pin SOIC Switching Controllers Current-Mode Pri Cnt SMPS CONTROLLER, 6565, SOIC8 IC,L6565D PFC IC SO-8, L6565D, ST , PWM 电流模式控制器, 400 mA, 反激式, 8针 SOIC封装
