点击放大查看

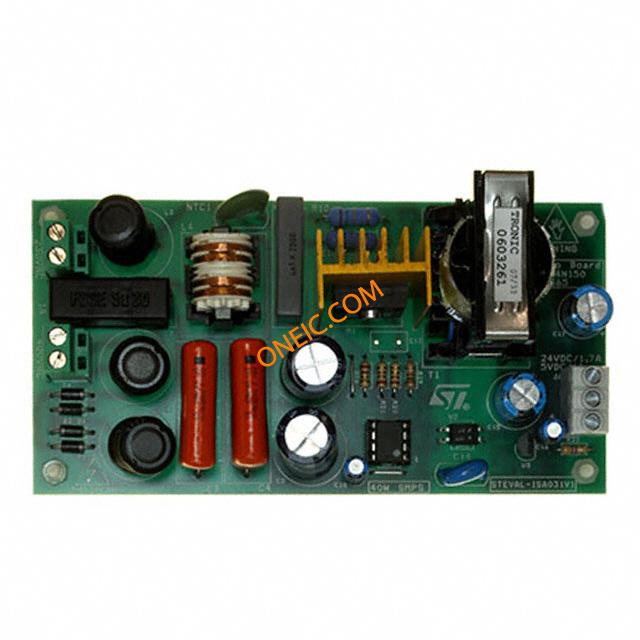

STEVAL-ISA031V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | Evaluation Board For 40 W Auxiliary 3Phase Power Supply Based On The L6565 And STW4N150 Power Management IC Development Tools 40W Auxiliary 3Phase Pwr Supply BOARD EVAL L6565/STW4N150 BASED |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定输出功率 | 40W | 额定电压 | 185 V to 460 V |
| 输出电流 | 1.7A, 1A | 供电电压 | 24V, 5V |
| 稳压器拓扑 | Flyback | 最大额定电流 | 1.7A, 1A |
| 最小输入电压 | 24V, 5V | ||
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
| 供应商器件封装 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 应用领域 | AC/DC, Primary Side | 主要用途 | AC/DC, Primary Side |
| 输出及类型 | 2, Isolated | 工具类型/特性 | L6565, STW4N150 |
| 使用的IC/零件 | L6565, STW4N150 | ||
