点击放大查看
TSW-102-05-L-S
| 制造商 | Samtec, Inc. |
| 描述 | Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole CONN HEADER 2POS .100" SGL GOLD HEADER, 2.54MM, THT VERT, 2WAY |
| 分类 |
商业参数
| 其他名称 | SAM1015-02 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366930 |
电气参数
| 最大额定电流 | 7.6/Contact | 最小输入电压 | 550VAC |
机械参数
| 颜色 | Black | 深度 | 2.54 |
| 间距 | 0.100" (2.54mm) | 高度 | 5.21 |
| 重量 | 0.01 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 5.08 |
| 触点数 | 2 | 接触件端接 | :Through Hole Vertical |
| 位数 | 2 | 接触长度 - 配合 | 0.105" (2.67mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | :TSW | 加载位置数 | All |
文档与媒体
相关型号
SSQ-102-03-T-S-RA
samtec inc.
Conn Socket Strip SKT 2 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 2PS R/A SGL TIN

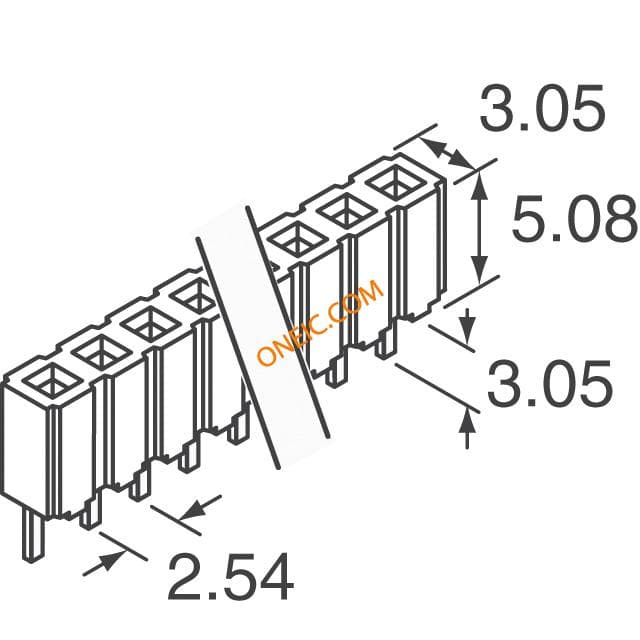

CES-102-01-S-S
samtec inc.
Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT 2POS .100" SNGL GOLD
SSW-102-02-G-S-RA
samtec inc.
Conn Socket Strip SKT 2 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 2POS R/A SGL AU Samtec SSW Series 2.54mm 2 Way 1 Row Right Angle PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, R/A SINGLE, 2WAY Samtec SSW 系列 2路 直角 2.54mm节距 通孔 印刷电路板插座, 板对板
SSQ-102-02-T-S-RA
samtec inc.
Conn Socket Strip SKT 2 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 2POS SGL R/A TIN

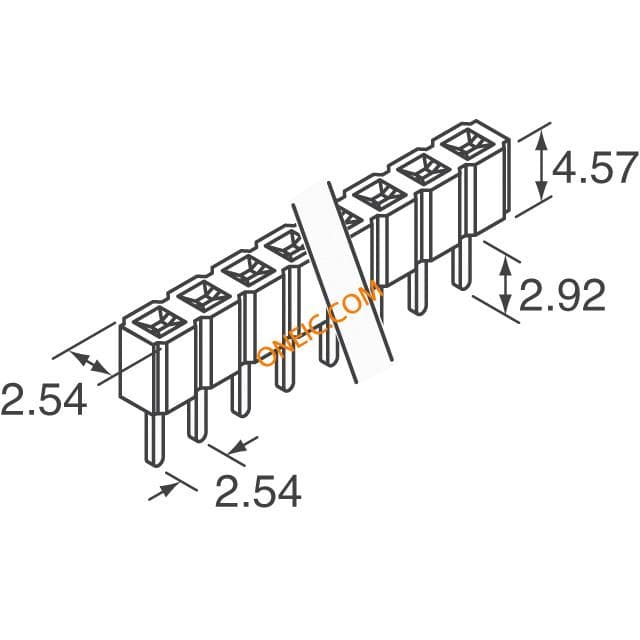

SLW-102-01-G-S
