点击放大查看

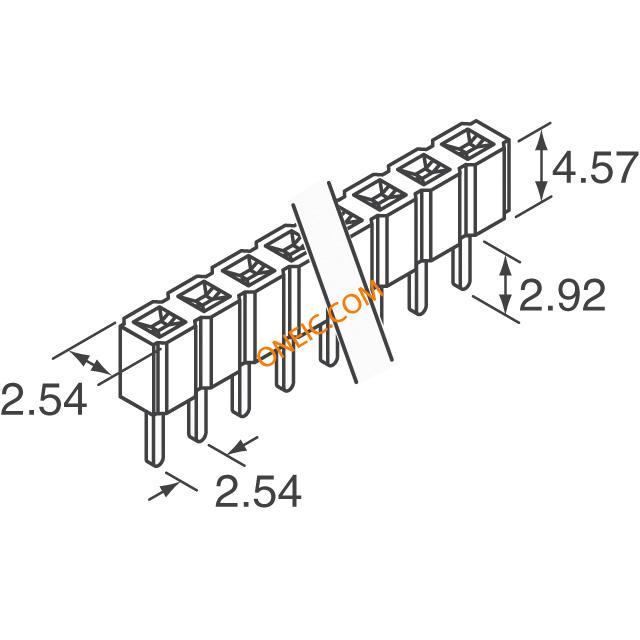

SLW-102-01-S-S
| 制造商 | Samtec, Inc. |
| 描述 | Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 2POS SGL 30GOLD SOCKET, 2.54MM, 1X2WAY |
| 分类 |
商业参数
| 其他名称 | SAM1091-02 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 3 A |
| 最小输入电压 | 550VAC | 最小供电电压 | 550VAC |
机械参数
| 颜色 | Black | 深度 | 2.54 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 4.57 mm |
| 重量 | 0.0002 | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 5.08 mm |
| 板面高度 | 0.180" (4.57mm) | 触点数 | 2 |
| 接触件端接 | :Through Hole Vertical | 位数 | 2 |
| 接触镀层厚度 | 30µin (0.76µm) | 堆叠高度（配合） | 0.240" (6.09mm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | :- | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 125C | ||
文档与媒体
相关型号
TSW-102-07-G-S
samtec inc.
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 2POS .100" SGL GOLD HEADER, 2.54MM, THT VERT, 2WAY
TSW-102-22-L-S-RA
samtec inc.
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole CONN HEADER 2POS .100" SNGL R/A HEADER, 2.54MM, THT, R/A, 2WAY
HMTSW-102-07-G-S-240
samtec inc.
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole CONN HEADER 2POS .100" T/H GOLD
HTSW-102-07-TM-S
samtec inc.
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole CONN HEADER 2POS .1" T/H

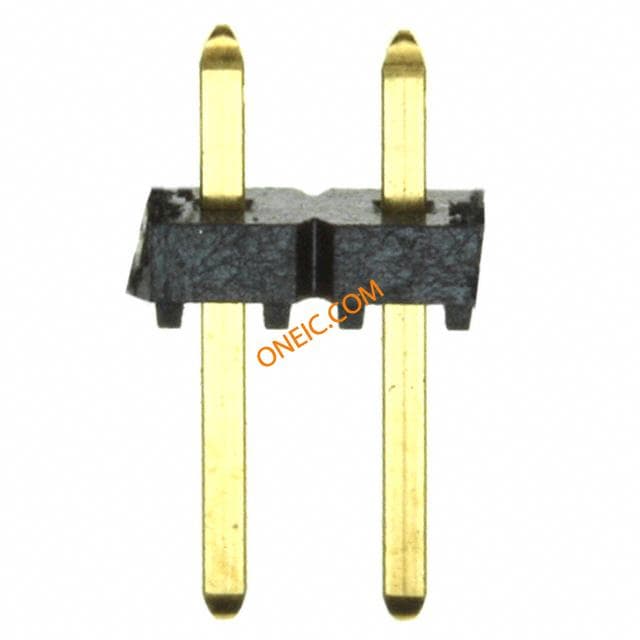

TLW-102-05-G-S
