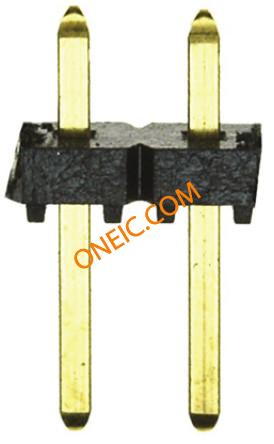

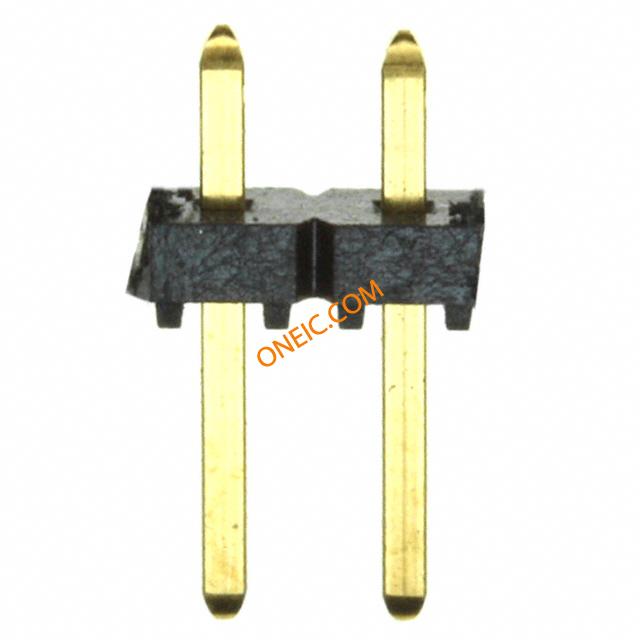

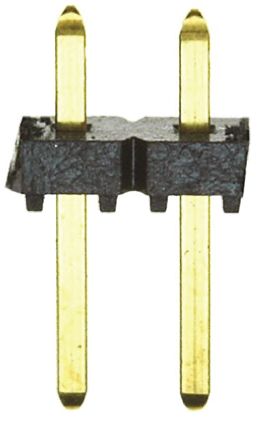

TLW-102-05-G-S

点击放大查看

TLW-102-05-G-S

制造商
Samtec, Inc.
描述Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole CONN HEADER .100" 2POS SGL GOLD Samtec TLW Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A HEADER, 2.54MM, SINGLE, 2WAY Samtec TLW 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称SAM1098-02标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85369010

电气参数

最大额定电流3A

机械参数

颜色Black深度2.48 mm
间距2.54 mm高度4.19 mm
重量0.001包装方式Bulk
端接方式Solder触头类型Male Pin
引脚间距:2.54mm外壳颜色Black
安装类型Straight连接器类型Header, Unshrouded
接触镀层Gold Over Nickel安装样式Through Hole
排数1触头材料Phosphor Bronze
壳体材料Liquid Crystal Polymer总长度5.08 mm
连接器颜色:Black触点数2
接触件端接:Through Hole Vertical位数2
接触长度 - 配合0.105" (2.67mm)接触镀层厚度10µin (0.25µm)

产品信息

类型Unshrouded Header连接器性别HDR
系列TLW加载位置数All

环境参数

工作温度-55C to 125C

文档与媒体

PDF 文档
TLW_TH.PDF
PDF 文档
82119.pdf
