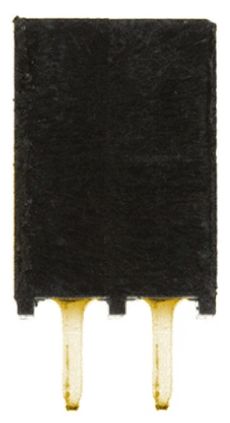

SSQ-102-01-G-S

点击放大查看

SSQ-102-01-G-S

制造商
Samtec, Inc.
描述Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 2POS SNGL GOLD Samtec SSQ Series 2.54mm 2 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, SINGLE, 2WAY Samtec SSQ 系列 2路 直 2.54mm节距 通孔 印刷电路板插座, 板对板
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称SAM1180-02标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85369010

电气参数

额定电压550 V ac接触电阻10 mohm
最大额定电流7.6A最小输入电压550VAC
最小供电电压550VAC

机械参数

颜色Black深度2.41 mm
间距2.54 mm高度8.51 mm
重量0.001包装方式Bulk
端接方式Solder触头类型Female Socket
引脚间距:2.54mm外壳颜色Black
安装类型Through Hole连接器类型Receptacle
接触镀层Gold Over Nickel安装样式Through Hole
排数1触头材料Phosphor Bronze
壳体材料Liquid Crystal Polymer总长度5.59 mm
连接器颜色:Black触点数2
接触件端接:Through Hole Vertical位数2
接触镀层厚度20µin (0.51µm)

产品信息

类型Socket Strip连接器性别SKT
系列SSQ加载位置数All

环境参数

工作温度-55C to 125C

文档与媒体

PDF 文档
SSW, SSQ Spec Sheet - Thru Hole
PDF 文档
82032.pdf
