点击放大查看

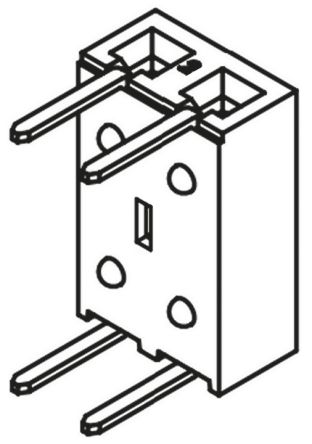

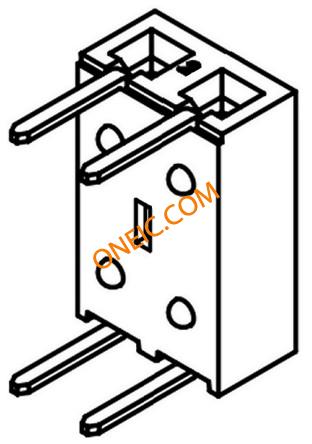

BCS-102-L-S-HE

制造商	Samtec, Inc.
描述	Conn Socket Strip SKT 2 POS 2.54mm Solder RA Thru-Hole Conn Socket Strip SKT 2 POS 2.54mm Solder RA Thru-Hole Bulk CONN RCPT 2POS .100" SNGL HORZ Samtec BCS Series 2.54mm 2 Way 1 Row Right Angle PCB Socket Through Hole Board to Board Samtec BCS 系列 2路直角 2.54mm节距通孔印刷电路板插座, 板对板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	30 Days	其他名称	SAM1009-02
子类别	Connector Headers and PCB Receptacles	标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压	450 V ac	接触电阻	10
最大额定电流	5.9A	最小输入电压	450VAC

机械参数

颜色	Black	深度	8.13
间距	2.54 mm	高度	3.18
包装方式	Bulk	方向	直角
端接方式	Solder	外壳颜色	Black
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	排数	1
触头材料	Phosphor Bronze	壳体材料	Liquid Crystal Polymer
总长度	5.08	端接排数	通孔
板面高度	0.125" (3.17mm)	触点数	2
位数	2	接触镀层厚度	10µin (0.25µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	BCS	加载位置数	All

文档与媒体

PDF 文档

bcs.pdf

PDF 文档

81213.pdf
