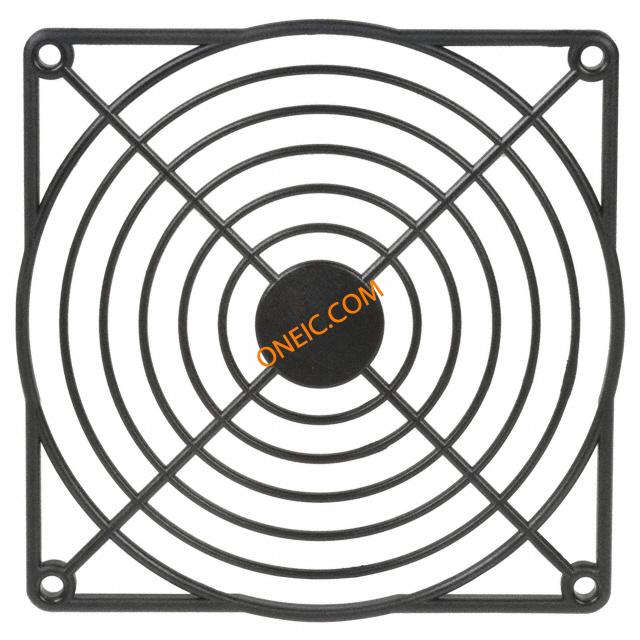

09120-G
| 制造商 | Qualtek Electronics Corp. |
| 描述 | Fan Cords & Accessories PLASTIC GUARD 120MM FINGER GUARD 120MM PLASTIC Fan Accessories PLASTIC GUARD 120MM Thrml Mgmt Access Fan Guard FINGER GUARD FanGuard;PC500-739GF10%/L94VO;4.5in.;0.260in.;0.18in. Fan Accessories Plastic Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5 |
| 分类 |
商业参数
| 产品 | Fan Accessories | 交货时间 | 112 Days |
| 子类别 | Thermal Management Accessories | 产品类别 | Fan Cords & Accessories |
| 标准包装数量 | 430 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 84145920 |
机械参数
| 颜色 | :Black | 深度 | :6.6mm |
| 宽度 | :115.1mm | 长度 | 104.8 mm |
| 重量 | 0.018 | 风扇类型 | :120mm |
| 材料（通用） | Polycarbonate (PC) | 包装方式 | Bulk |
| 高度（最大） | :115.1mm | 适配风扇尺寸 | 120 mm |
| 屏蔽材料 | :Plastic | 风扇附件类型 | Finger Guard |

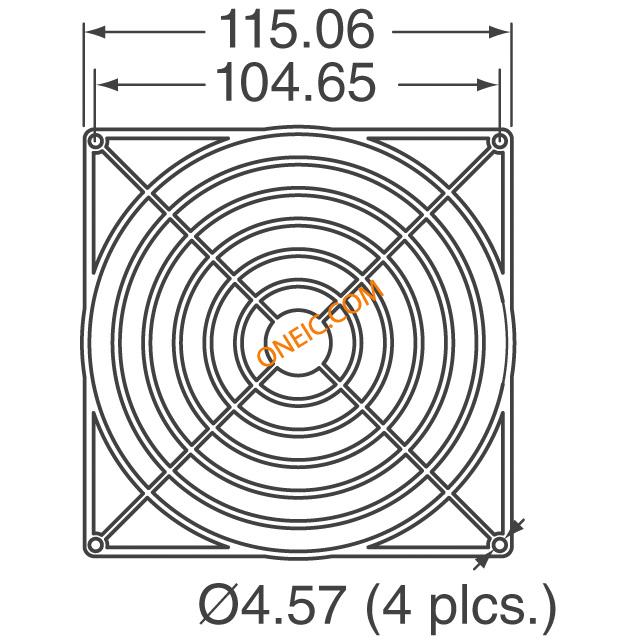

| 安装孔间距 | :104.8mm | ||
产品信息
| 类型 | Fan Guard, Plastic | 产品特性 | 6 Rings |
| 附件类型 | :Finger Guard | 适用产品/相关产品 | :Qualtek 120mm Axial Fans |
