点击放大查看

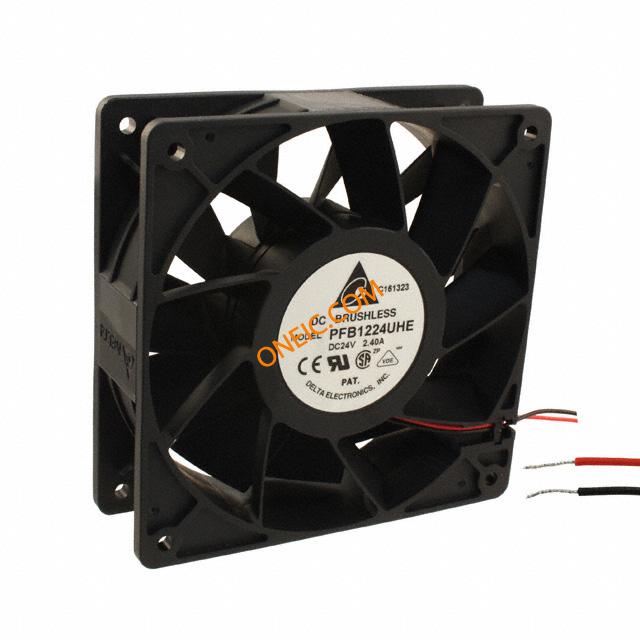

PFB1224UHE

制造商	Delta Electronics, Inc.
描述	DC Fan Ball Bearing 24V 2A 48W 5500RPM 252.85CFM 66.5dB Flange Mount 24V DC FAN 120X120X38 MM
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

其他名称

603-1461

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

噪声	66.5 dB(A)	转速	Clockwise
输入范围	14 to 26.5	功率（瓦）	48W
额定功率	48	电压范围	14 ~ 26.5VDC
额定电压	24VDC	输出电流	2
最大额定电流	2A

机械参数

RPM	5500 RPM	深度	120
高度	38	重量	0.838 lb (380.11g)
风量	252.8 CFM (7.16m³/min)	风扇类型	Tubeaxial
端接方式	Lead Wire	轴承类型	Ball
安装类型	Flange Mount	静压	1.412 in H2O (351.7 Pa)
壳体材料	Plastic	总长度	120
刀片材料	Plastic	框架材料	Plastic
最大压力	1.412inH2O	尺寸/外形	Square - 120mm L x 120mm H x 38mm W

环境参数

额定寿命

70000 hrs @ 40°C

工作温度

14 ~ 140°F (-10 ~ 60°C)

文档与媒体

PDF 文档

PFB 120x120x38MM
