点击放大查看

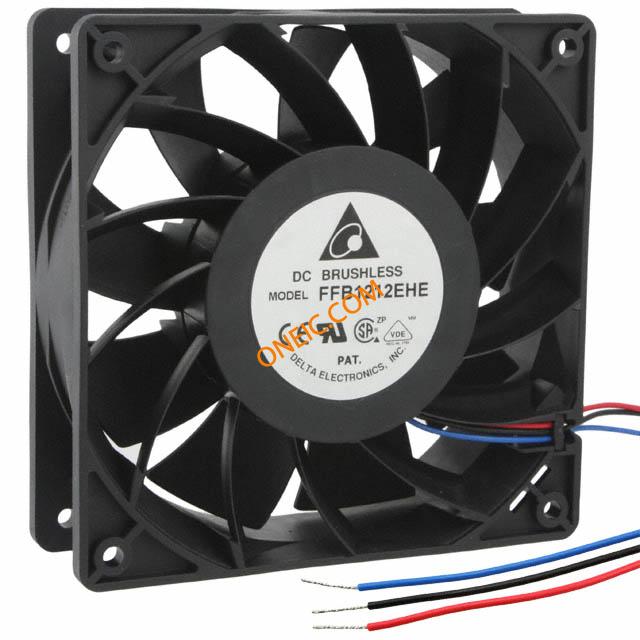

FFB1212EHE-F00

制造商	Delta Electronics, Inc.
描述	DC Fan Ball Bearing 12V 2A 24W 4000RPM 190CFM 59dB Flange Mount FAN DC AXIAL 12V 120X38 TAC OUT
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
抗辐射加固	No

电气参数

噪声	59 dB(A)	转速	Clockwise
频率	Not Required	输入范围	7V to 13.2V
最大功率	24.0W	噪声系数	59 dB
功率（瓦）	24.0W	额定功率	24 W
电压范围	7 ~ 13.2VDC	额定电压	12VDC
输出电流	2	供电电流	2 A
最大额定电流	2A	噪声系数（dB典型值 @ f）	59 dB(A)

机械参数

RPM	4000 RPM	尺寸	Square - 120mm L x 120mm H x 38mm W
深度	120 mm	高度	38 mm
重量	0.816 lb (370.13g)	风量	190.0 CFM (5.38m³/min)
直径	Not Required mm	风扇类型	Tubeaxial
端接方式	Lead Wire	轴承类型	Ball
安装类型	Flange Mount	安装样式	Flange
操作力	0.700 in H2O (174.4 Pa)	静压	0.700 in H2O (174.4 Pa)
壳体材料	Plastic	总长度	120 mm
刀片材料	Plastic	框架材料	Plastic
最大压力	0.7inH2O	尺寸/外形	Square - 120mm L x 120mm H x 38mm W

产品信息

类型	DC Fan	系列	FFB
已删除	Compliant	产品特性	Speed Sensor (Tach)

文档与媒体

PDF 文档

FFB 120x120x38MM
