AFB1224SHE-F00

制造商	Delta Electronics, Inc.
描述	24V DC FAN 120X120X38 MM
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

标准包装数量

电气参数

噪声	53 dB(A)	功率（瓦）	12.0W
电压范围	7 ~ 27.6VDC	额定电压	24VDC
最大额定电流	0.5A

机械参数

RPM	3700 RPM	重量	0.564 lb (255.83g)
风量	151.8 CFM (4.30m³/min)	风扇类型	Tubeaxial
端接方式	3 Wire Leads	轴承类型	Ball
静压	0.571 in H2O (142.2 Pa)	刀片材料	Plastic
框架材料	Plastic	尺寸/外形	Square - 120mm L x 120mm H x 38mm W

产品信息

产品特性

Speed Sensor (Tach)

环境参数

额定寿命

70000 hrs @ 40°C

工作温度

14 ~ 140°F (-10 ~ 60°C)

文档与媒体

PDF 文档

AFB 120x120x38mm

相关型号

09123-G

Qualtek

Fan Cords & Accessories 120mm PLASTIC FAN GD PLASTIC FAN GUARD 120MM Fan Accessories 120mm PLASTIC FAN GD Thrml Mgmt Access Fan Guard Plastic FanGuard,Plastic,41/2Inch(120MM)

¥5.9840

详情

08218

Qualtek

Fan Cords & Accessories FAN ACCESSORY WIRE FORM FAN GUARD 120MM Fan Accessories FAN ACCESSORY

¥4.3452

详情

08141

Qualtek

Fan Cords & Accessories WIRE GUARD 120MM FINGER GUARD 120MM METAL Fan Accessories WIRE GUARD 120MM Thrml Mgmt Access Fan Guard 120mm Carbon Steel FINGER GUARD FanGuard;SAE1008;4.5in.;NickelChrome;0.063in.(RingMaterial);7 Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5

¥4.2840

详情

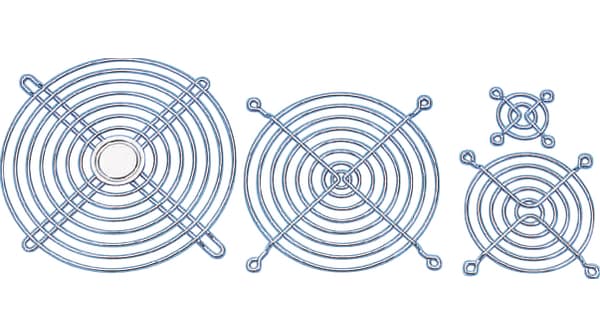

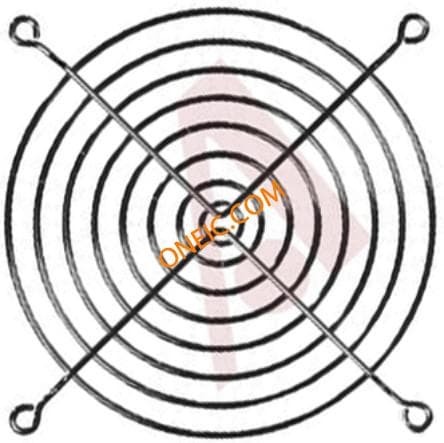

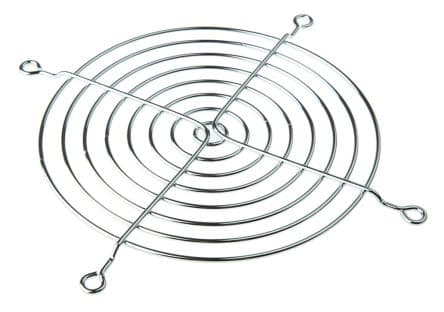

G109-15A

Orion Fans

Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 120mm FAN GUARD METAL 120MM Fan Guard; Steel (Wire); 4.72 in.; Electroplated Nickel Chrome Fan Accessories Wire FanGuard Chrome for Fan Size 120mm Thrml Mgmt Access Finger Guard 120mm FanGuard;Steel(Wire);4.72in.;ElectroplatedNickelChrome

¥4.0208

详情

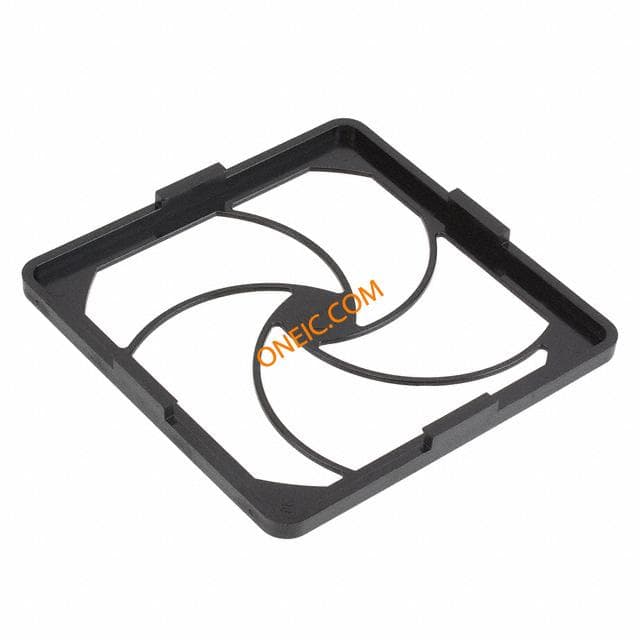

09450-R

Qualtek

Fan Cords & Accessories BLK PLSTC RETAINER PLASTIC FAN GUARD RETAINER 120MM Filter; Fan; 4-1/2 in. Tube Axial Fans; Plastic Fan Accessories BLK PLSTC RETAINER Thrml Mgmt Access Retainer Polybutylene Terephthalate Filter,Fan;4-1/2in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 120 mm - 4 1/2 in. Description: Retainer Only Size Height (in.): 4.87 Size Width (in.): 4.87 Size Thickness (in.): 0.42 Size M/C (in.): --

¥3.3898

详情

暂无图片

R87F-FL120S

Omron Electronics

Fan Cords & Accessories TUBE AXIAL FAN-SCREEN FILTER FILTER SCREEN FOR 120MM FANS Fan Accessories TUBE AXIAL FAN-SCREEN FILTER 欧姆龙(OMRON) 伺服电机

¥44.6080

详情

08139

Qualtek

Fan Cords & Accessories 120mm WIRE FAN GRD WIRE FORM FAN GUARD 120MM Fan Accessories 120mm WIRE FAN GRD FanGuard;Wire;120mm Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5

¥7.0720

详情

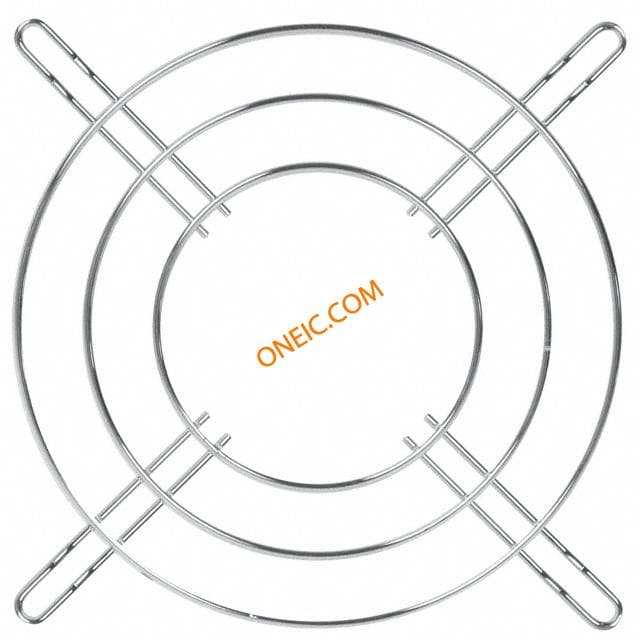

08146
