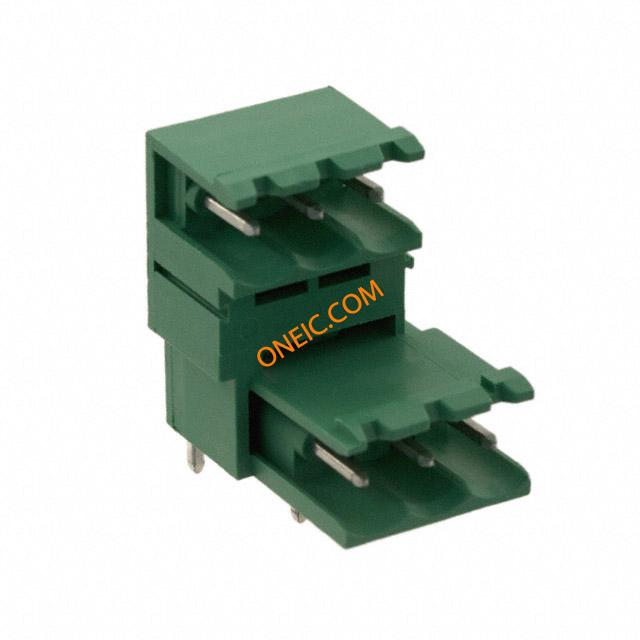

1762059
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 2X3P 5MM HEADER DBL LEVEL Conn Shrouded Header HDR 6 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5MM Header for PCB plug connector MDSTB 2,5/ 3-G Conn;TermBlk;PCB;Header;DblLvl;90DegAngl;Sldr;3Pole;5mmPitch;COMBICON |
| 分类 |
商业参数
| 产品 | Headers | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ULRecognized,CSACertified | 认证机构 | UL,CUL,CSA |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 极数 | 3Poles |
| 输出电流 | 10A | 标称电压 | 320V |
| 最大额定电流 | 10 A | 最小输入电压 | 320V |
| 保护电压（VP）（2416） | 4kV | ||
机械参数
| 颜色 | Green | 深度 | 22.1 |
| 间距 | 0.197" (5.00mm) | 高度 | 23.7 |
| 重量 | 3.307 lbs | 包装方式 | Bulk |
| 端接方式 | Solder | 孔径 | 1.4mm |
| 外壳颜色 | Green | 安装类型 | Right Angle |
| 接触镀层 | Tin | 安装样式 | Soldering |
| 排数 | 2 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 12.5 | 主要材料 | PCB |
| 尺寸/外形 | 15mmLx22.1mmWx30.3mmH | 插针孔直径 | 5mm |
| 端接样式 | Through Hole | 排针方向 | 90°, Right Angle |
| 触点数 | 6 | 位数 | 6 |
| 接线端子类型 | Header, Male Pins, Shrouded (2 Side) | 绝缘材料 - 材质 | PBT |
| 法兰下方引脚尺寸 | 1x1mm | ||
产品信息
| 类型 | Shrouded Header | 级别 | DoubleLevel |
| 连接器性别 | HDR | 系列 | MDSTB |
| 产品特性 | Side Stacking (Interlocking) | 制造商全称 | COMBICON |
| 行业别名 | MDSTB 2, 5/ 3-G | 层数 | 2 |
| 基础产品编号 | MDSTB2,5/3-G | 每层位数 | 3 |
