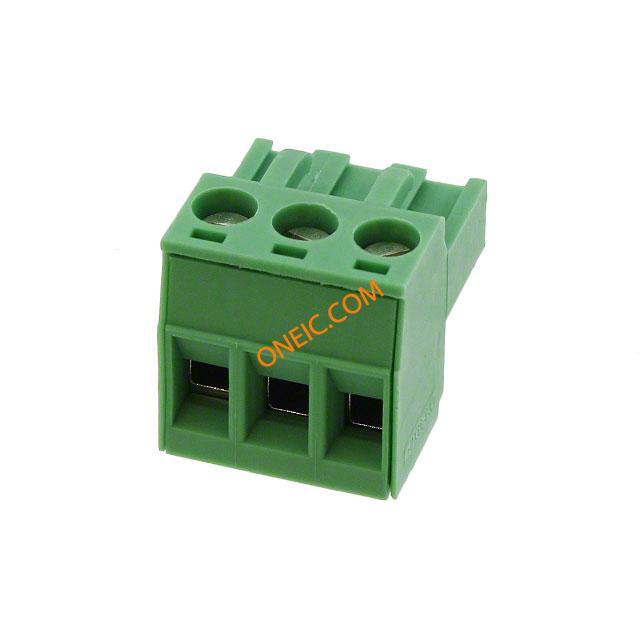

1779848

点击放大查看

1779848

制造商
Phoenix Contact GmbH & Co. KG
描述プラグ着脱可能ターミナルブロック MSTBT2.5/3-ST TERM BLOCK PLUG 3POS STR 5MM Printed-circuit board connector MSTBT 2,5/ 3-ST Pluggable Terminal Blocks MSTBT2.5/3-ST Conn Terminal Blocks F 3 POS 5mm Screw RA Cable Mount 12A Conn Terminal Block F 3 POS 5mm Screw RA Cable Mount 12A Conn;TermBlk;Plug;Screw;3;5mm;24-12AWG;12A;250V;M3
分类
连接器解决方案接线端子螺丝接线端子
对参数有疑问？问 AI 助手

商业参数

产品Plugs交货时间20 Days
商标名COMBICON Control子类别Connector Terminal Blocks
零件号别名2,5/3-ST MSTBT产品类别Pluggable Terminal Blocks
标准包装数量50工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant抗辐射加固No
认证机构UL,cULus,CSA,VDE材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压250 V极数3Poles
最大额定电流12 A最小供电电压250V
保护电压（VP）（2416）4kV

机械参数

颜色Green深度18.2 mm
间距0.197" (5.00mm)高度15 mm
重量4.409 lbs包装方式Bulk
导线线规12-30 AWG端接方式Screw
安装类型Free Hanging (In-Line)接触镀层Tin
安装样式Cable插头进线方向180°
壳体材料Polyamide总长度15 mm
主要材料PCB尺寸/外形18.2mmWx15mmLx15mmH
剥线长度（范围）7mm插针孔直径5mm
端接样式Screw触点数3
交叉孔直径2.5mm^2位数3
接线端子类型Plug, Female Sockets进线位置Front
绝缘材料 - 材质PA线规或范围 - AWG24-12

产品信息

类型Wire to Wire级别SingleLevel
连接器性别F系列MSTBT
产品特性Retention Latches (Non-Wire Side)制造商全称MSTBT
行业别名MSTBT 2, 5/ 3-ST层数1
基础产品编号MSTBT2,5/3-ST每层位数3
