点击放大查看
0707112
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 5.0mm 3 POSITION Conn Shrouded Header HDR 3 POS 5mm Solder Lug ST Panel Mount TERM BLK HEADER FEED-THRU 5MM Conn;TermBlk;PCB;Plug;3;5mm;24-12AWG;Green;12A;320V |
| 分类 |
商业参数
| 产品 | Headers | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 - UL | 10A | UL电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 29.5 |
| 间距 | 0.197" (5.00mm) | 宽度 | 1.378" (35.00mm) |
| 高度 | 17.5 | 重量 | 0.155558 oz |
| 端接方式 | Solder Lug | 外壳颜色 | Green |
| 安装类型 | Straight | 接触镀层 | Tin |
| 安装样式 | Panel / Box - Feed Through | 排数 | 1 |
| 面板厚度 | 0.020 ~ 0.158" (0.5 ~ 4.0mm) | 壳体材料 | Polyamide |
| 总长度 | 35 | 面板安装类型 | Screw Mount - Front Flange |
| 触点数 | 3 | 后面板接线方式 | Quick Connect - 0.110" (2.80mm), Solder Eyelet |
| 前面板接线方式 | Header, Male Pins | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | DFK-MSTB | 产品特性 | Lock Opening |
| 行业别名 | DFK-MSTB 2, 5/ 3-G | 层数 | 1 |
| 每层位数 | 3 | ||
文档与媒体
相关型号
1792537
Phoenix Contact
Pluggable Terminal Blocks 5.00 3P PLUG 270D Conn Terminal Block F 3 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 3POS 270DEG 5MM Printed-circuit board connector MVSTBW 2,5/ 3-ST Conn Terminal Blocks F 3 POS 5mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;3;5mm;30-12AWG;10A;300V;PA
1755477
Phoenix Contact
Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL

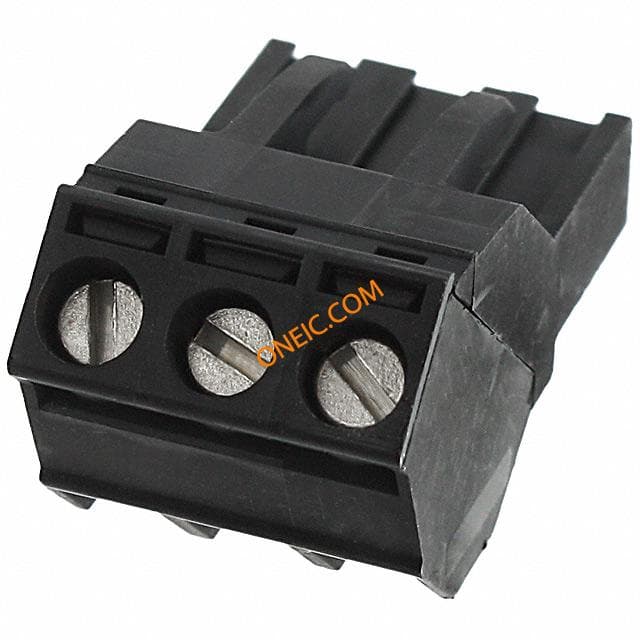

1702136
Phoenix Contact
Pluggable Terminal Blocks SMSTB 2,5/ 3-ST BK PLUG COMPONENT NOMINAL CURRENT 12 A TERM BLOCK PLUG 3POS 225DEG 5MM SMSTB25/3-STBK
1768778
Phoenix Contact
プラグ着脱可能ターミナルブロック 5.00 3P PLUG 45DEG Conn Terminal Block F 3 POS 5mm Screw Cable Mount 12A TERM BLOCK PLUG 3POS 225DEG 5MM Printed-circuit board connector SMSTB 2,5/ 3-ST Pluggable Terminal Blocks 5.00 3P PLUG 45DEG Conn;TermBlk;Plug;Screw;3;5mm;30-12AWG;10A;300V;PA
1779848
Phoenix Contact
プラグ着脱可能ターミナルブロック MSTBT2.5/3-ST TERM BLOCK PLUG 3POS STR 5MM Printed-circuit board connector MSTBT 2,5/ 3-ST Pluggable Terminal Blocks MSTBT2.5/3-ST Conn Terminal Blocks F 3 POS 5mm Screw RA Cable Mount 12A Conn Terminal Block F 3 POS 5mm Screw RA Cable Mount 12A Conn;TermBlk;Plug;Screw;3;5mm;24-12AWG;12A;250V;M3
1765784
Phoenix Contact
Pluggable Terminal Blocks MSTBP 2.5/ 3-ST Conn Terminal Block F 3 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 3POS STR 5MM MSTBP25/3-ST Phoenix Contact COMBICON MSTBP 系列 5mm 节距 3 路 母 绿色 插头, 螺钉端接
1760491
Phoenix Contact
Pluggable Terminal Blocks MVSTBR 2 5/ 3-ST BK TERM BLOCK PLUG 3POS 90DEG 5MM Printed-circuit board connector MVSTBR 2,5/ 3-ST BK AU MVSTBR25/3-STBKAU
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL
0708263
Phoenix Contact
Terminal Block Tools & Accessories HDR HDWR FOR 5.08mm ORDER QTY 2 PER HDR Connector Accessories Screw Set HDWR SET 3X10 SCREW/WASHER/NUT
5030172
Phoenix Contact
Terminal Block Tools & Accessories LOCKING LATCH Connector Accessories Locking Latch Red LOCKING LATCH RED MSTB PCB terminal stop notches DFK-MSTB-R

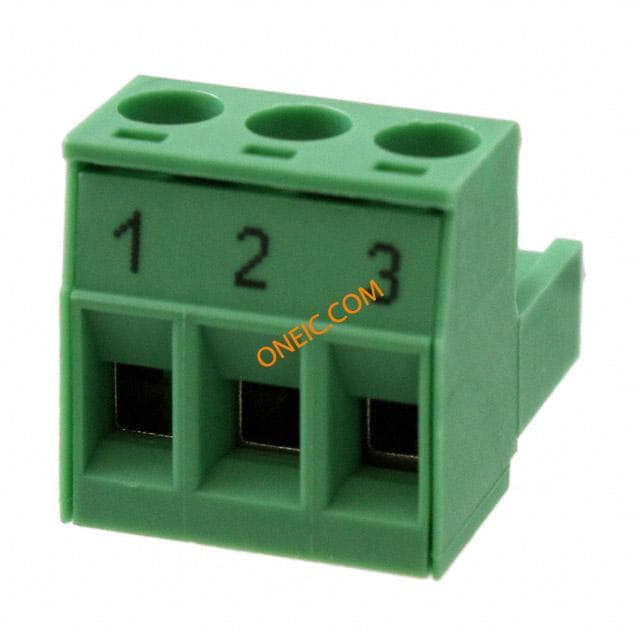

1765344
Phoenix Contact
Pluggable Terminal Blocks 5mm 3P PRE-PRINTED 1-3 LEFT TO RIGHT Conn Terminal Block F 3 POS 5mm Screw 12A TERM BLOCK PLUG 3POS STR 5MM Printed-circuit board connector MSTB 2,5/ 3-ST BD: 1-3 Conn;TermBlk;Plug;Screw;3;5mm;Green;12A;250V;Pre-Printed

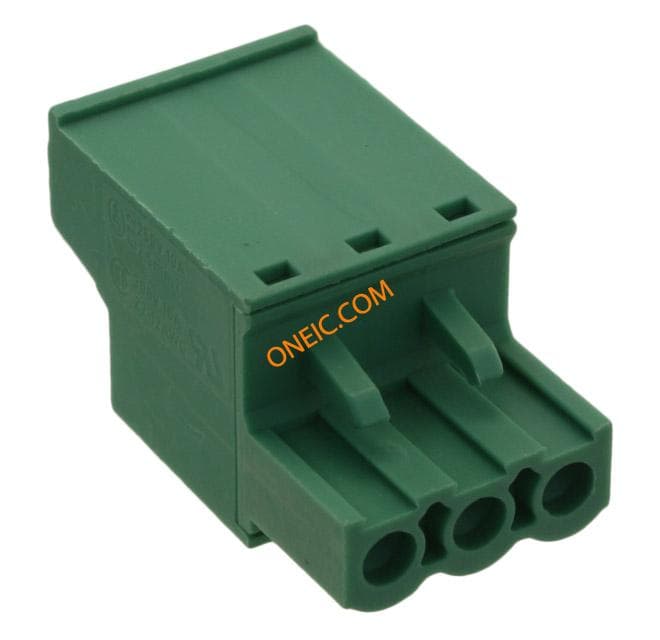

1779424
Phoenix Contact
Pluggable Terminal Blocks FRONT-MSTB 2.5/ 3-ST Conn Terminal Block F 3 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 3POS STR 5MM Printed-circuit board connector FRONT-MSTB 2,5/ 3-ST Conn Terminal Blocks F 3 POS 5mm Screw ST Cable Mount 12A Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Pitch: 5 mm, Color: green, ... Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Pitch: 5 mm, Color: green, Metal surface: Sn FRONT-MSTB25/3-ST Phoenix Contact COMBICON FRONT-MSTB 系列 5mm 节距 3 路 母 绿色 插头, 螺钉端接
1792029
Phoenix Contact
Pluggable Terminal Blocks 5.00 3P PLUG 90DEG Conn Terminal Block F 3 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 3POS 90DEG 5MM Printed-circuit board connector MVSTBR 2,5/ 3-ST Conn Terminal Blocks F 3 POS 5mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;3;5mm;30-12AWG;10A;300V;PA

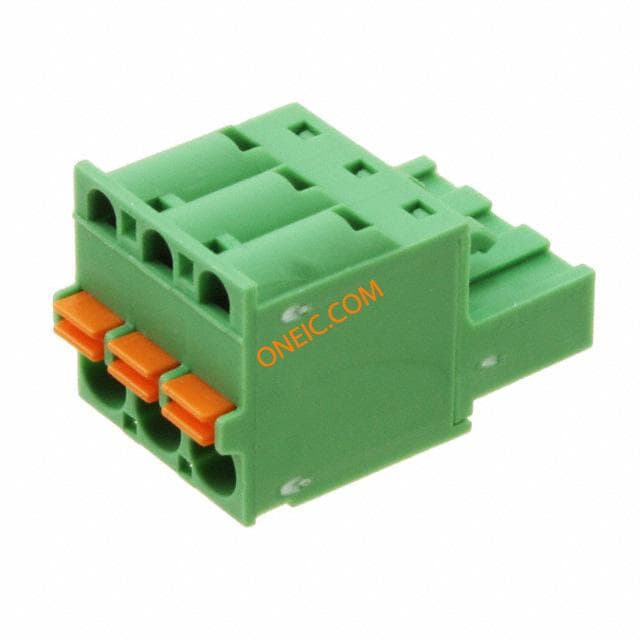

1910364
