点击放大查看

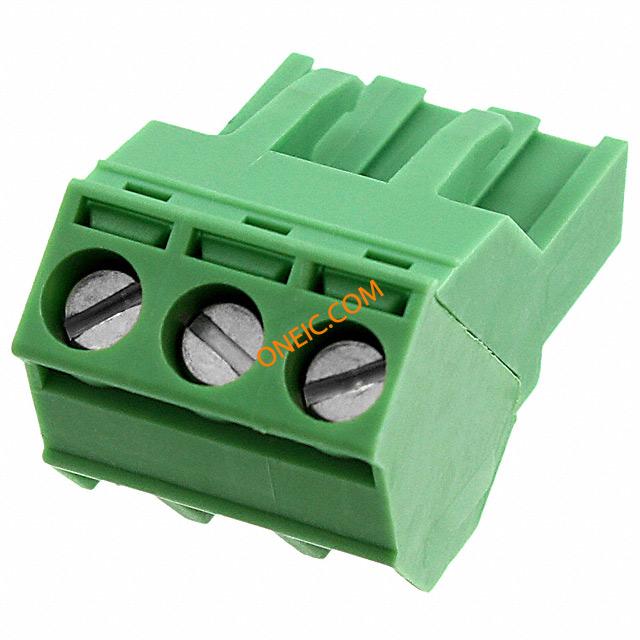

1768778
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | プラグ着脱可能ターミナルブロック 5.00 3P PLUG 45DEG Conn Terminal Block F 3 POS 5mm Screw Cable Mount 12A TERM BLOCK PLUG 3POS 225DEG 5MM Printed-circuit board connector SMSTB 2,5/ 3-ST Pluggable Terminal Blocks 5.00 3P PLUG 45DEG Conn;TermBlk;Plug;Screw;3;5mm;30-12AWG;10A;300V;PA |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 25.5 |
| 间距 | 0.197" (5.00mm) | 高度 | 15.5 mm |
| 重量 | 0.209527 oz | 包装方式 | Bulk |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 安装类型 | Cable Mount | 接触镀层 | Tin |
| 排数 | 1 | 插头进线方向 | 225° |
| 壳体材料 | Polyamide | 总长度 | 15 |
| 端接样式 | Screw | 触点数 | 3 |
| 位数 | 3 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | SMSTB | 产品特性 | Retention Latches (Non-Wire Side) |
| 行业别名 | SMSTB 2, 5/ 3-ST | 层数 | 1 |
| 每层位数 | 3 | ||
相关型号
0708124
Phoenix Contact
Pluggable Terminal Blocks DFK-MSTB 2 5/ 3-G WW TERM BLOCK
1738999
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/ 3-G (13) Conn Wire to Board HDR 3 POS 5mm TERM BLOCK HDR 3POS R/A 5MM MSTB25/3-G(13)
1763045
Phoenix Contact
プラグ着脱可能ターミナルブロック MDSTBV 2 5/ 3-G Conn Shrouded Header HDR 3 POS 5mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5MM Header for PCB plug connector MDSTBV 2,5/ 3-G Pluggable Terminal Blocks MDSTBV 2 5/ 3-G MDSTBV25/3-G
1754452
Phoenix Contact
Pluggable Terminal Blocks 5.00 3P HEADER 90DEG Conn Shrouded Header HDR 3 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 5MM Header for PCB plug connector MSTB 2,5/ 3-G Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;3Pole;5mmPitch;COMBICON
1762059
Phoenix Contact
Pluggable Terminal Blocks 2X3P 5MM HEADER DBL LEVEL Conn Shrouded Header HDR 6 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5MM Header for PCB plug connector MDSTB 2,5/ 3-G Conn;TermBlk;PCB;Header;DblLvl;90DegAngl;Sldr;3Pole;5mmPitch;COMBICON
1757488
Phoenix Contact
Pluggable Terminal Blocks 5.00 3P HEADER 90DEG Conn Shrouded Header HDR 3 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 5MM Header for PCB plug connector MSTBA 2,5/ 3-G Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;3Pole;5mmPitch;COMBICON

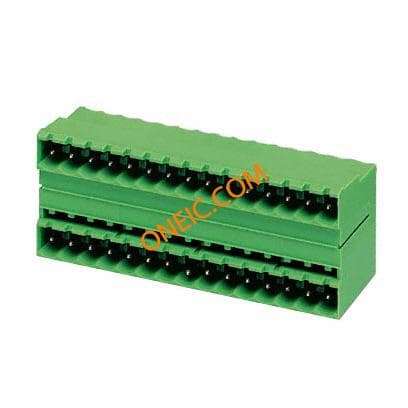

1736687
