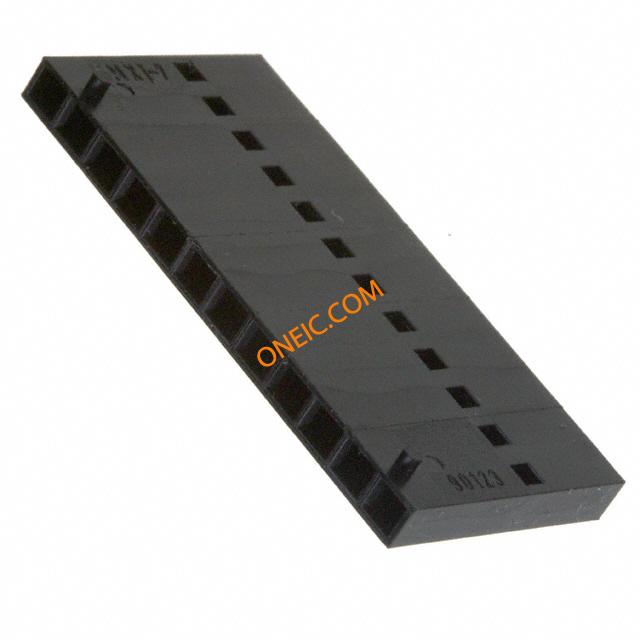

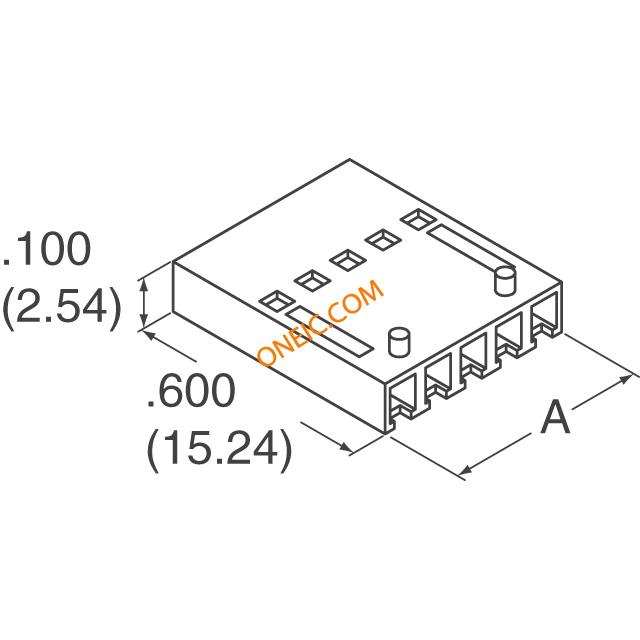

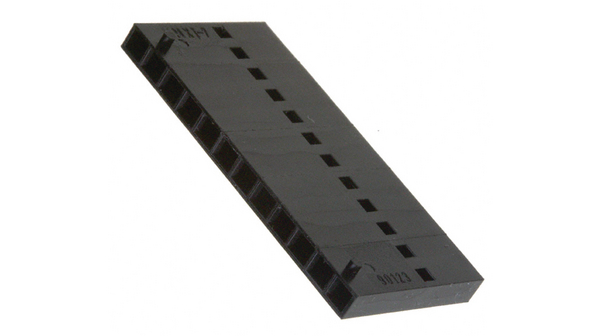

90123-0112
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 12 POS 2.54mm Crimp ST Bag CONN HOUSING 12POS .100" SINGLE 12 way single row housing Headers & Wire Housings 2.54MM CGRIDIII HSG 12P SR W/2POL BTTN 2.54mm Pitch C-Grid III™ Modular Crimp Housing Single Row, 2 Polarizing Buttons, 12 Circuits Crimp housing 1 x 12P, 90123-0112, Molex Molex C-GRID III 系列 2.54mm 节距 12 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901230112 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 极数 | 1 x 12 | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 宽度 | 3.43mm |
| 长度 | 30.48mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Wire | 排数 | 1 |
| 连接器样式 | Free hanging/cable mount | 壳体材料 | PPO |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 第一连接器极性 | Female |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 设计类型 | Female housing | 连接器性别 | RCP |
| 系列 | 90123 | 产品特性 | Polarizing Key |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 基础产品编号 | 90123 | ||
文档与媒体
相关型号
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
90121-0132
molex
Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 12P R/A SR TIN Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tray Pin header 1 x 12P, 90121-0132, Molex

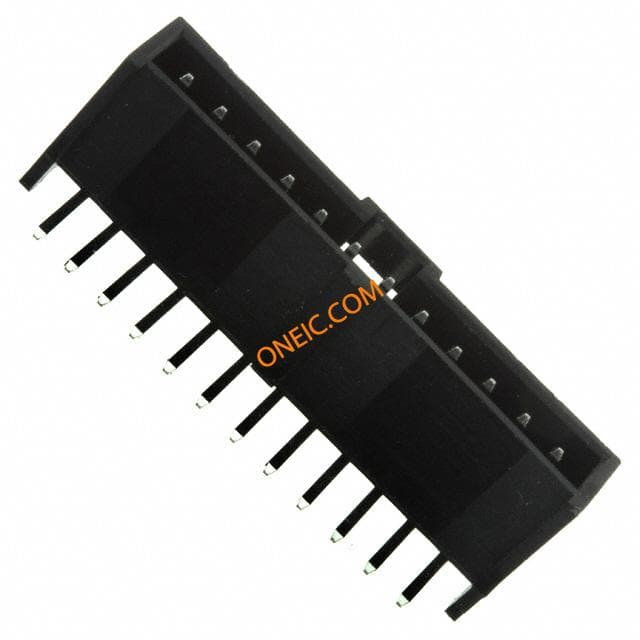

90136-2112
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 12POS .100" R/A TIN Molex 90136 Series 2.54mm Pitch 12 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 12P R/A SR SHRD TIN Molex C-GRID III 系列 2.54mm节距 12路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点

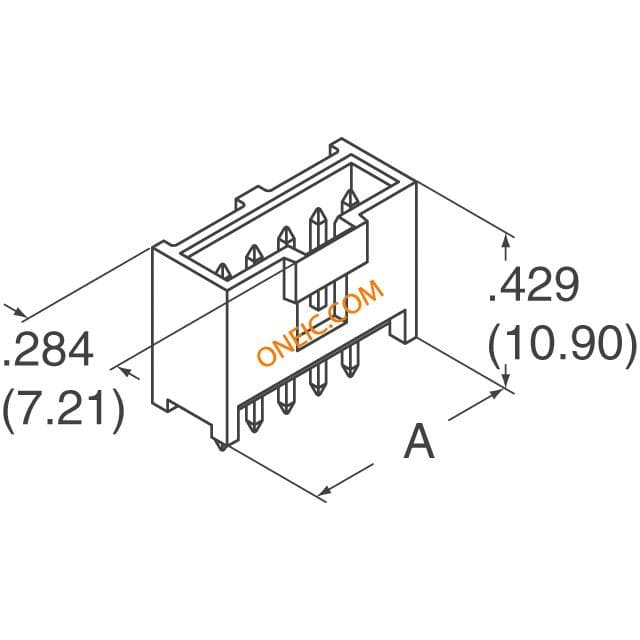

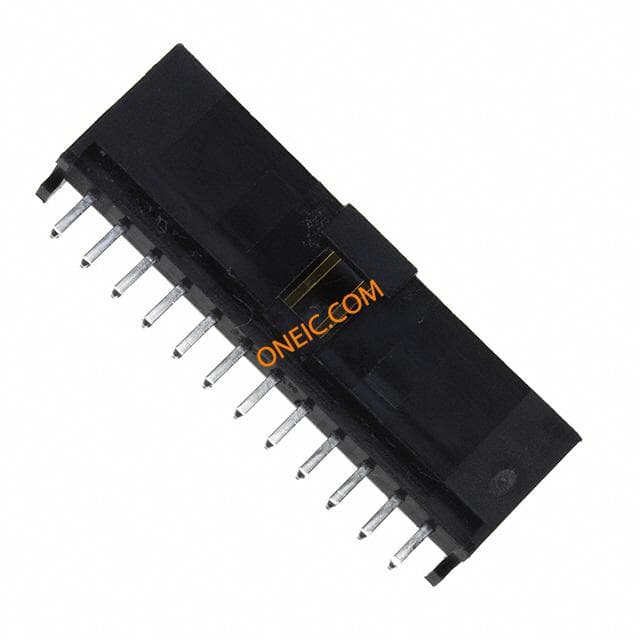

90136-1212
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 12POS .100" STR GOLD Molex 90136 Series 2.54mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 12P V SR SHRD AU-E HEADER, VERTICAL, 1ROW, 12WAY Molex C-GRID III 系列 2.54mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A

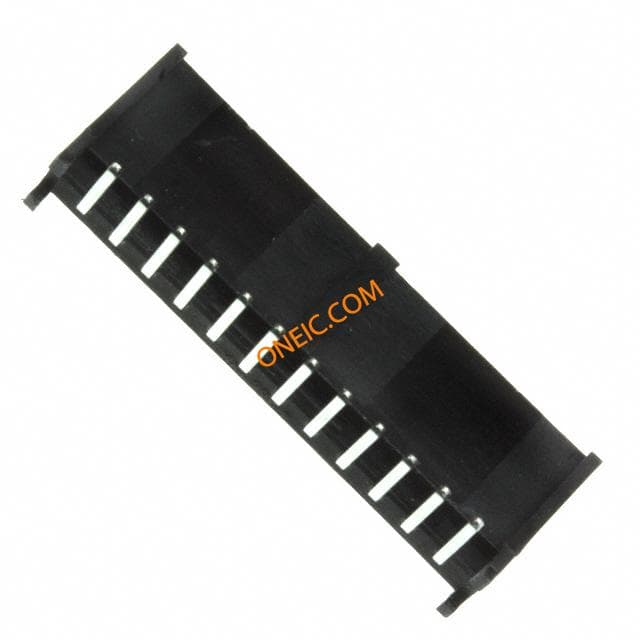

90136-2212
