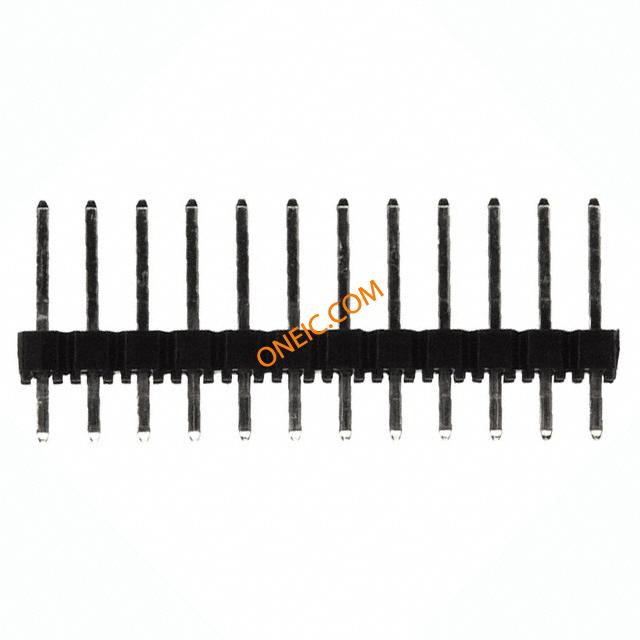

0901200132
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 12POS .100" STR TIN |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 | 最大额定电流 | 3/Contact |
| 最小输入电压 | 350V | ||
机械参数
| 颜色 | Black | 深度 | 2.54 |
| 间距 | 0.100" (2.54mm) | 高度 | 9.25 |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 总长度 | 30.48 | 触点数 | 12 |
| 位数 | 12 | 接触长度 - 配合 | 0.266" (6.75mm) |
| 接触镀层厚度 | 160µin (4.06µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
相关型号

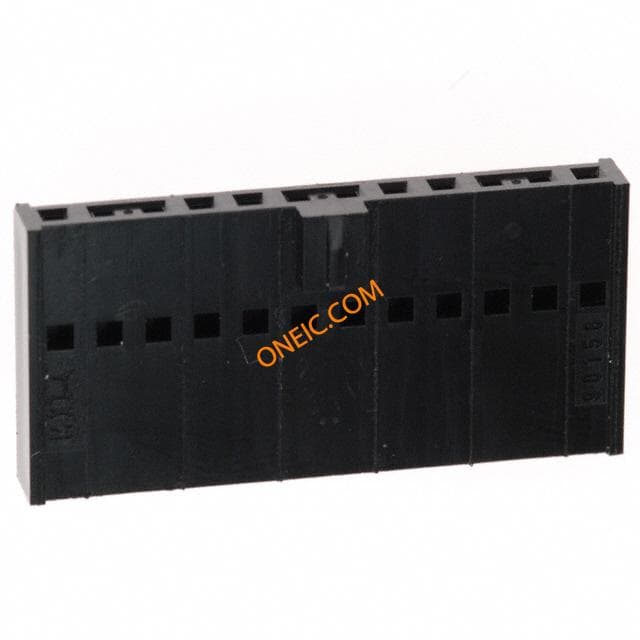

90156-0152
molex
Conn Housing RCP 12 POS 2.54mm Crimp ST Bag CONN HOUSING 12POS .100" CRIMP 12 way single row locking housing Headers & Wire Housings 2.54MM CGRIDIII HSG 12P SR CRIMP 2.54mm Pitch C-Grid III™ Crimp Housing Single Row, 12 Circuits HOUSING FRICTION LOCK, 12WAY Molex C-GRID III 系列 2.54mm 节距 12 路 直 母 压接连接器外壳
90148-1112
molex
Conn Socket Strip RCP 12 POS 2.54mm Solder RA Thru-Hole Tube CONN RECEPT HORIZ 12POS .100 PCB Headers & Wire Housings C-Grid PCB Conn SR H Horz Poly Tn-A 12Ckt

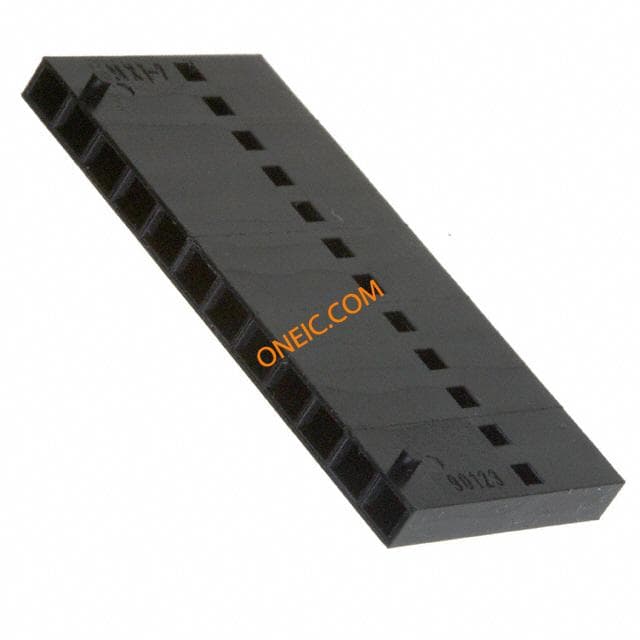

90123-0112
