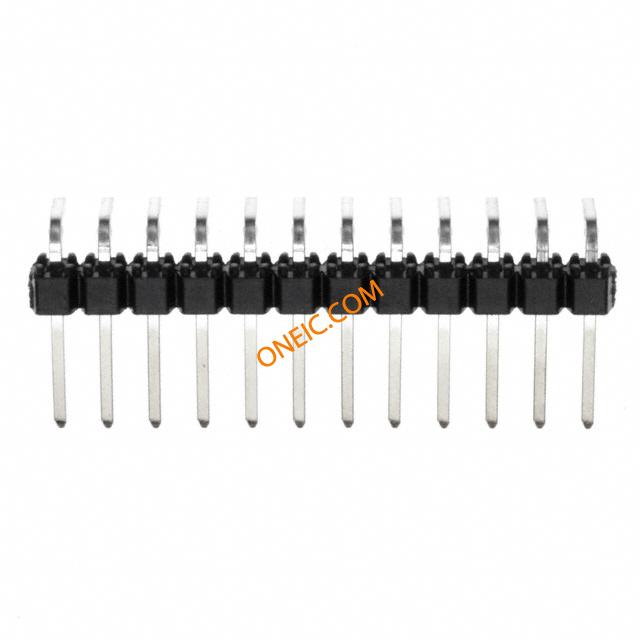

90121-0772
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 12POS .100" R/A GOLD Molex 90121 Series 2.54mm Pitch 12 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 12P R/A SR SEL AU Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tray HEADER, RIGHT ANGLE, 1ROW, 12WAY Molex C-GRID III 系列 2.54mm节距 12路 (1排) 直角 引脚管座, 焊接端接, 3A , 通孔 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901210772 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 600 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 额定电压 | 350 V | 极数 | :12 |
| 工作电压 | :350V | 接触电阻 | :20mohm |
| 最大额定电流 | 3A | 绝缘电阻 | :5000Mohm |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 重量 | 0.009 | 材料（通用） | :Glass Filled Polyester UL94V-0 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 12 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 12 |
| 接触长度 - 配合 | 0.266" (6.75mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | :Header |
| 系列 | 90121 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | :125°C | ||
文档与媒体
相关型号
