点击放大查看

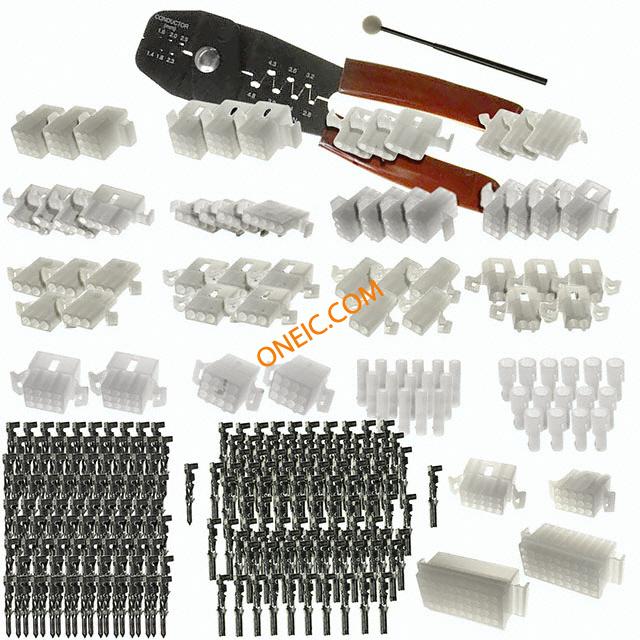

76650-0012
| 制造商 | Molex, LLC |
| 描述 | Panel Mount Plug And Receptacle kit, With Extraction And Preimum Crimp Tool KIT CONN STD .062" SERIES Pin & Socket Connectors .062 CONNECTOR KIT PREM CRIMPTOOL 288PC Kit Description:Panel Mount Plug and Receptacle, with Extraction and Preimum Crimp ToolKit Category:Wire to WireSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:288 .062IN PWR CONNECTOR KIT PANEL MNT PLUG& RECEPT, W/ EXTRACTION & CRIMP TOOLS |
| 分类 |
商业参数
| 标准包装规格 | 1 | 零件号别名 | 0766500012 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 250 V | 额定电压 | 250 V |
| 最大额定电流 | 5 A, 4 A | ||
机械参数
| 间距 | 3.68 mm | 包装方式 | Plastic Box with Bin Guide |
| 导线线规 | 24-18 | 行程角度 | Panel Mount/FreeHanging |
| 连接器类型 | Plug and Receptacle | 安装样式 | Wire |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 48 |
| 线规或范围 - AWG | 24-18 | ||
产品信息
| 系列 | 76650 | 值 | 288 pcs - Assorted 1 ~ 6, 9, 12, 15, 36 Circuit Plugs, Receptacle, 24 ~ 18 AWG Pins, Sockets |
| 套件类型 | Circuit Plug, Receptacle | 制造商全称 | 76650 |
| 产品子类型 | Kits | 配置 | Wire-to-Wire |
