03-06-1091
| 制造商 | Molex, LLC |
| 描述 | Pin & Socket Connectors 9 CIRCUIT RECEPTACLE Conn Housing RCP 9 POS 3.68mm Crimp ST Cable Mount Bag RECEPTACLE, 9WAY SEE 863-1417 50-36-1871 |
| 分类 |
对参数有疑问？问 AI 助手
合规参数
| RoHS | RoHS Compliant Part | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 认证机构标志 | CSA, UL, TUV |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 最大额定电流 | :5A | ||
机械参数
| 颜色 | Natural | 间距 | :3.68mm |
| 重量 | 0.00252 | 材料（通用） | :PA Polyamide (Nylon 66) |
| 端接方式 | Crimp | 释放力 | :4.45N |
| 行程角度 | Straight | 排数 | :3 |
| 插入力 | :6.22N | 面板厚度 | :1.52mm |
| 壳体材料 | Nylon 6/6 | 总长度 | 0.78 " |
| 连接器颜色 | :Natural | 触点数 | 9 |
| 位数 | :9 | 安装孔直径 | 0.65×0.552 " |
产品信息
| 类型 | Panel Socket | 连接器性别 | :Receptacle |
| 系列 | :MicroFit | 制造商全称 | 1625 Series |
| 适用产品/相关产品 | :Plug & Receptacle Contacts | ||
环境参数
| 工作温度 | :+105°C | ||
文档与媒体
PDF 文档
相关型号
76650-0012
molex
Panel Mount Plug And Receptacle kit, With Extraction And Preimum Crimp Tool KIT CONN STD .062" SERIES Pin & Socket Connectors .062 CONNECTOR KIT PREM CRIMPTOOL 288PC Kit Description:Panel Mount Plug and Receptacle, with Extraction and Preimum Crimp ToolKit Category:Wire to WireSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:288 .062IN PWR CONNECTOR KIT PANEL MNT PLUG& RECEPT, W/ EXTRACTION & CRIMP TOOLS
¥643.6132
详情

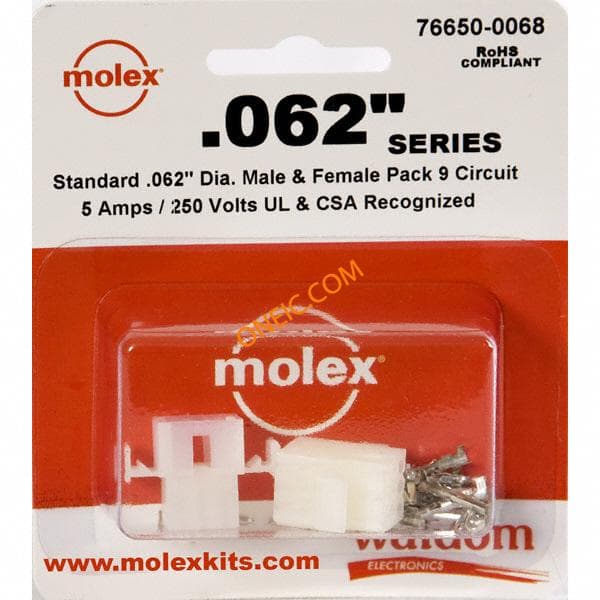

76650-0068
