03-06-1038
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 3 POS 3.68mm Crimp ST Bag Molex 3.68mm 3 Way 1 Row Straight Female Housing Receptacle Pin & Socket Connectors 3 PIN RECEPTACLE PLUG & SOCKET HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; MINI; RECEPT W/MNT EAR & DTENT WNDW; 3 CIRC Molex STANDARD .062" 系列 3.68mm 节距 3 路 直 母 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003061038 1625-3R4 3061038 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 7500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
| 认证机构标志 | CSA, UL, TUV | 材料阻燃等级 | UL94V-2 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 颜色 | :Natural | 间距 | 3.68 mm |
| 高度 | 5.1mm | 重量 | 0.00001 |
| 端接方式 | Crimp | 基体材料 | :PA Polyamide (Nylon) 6/1 |
| 安装类型 | Straight | 行程角度 | Straight |
| 安装样式 | Panel | 排数 | 1 |
| 壳体材料 | Nylon | 总长度 | 0.78 " |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 位数 | :3 |
| 安装孔直径 | 0.65×0.265 " | ||
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 1625 | CAD图纸 | 3D CAD Model |
| 制造商全称 | 1625 Series | 产品子类型 | Receptacle Housings |
| 适用产品/相关产品 | :1560, 1561, 1786, 1854 Crimp Terminals | ||
环境参数
| 工作温度 | -40 to +105 °C | ||
相关型号
76650-0012
molex
Panel Mount Plug And Receptacle kit, With Extraction And Preimum Crimp Tool KIT CONN STD .062" SERIES Pin & Socket Connectors .062 CONNECTOR KIT PREM CRIMPTOOL 288PC Kit Description:Panel Mount Plug and Receptacle, with Extraction and Preimum Crimp ToolKit Category:Wire to WireSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:288 .062IN PWR CONNECTOR KIT PANEL MNT PLUG& RECEPT, W/ EXTRACTION & CRIMP TOOLS

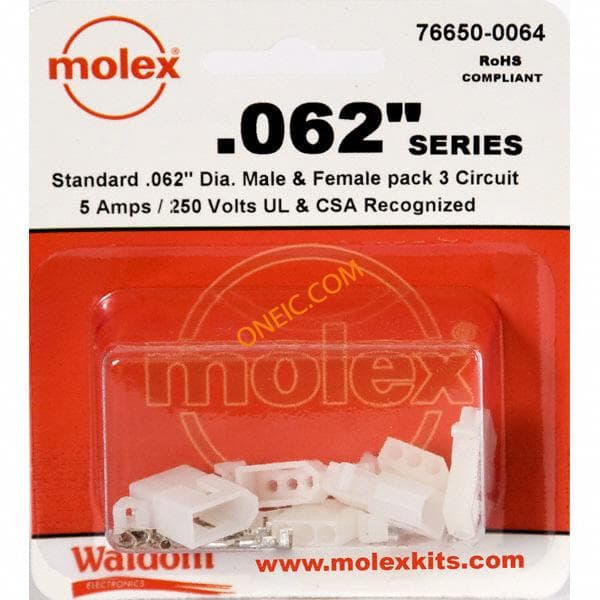

76650-0064
