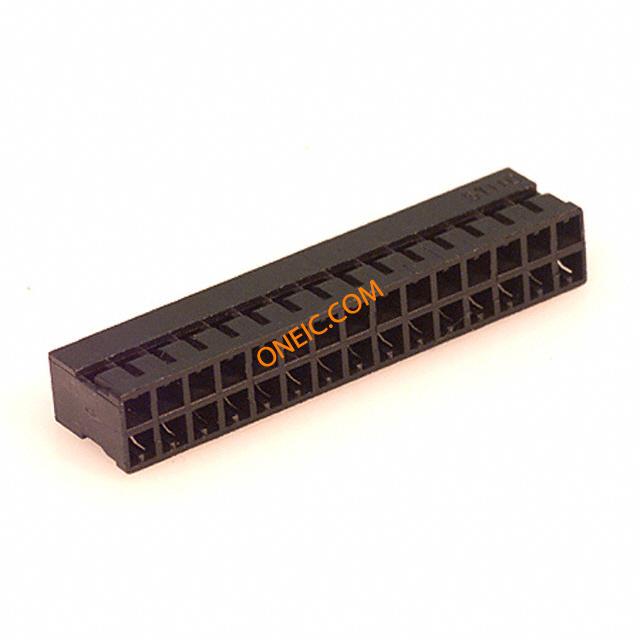

51110-3050
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 30 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 30POS Housing 2.00mm Milli-Grid,30w, Headers & Wire Housings 30CIR CRIMP HOUSING Molex MILLI-GRID 系列 2 行 2mm 节距 30 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0511103050 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 500 mA | 连接器类型 - 电压输入 | Female |
机械参数
| 颜色 | Black | 深度 | 7mm |
| 间距 | 0.079" (2.00mm) | 宽度 | 4.8mm |
| 长度 | 30.2mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.079" (2.00mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 排数 | 2 |
| 壳体材料 | PET | 触点数 | 30 |
| 接触件端接 | Crimp | 位数 | 30 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Crimp Housing |
| 连接器性别 | Female | 系列 | 51110 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 基础产品编号 | 51110 | 应用细节 | Signal, Wire-to-Board |
| 适用产品/相关产品 | Milli-Grid Connector | ||
