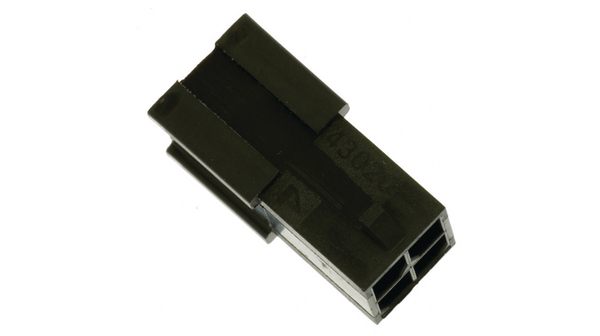

43020-0401
| 制造商 | Molex, LLC |
| 描述 | 3.0mm,MicroFit,plug,2row,freehang,4w Headers & Wire Housings PLUG FREE HNG 4P DUAL ROW Conn Housing M 4 POS 3mm Crimp ST Cable Mount Bag HOUSING, PLUG, DUAL ROW, 4 WAY, NYLON PLUG W/EARS; FREE HANGING; 4 CIRCUITS Male contact housing dual row Pitch3 mm Poles 2 x 2 Micro-Fit, 43020-0401, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 4 路 直 公 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430200401 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2500 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | ||
电气参数
| 额定电压 | 350 V | 最大额定电流 | 5 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 深度 | 16.89mm | 间距 | 3mm |
| 宽度 | 9.65mm | 重量 | 0.006 |
| 安装类型 | Straight | 排数 | 2 |
| 壳体材料 | PBT | 触点数 | 4 |
| 位数 | :4 | ||
产品信息
| 类型 | Plug Housing | 连接器性别 | Male |
| 系列 | 43020 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 应用细节 | Power, Wire-to-Wire |
| 适用产品/相关产品 | Micro-Fit 3.0 Plug | ||
