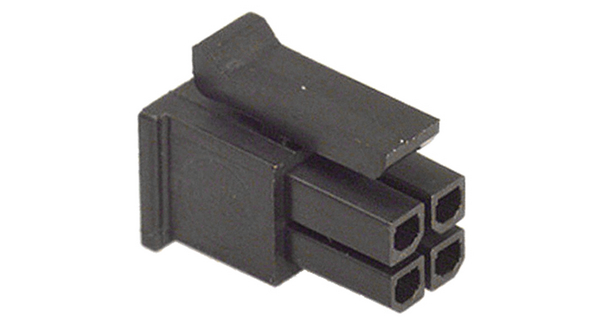

43025-0400
| 制造商 | Molex, LLC |
| 描述 | 4 way dual row receptacle,5A Headers & Wire Housings RECEPTACLE 4P DUAL ROW Conn Housing RCP 4 POS 3mm Crimp ST Cable Mount Bag RECEPTACLE, FREE, 4WAY Receptacle; 4; Dual; 0.118; Female; Polyester; Black; UL 94V-0 Female contact housing dual row Pitch3 mm Poles 2 x 2 Micro-Fit, 43025-0400, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 4 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430250400 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 600 V | 工作电压 | :250V |
| 接触电阻 | :10mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 5 A | ||
机械参数
| 深度 | 14mm | 间距 | 3mm |
| 宽度 | 11.56mm | 长度 | 6.85mm |
| 重量 | 0.052 | 材料（通用） | :Polyester |
| 安装类型 | Straight | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | PET |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 位数 | :4 |
产品信息
| 连接器性别 | Female | 系列 | 43025 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Micro-Fit 3.0 Receptacle | ||
文档与媒体
相关型号
43045-0419
molex
Conn Wire to Board HDR 4 POS 3mm Solder ST SMD T/R Molex 43045 Series 3mm Pitch 4 Way 2 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings 4 CKT VERT SMT HDR Conn Wire to Board HDR 4 POS 3mm Solder ST SMD Embossed T/R HEADER, 3MM, 4WAY MICRO FIT 3.0 V SMT/NAIL DR 15AU 4CKT MICROFIT3.0VSMT/NAILDR15AU4CKT Molex MICRO-FIT 3.0 系列 3mm节距 4路 (2排) 直 PCB 针座, 焊接端接, 5A , 表面安装
43030-0010
molex
Contact F Crimp ST Cable Mount Bag Female crimp contact,26-30 awg Headers & Wire Housings FEMALE TERM 26-30 Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 30-26AWG CRIMP SOCKET, 26AWG, PK100 Micro-Fit 3.0 Crimp Term., Socket, w/Plated Tin/Brass Alloy Contact, 26-30 AWG, B Crimp socket Female 30...26 AWG, 43030-0010, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点
43030-0003
molex
Contact SKT Crimp ST Cable Mount Reel Crimp terminal,MicroFit,female,20-24awg Headers & Wire Housings MF 3.0 TERM 20-24G F Reel of 12000 CONTACT, SOCKET, 24-20 AWG, CRIMP Connector Contact,SKT,CRIMP Terminal CRIMP, RECEPTACLE, 24-20AWG, REEL Micro-Fit 3.0 Connectors 20-24 TERMINALREEL 12000 Micro-Fit3.0Connectors20-24TERMINALREEL12000 Crimp socket, reel Female 24...20 AWG, 43030-0003, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀金触点
43030-0007
molex
Contact F Crimp ST Cable Mount Bag Female crimp contact,20-24 awg Headers & Wire Housings FEMALE TERM 20-24 Contact SKT Crimp ST Cable Mount Bag CRIMP SOCKET, PK100,20AWG CONTACT, CRIMP, SOCKET, 24-20AWG Micro-Fit 3.0 Crimp Terminal, Socket, with Tin (Sn) Plated Tin/Brass Alloy Contac Crimp socket Female 24...20 AWG, 43030-0007, Molex Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀锡镀镍触点
430450409
molex
Conn Wire to Board HDR 4 POS 3mm Solder RA SMD T/R HEADER, RIGHT ANGLE, SMD, DUAL ROW, 4WAY 04P MICRO-FIT HEAD SMT W/NAILS
430450418
molex
Conn Wire to Board HDR 4 POS 3mm Solder ST SMD T/R 04P HEADER SMT W FITTING NAILS Conn Wire to Board HDR 4 POS 3mm Solder ST SMD Embossed T/R HEADER, SMT, VERTICAL, DUAL ROW, 4 WAY
43030-0006
molex
Contact SKT Crimp ST Cable Mount Reel Crimp,fem,Au plated,phos,26-30 AWG,reel Headers & Wire Housings MF 3.0 TERM 26-30G F Reel of 12000 TERMINAL, 26-30AWG, MICRO-FIT 3.0 CONTACT, CRIMP, PIN, 30-26AWG, REEL Molex MICRO-FIT 3.0 系列 母 压接接线端子, 压接, 镀金镀镍触点
43045-0412
Molex Connector Corporation
CONN HEADER 4POS 3MM VERT TIN Headers & Wire Housings 4 CKT VERT HEADER Conn Power HDR 4 POS 3mm Solder ST Thru-Hole 4 Terminal 1 Port Tray HEADER, VERTICAL, 4WAY PLUG & SOCKET CONNECTOR, HEADER, 4POS, 3MM Microfit 3.0 Vert Thrhole DR Hdr Tin4Ckt Pin header dual row Pitch3 mm Poles 2 x 2 Micro-Fit, 43045-0412, Molex Molex MICRO-FIT 3.0 系列 3mm节距 4路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔

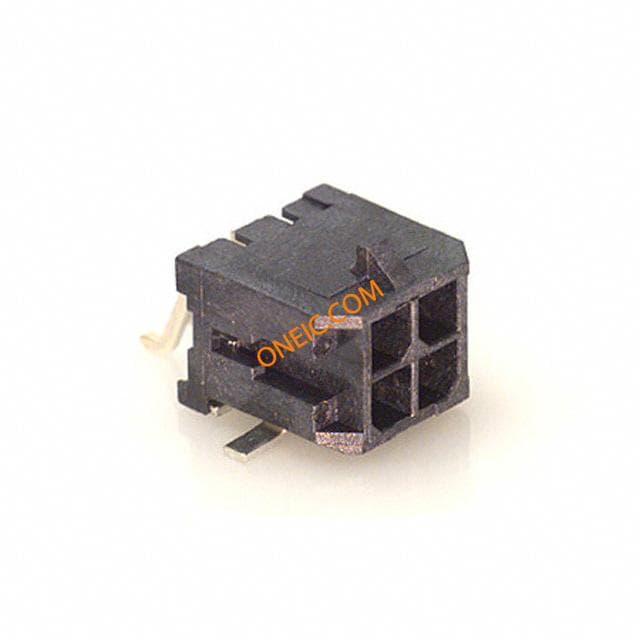

43045-0411
