点击放大查看

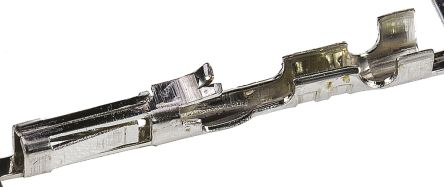

16-02-0069
| 制造商 | Molex, LLC |
| 描述 | Crimp term,fem,tin plated,24-30AWG,reel Headers & Wire Housings SL TERM 22-30G FEM Reel of 20000 Contact SKT Crimp ST Cable Mount Reel CONTACT, CRIMP, RECEPTACLE, 30-24AWG CRIMP, RECEPTACLE, 30-24AWG, REEL Molex SL 系列 母 压接接线端子, 压接, 镀锡镀镍触点 |
| 分类 |
商业参数
| 商标名 | C-Grid, SL | 零件号别名 | 0016020069 16-02-0069-PB 70058-0004 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 20000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 接触电阻 | 15mΩ |
| 最大额定电流 | 3 A | ||
机械参数
| 重量 | 0.000001 | 包装方式 | Reel |
| 导线线规 | 30-24 | 端接方式 | Crimp |
| 接触镀层 | Tin over Nickel | 触头材料 | Phosphor Bronze |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | :Crimp | 线规或范围 - AWG | :30AWG |
产品信息
| 连接器性别 | Female | 系列 | 70058 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :70066 & 70450 SL Crimp Terminal Housings |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
