点击放大查看

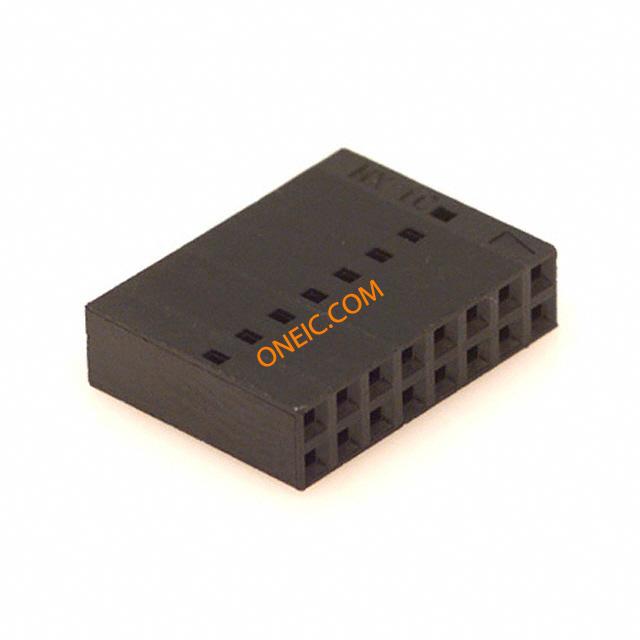

22-55-2161
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 16POS .100 DUAL Headers & Wire Housings HSG 16P DUAL ROW NON-POLARIZED Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Bag WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM DUAL ROW CRIMP CONNECTOR HOUSE; 16 CIRCUITS Molex SL 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0022552161 70450-0007 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 量程（°/s） | :MOLEX - SL 70450 Series | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | :- | 安装样式 | Wire |
| 排数 | 2 | 触头材料 | :- |
| 壳体材料 | Polyester | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 16 |
| 接触件端接 | Crimp | 位数 | 16 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Receptacle |
| 系列 | 70450 | 产品子类型 | Receptacles / Sockets - Housings |
